  • Calpeda IMAT 2MXH406-TTA-24 Twin Pump Booster Set 415v 6bar #1714

    ThePumpDealer
    01803 220416
    2 year guarantee on all of our new pumps
    6 Month guarantee on all of our used pumps
    Please call us for free advice on replacement
    We also take card payment over the phone
    We buy and sell new and unused pumps

    Can deliver for next day if ordered before 4pm
    Same day delivery possible please call for a quote
    MAJORITY OF OUR PUMPS ARE NEW, UNUSED, NEVER BEEN FITTED SURPLUS STOCK



    WORLDWIDE DELIVERY AVAILABLE

    Internationally for free we ship to:
    Aland Islands, Armenia, Austria, Belarus, Belgium, Bosnia And Herzegovina, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Faroe Islands, Finland, France, Georgia, Germany, Greece, Guernsey, Hungary, Iceland, Ireland, Isle Of Man, Italy, Jersey, Latvia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Republic Of, Moldova, Republic of, Monaco, Montenegro, Netherlands, Norway, Poland, Portugal, Romania, San Marino, Serbia, Slovakia, Slovenia, Spain (50 of 52 provinces), Sweden, Switzerland
    For Free under 30kg

    2-3 Day shipping internationally


    Condition: Used, removed from working environment



    Six month Guarantee on this item
    please see spec here

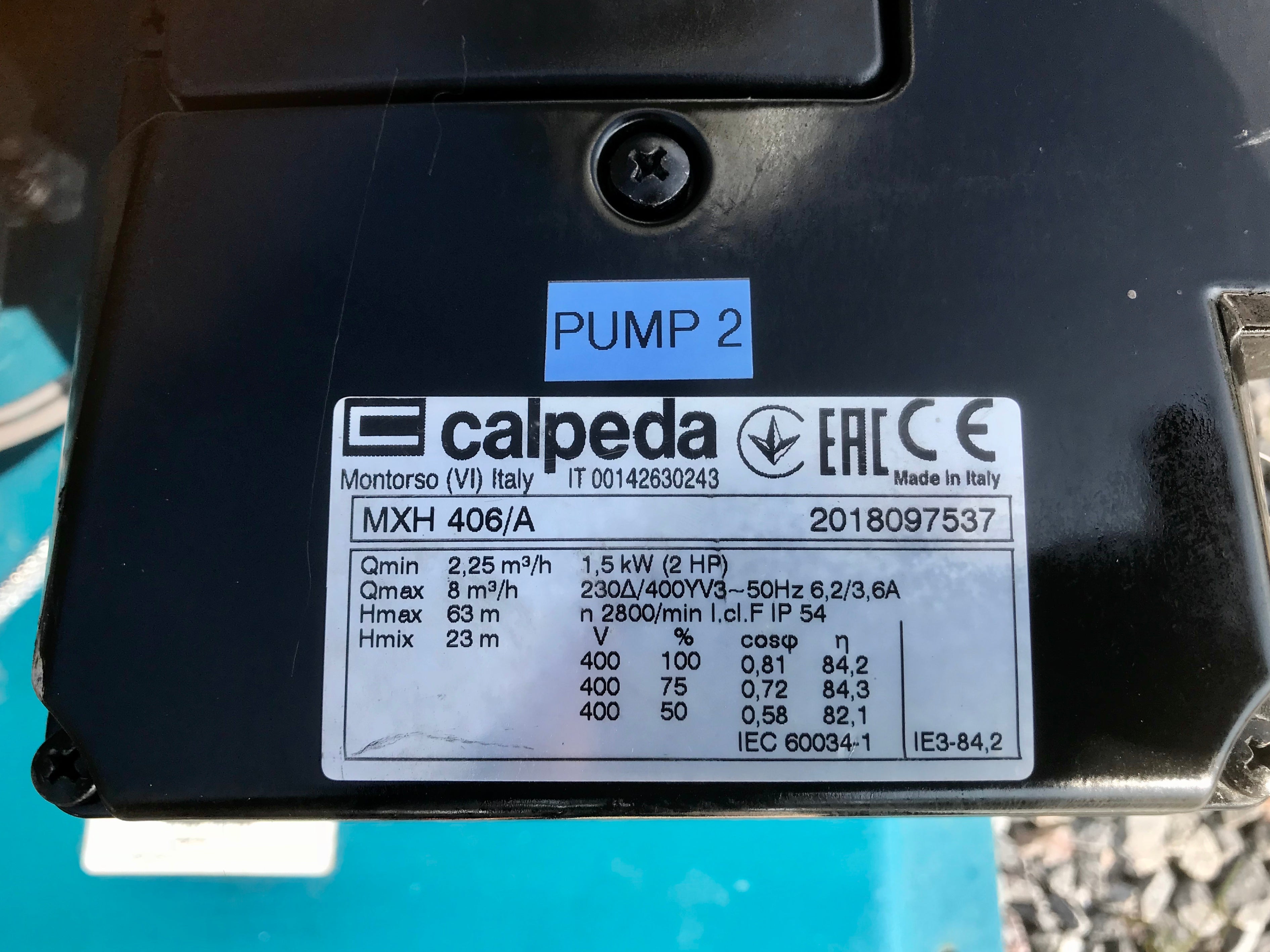

    Per pump:

    Qmin:2.25 m3/h

    Qmax: 8m3/h

    Hmax: 63m

    Hmin: 23m

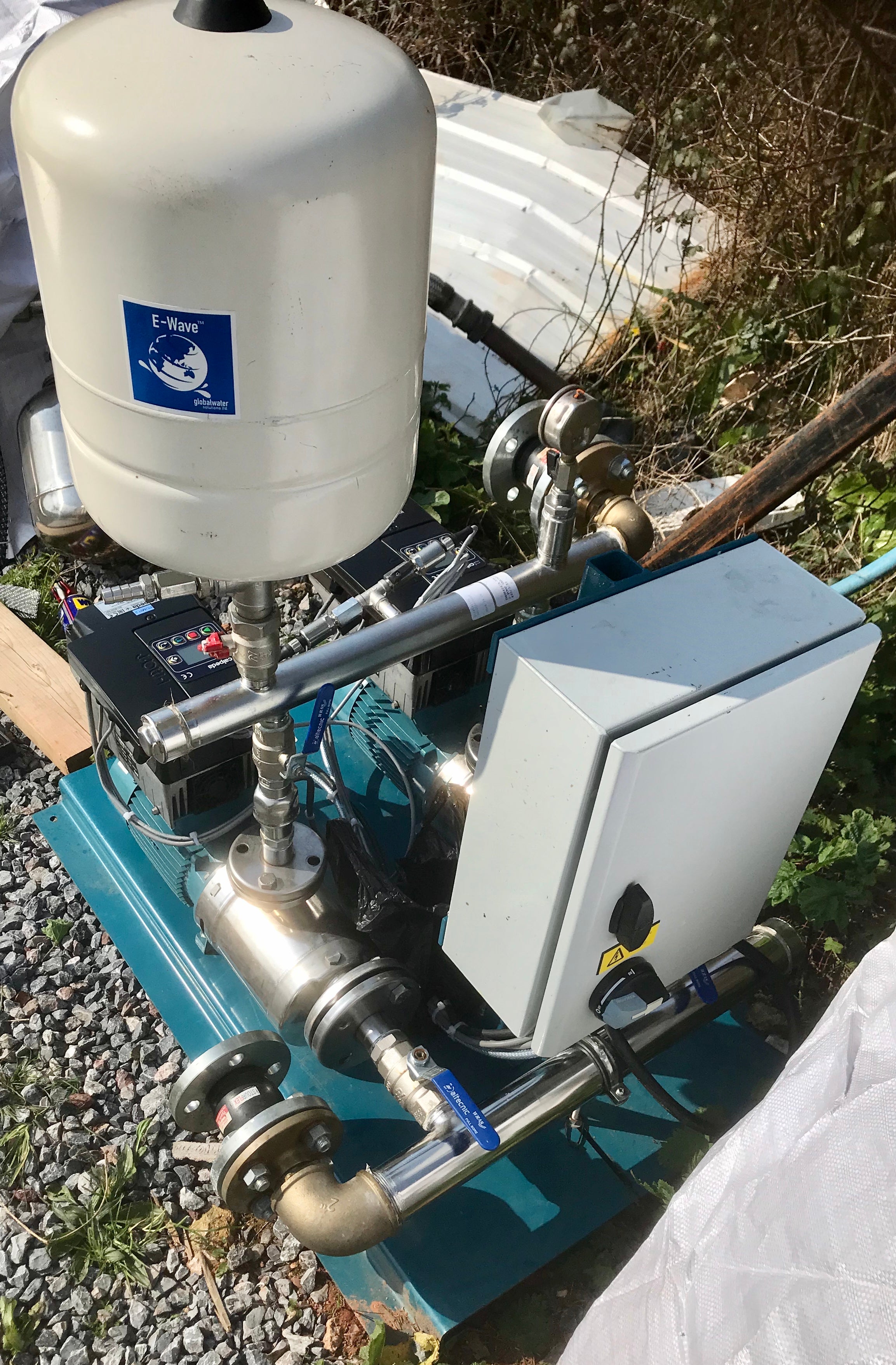

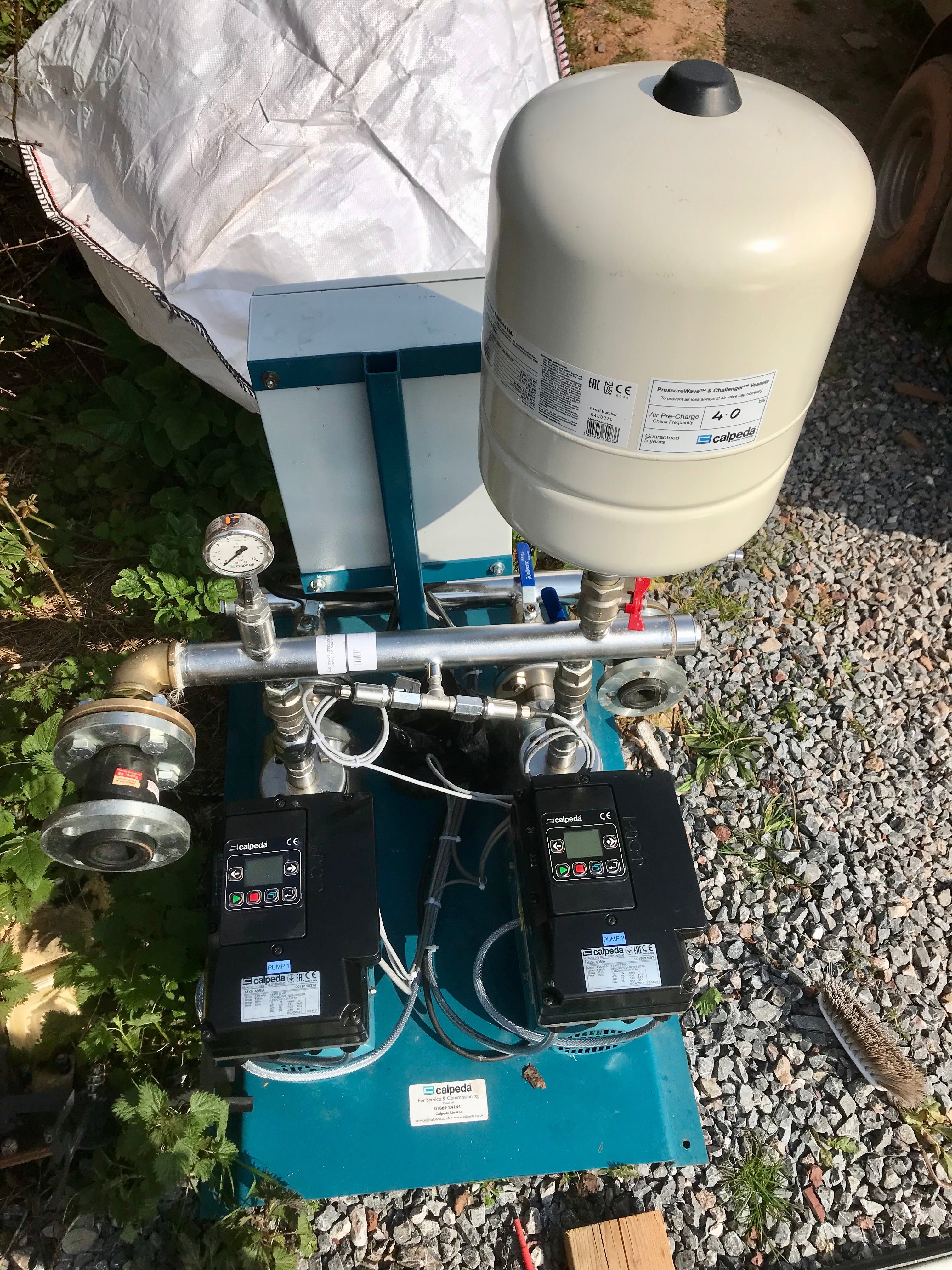

    A twin pump variable speed cold water booster set featuring two IMAT variable speed controllers with stainless steel MXH pumps.

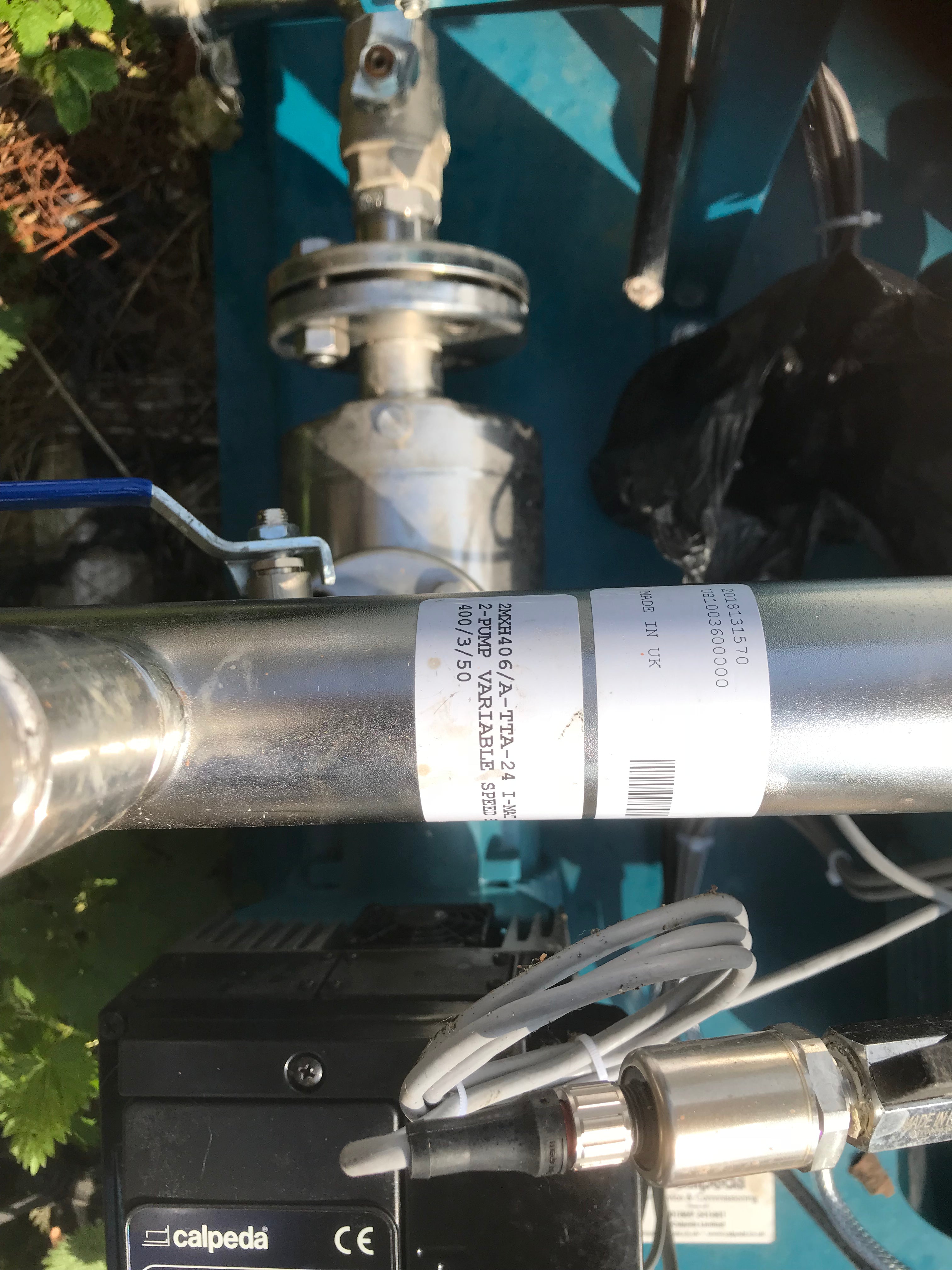

    This booster set comes with I-MAT frequency converters, ball valve and non return valve on suction side, ball valve and pressure gauge on delivery side. Suction and delivery manifolds in stainless steel AISI 304, a 24 litre pressure vessel and has 2" screwed inlet and 11/2" screwed outlet.

    Pumps
    MXH all stainless steel horizontal multi-stage centrifugal pumps (WRAs Approved).

    Motors
    Aluminium 2-pole (2900 rpm) induction motors, 400/3/50, class F insulation, IP54 and IP55 protection.

    System
    One piece stainless steel manifolds, and brass fittings with WRAs approved valves, WRAs approved GWS accumulator all mounted on a mild steel powder coated baseplate, fully wired and tested.

    Operating Conditions

    • Fluid:                     Clean Cold Water
    • Control:                 IMAT variable speed via Pressure Transducer, Differential Transducer or Temperature Transducer
    • Fluid Temp:           Max 25 Deg.C
    • Max Press:           10 bar Operational Pressure
    • Air Amb:                Max 40 Deg.C
    • Rated:                  Continuous Service

    Pressure vessels (on demand)

    Cylindrical with capacity 24 litres, membrane type, air precharged.

    Applications
    As pressure boosting pump for central water systems with low pressure.
