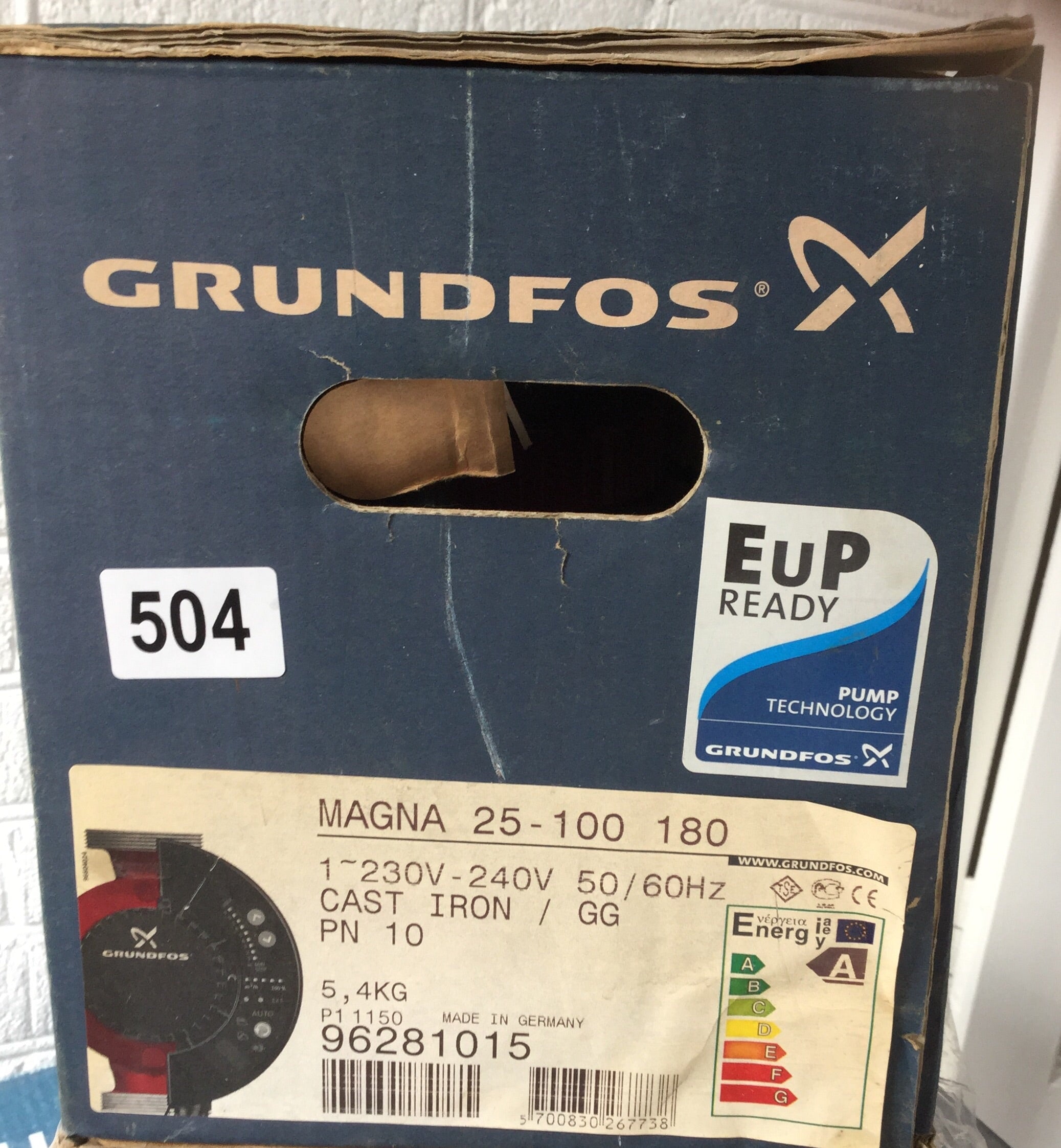

Grundfos MAGNA UPE 25-100 Variable Speed Pump 240V 96281015 #504
£375.00GBP
6 Month guarantee on all of our used pumps
Please call us for free advice on replacement
We also take card payment over the phone
We buy and sell new and unused pumps
Can deliver for next day if ordered before 4pm
Same day delivery possible please call for a quote
MAJORITY OF OUR PUMPS ARE NEW, UNUSED, NEVER BEEN FITTED SURPLUS STOCK
Please call us for free advice on replacement
We also take card payment over the phone
We buy and sell new and unused pumps
Can deliver for next day if ordered before 4pm
Same day delivery possible please call for a quote
MAJORITY OF OUR PUMPS ARE NEW, UNUSED, NEVER BEEN FITTED SURPLUS STOCK
Internationally we ship to:
Aland Islands, Armenia, Austria, Belarus, Belgium, Bosnia And Herzegovina, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Faroe Islands, Finland, France, Georgia, Germany, Greece, Guernsey, Hungary, Iceland, Ireland, Isle Of Man, Italy, Jersey, Latvia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Republic Of, Moldova, Republic of, Monaco, Montenegro, Netherlands, Norway, Poland, Portugal, Romania, San Marino, Serbia, Slovakia, Slovenia, Spain (50 of 52 provinces), Sweden, Switzerland
For Free under 30kg
Condition: new in original box
Specifications
Product name MAGNA 25-100
Product No 96281015
EAN number 5700830267738
Technical
Head max 100 dm
TF class 110
Approvals on nameplate CE,TSE,GOST2
Materials
Pump housing Cast iron
Pump housing EN-JL1040
Pump housing ASTM 35 B - 40 B
Impeller Composite, PES
Installation
Range of ambient temperature 0 .. 40 °C
Maximum operating pressure 10 bar
Pipe connection G 1 1/2
Port-to-port length 180 mm
Liquid
Pumped liquid Water
Liquid temperature range 2 .. 95 °C
Liquid temperature during operation 60 °C
Density 983.2 kg/m³
Electrical data
Power input - P1 10 .. 185 W
Mains frequency 50 Hz
Rated voltage 1 x 230-240 V
Maximum current consumption 0.09 .. 1.25 A
Enclosure class (IEC 34-5) X4D
Insulation class (IEC 85) F
Controls
Pos term box 3H
Others
Energy (EEI) 0.21
Net weight 4.22 kg
Gross weight 5.4 kg
please see product spec here
