Grundfos Magna1 32-60 180 Circulator Pump 99221234 2022 #4423 USED

GRUNDFOS MAGNA1 32-60 180 – Circulator Pump 99221234 (2022) #4423 (USED)

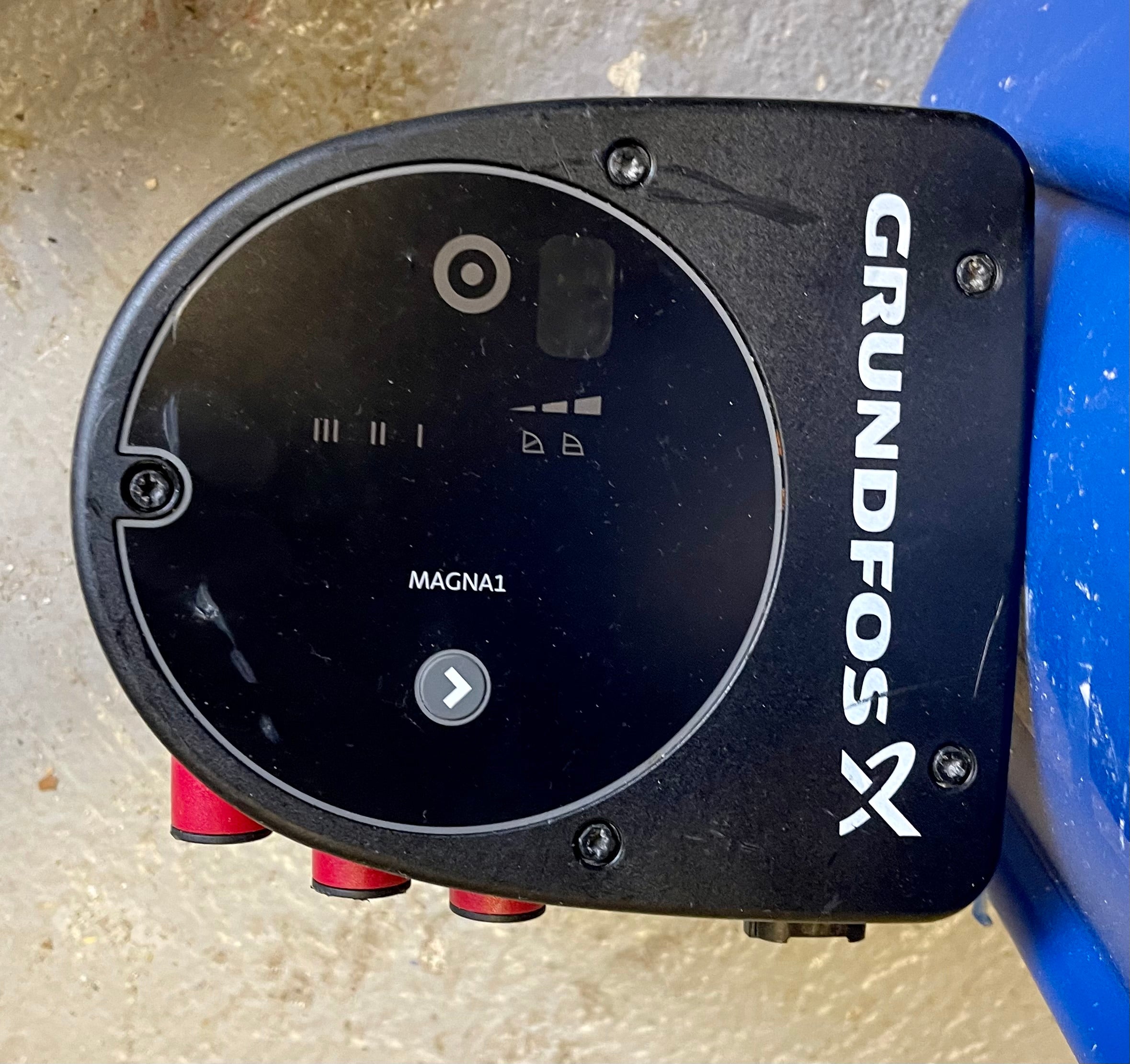

This listing is for a Grundfos MAGNA1 high-efficiency wet-rotor circulator pump. MAGNA1 is designed as a simple, reliable and maintenance-free solution for heating and cooling circulation where basic control and monitoring are required without the complexity of advanced building management integration.

The pump features a permanent-magnet synchronous motor with integrated frequency converter, providing significantly higher efficiency than traditional fixed-speed circulators and ensuring compliance with EuP energy regulations.

Condition: supplied as a used pump. The unit shows cosmetic wear consistent with previous service use. It is inspected prior to dispatch and confirmed operational.
Guarantee: supplied with our 6-month guarantee.

• Pump type: MAGNA1 wet-rotor electronically controlled circulator
• Connection: G 2" union (PN10)
• Port-to-port length: 180 mm
• Electrical supply: 1 × 230 V, 50 / 60 Hz
• Motor: 4-pole permanent-magnet synchronous (PM)
• Control: integrated frequency converter with user interface
• Communication: Grundfos GO Remote compatible

Need help confirming suitability?
Call us on 01803 220416 for technical advice.

Manufacturer product page

Full technical specifications and performance curves can be viewed on the official Grundfos product page:
View Grundfos MAGNA1 32-60 180 (99221234) – Variant details

Frequently Asked Questions

Why choose a MAGNA1 instead of a MAGNA3?

The MAGNA1 is intended for users who need a high-efficiency, reliable circulator without advanced BMS features. Compared with MAGNA3:

• MAGNA1 offers simpler setup and operation with lower cost
• Ideal where only basic control modes are required
• Still provides major energy savings via PM motor and integrated drive
• Includes fault relay and digital start/stop input

Choose MAGNA3 when you need:

• Advanced flow estimation and heat-energy monitoring
• Full building management communication (BACnet/LON)
• Multi-pump cascade and advanced control functions

For straightforward HVAC circulation where simplicity and efficiency are the priority, MAGNA1 is usually the better value choice.

Is the pump maintenance-free?

Yes. MAGNA1 uses a canned-rotor wet-rotor design with no mechanical seal, eliminating routine seal replacement and providing very quiet operation.

Can this replace older fixed-speed pumps?

Yes — subject to hydraulic match. The variable-speed electronics in a MAGNA1 can provide major energy savings compared with a fixed-speed pump, but system duty and connection type should be confirmed before replacement.

Are union tails included?

This model uses G 2" union connections. Union tails or mating fittings are not included unless specifically shown in the product photographs.

About Our Stock

Stock code: #4423
We specialise in supplying quality pumps and equipment. This unit is supplied as a used pump, inspected prior to dispatch and supplied with a 6-month guarantee.
