Grundfos DP10.50.15.2.50B (96104208) – 1.5kW 415V Submersible Drainage Pump (R 2") #3005

This listing is for a Grundfos DP portable submersible drainage pump for domestic and industrial applications. The pump features a multi-vane, semi-open impeller providing 10 mm free passage and is designed for clean and lightly contaminated water duties.

• Pump type: Grundfos DP drainage pump
• Impeller: multi-vane, semi-open – 10 mm free passage
• Discharge connection: R 2" outlet port
• Motor / starting: 3-phase with direct-on-line (DOL) starting
• Installation: suitable for temporary or permanent installation

Need help confirming suitability?
Call us on 01803 220416 for technical advice.

Manufacturer product page

Full technical details can be found on the official Grundfos product page:
View Grundfos DP10.50.15.2.50B (96104208) – Variant quotation

Key specifications (summary)

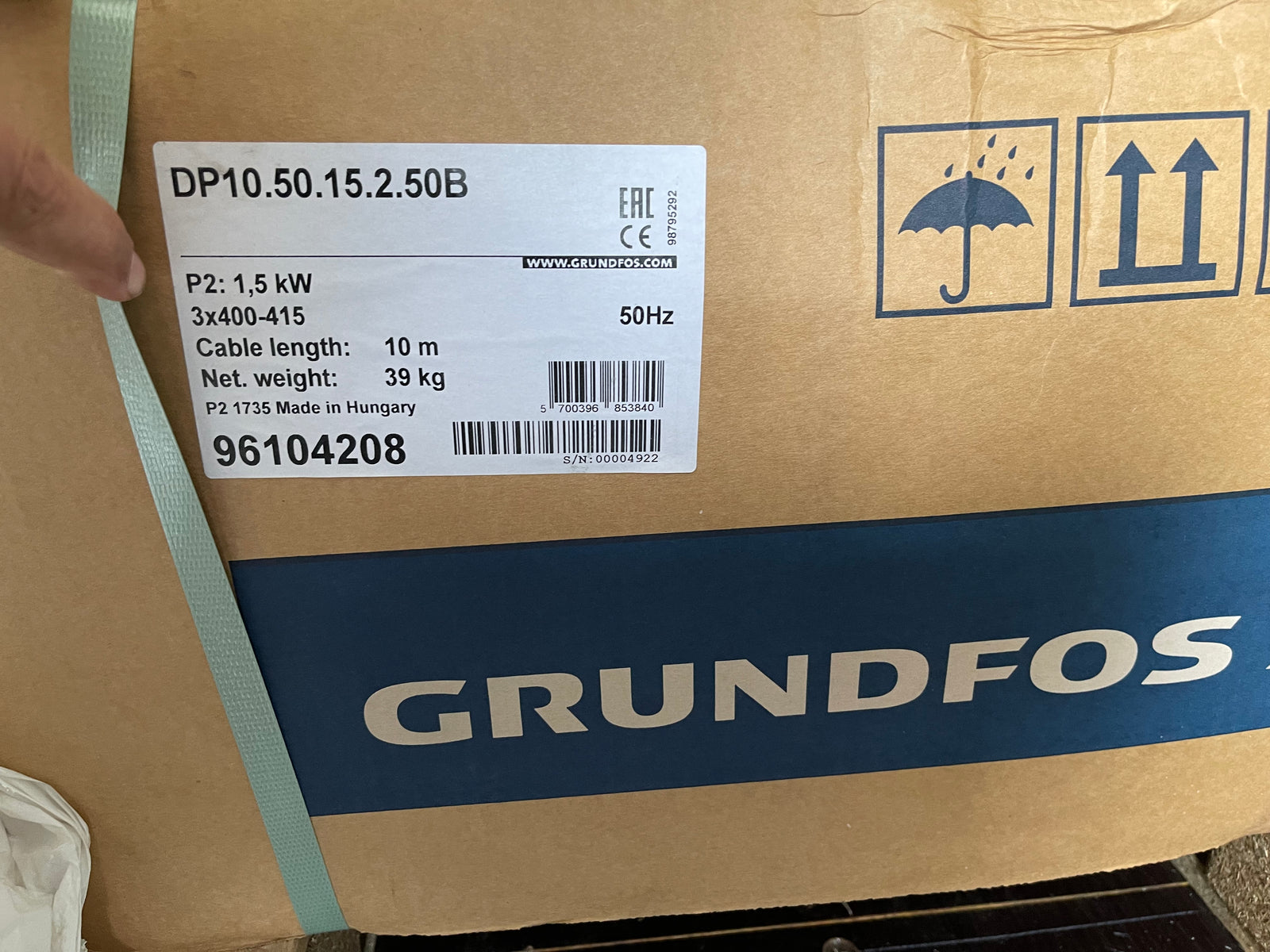

• Model: DP10.50.15.2.50B
• Grundfos product number: 96104208
• Rated motor output (P2): 1.5 kW
• Electrical supply / starting: 3 × 380–415 V, 50 Hz, direct-on-line (DOL)
• Motor: 2-pole
• Outlet: R 2"
• Free passage: 10 mm
• Maximum installation depth: 7 m

Applications

The DP pump is suitable for:

• Drainage and surface water
• Groundwater
• Industrial process water without solids and fibres

Construction & features

• Cast iron submersible pump with integrated 3-phase motor
• Intermediate oil chamber pre-filled with non-toxic special oil
• Cable plug hermetically sealed with polyurethane to help prevent water ingress via the cable
• Service clamp design for easy dismantling and field inspection without special tools
• Double cartridge shaft seal for quick replacement and reduced risk of incorrect installation
• Long-life bearings – deep-groove, greased-for-life
• Installation options: free-standing or on an auto-coupling system

Delivery & Shipping

• UK and international delivery available
• Next working day dispatch is often possible
• If delivery is time-critical, please call to confirm availability

Frequently Asked Questions

What does the model number mean?

DP – drainage pump range
10 – 10 mm free passage class
50 – outlet size class (R 2")
15 – 1.5 kW motor output
2 – 2-pole motor
50 – 50 Hz
B – product variant

What starting method does this pump use?

This pump is configured for direct-on-line (DOL) starting. A suitable three-phase starter/contactor and overload protection should be provided as part of the installation control equipment.

What discharge connection does this pump have?

This pump has a R 2" threaded discharge port. Standard threaded adaptors can be used to connect to existing pipework or hose arrangements as required.

What is a multi-vane, semi-open impeller?

A multi-vane, semi-open impeller provides an open flow path suitable for clean and lightly contaminated water. The design offers good hydraulic efficiency while allowing small particles (up to 10 mm) to pass without tight channels.

Can model numbers be interchanged?

Occasionally alternative DP codes can be used depending on duty and installation arrangement. Please call us for a recommendation before ordering if you are replacing a different model.

What is the maximum installation depth?

Maximum installation depth is 7 m.

Do accessories come fitted?

No. Auto-coupling sets, pipe adaptors and external controls are supplied separately.

About Our Stock

Stock code: #3005
We specialise in supplying new and unused surplus pumps. All units are inspected prior to dispatch and supplied with guarantee.
