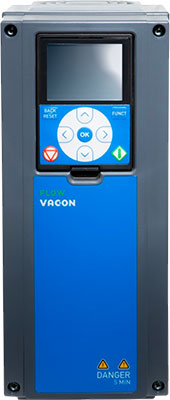

Vacon 100 Flow VACON0100-3L-0005-5-FLOW+IP54 2.2Kw/5.6Amp 3 Phase Input / 3 Phase Output IP54 inverter drive
£329.17GBP
inc VAT
Technical overview
About these figures
These figures provide simplified information for searching, filtering and initial comparison. They are not a complete specification. Exact details depend on the model and configuration.
Power rating: Usually the motor’s rated mechanical output (P2). Electrical input power (P1) is a different value. Check the product’s nameplate or manufacturer’s documentation to confirm which rating applies.
Outlet size: The nominal size class is expressed on a millimetre basis: for example, DN40 denotes a nominal 40 mm size. It does not specify the exact measured opening, connection type, thread, flange drilling or pressure rating.
Head and flow: Indicative figures describing the pump’s performance envelope, rather than a single operating duty point. Do not assume maximum flow is available at maximum head, or that every combination within the ranges is achievable. Minimum figures do not establish safe continuous operating limits. Consult the relevant performance curve.
Check the product description, nameplate and manufacturer’s documentation before selection or installation. Please contact us before purchasing if you need help confirming suitability or connection details.
| Shipping Weight | 10.0 kg |
6 Month guarantee on all of our used pumps
Please call us for free advice on replacement
We also take card payment over the phone
We buy and sell new and unused pumps
Can deliver for next day if ordered before 4pm
Same day delivery possible please call for a quote
MAJORITY OF OUR PUMPS ARE NEW, UNUSED, NEVER BEEN FITTED SURPLUS STOCK
Please call us for free advice on replacement
We also take card payment over the phone
We buy and sell new and unused pumps
Can deliver for next day if ordered before 4pm
Same day delivery possible please call for a quote
MAJORITY OF OUR PUMPS ARE NEW, UNUSED, NEVER BEEN FITTED SURPLUS STOCK
WORLDWIDE DELIVERY AVAILABLE
Internationally for free we ship to:
Aland Islands, Armenia, Austria, Belarus, Belgium, Bosnia And Herzegovina, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Faroe Islands, Finland, France, Georgia, Germany, Greece, Guernsey, Hungary, Iceland, Ireland, Isle Of Man, Italy, Jersey, Latvia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Republic Of, Moldova, Republic of, Monaco, Montenegro, Netherlands, Norway, Poland, Portugal, Romania, San Marino, Serbia, Slovakia, Slovenia, Spain (50 of 52 provinces), Sweden, Switzerland
For Free under 30kg
2-3 Day shipping internationally
Vacon 100 Flow Series AC Inverter for 2.2kW (3HP) 400V 3 Ph Centrifugal Fan or Pump in VxF or Sensorless Vector control to 5.6A. Converts fixed frequency three phase 400V input to variable frequency three phase 400V to control the speed of a standard AC Induction motor or permanent magnet synchronous motor.
Pump Control Features:-
Multipump: single drive, Multifollower, Multimaster, interlocking of pumps, Anti-blocking, overpressure protection. Second PID controller, 2-Zone PID Control, Frost Protection for pump, Pressure loss compensation, Start Boost, Sleep Boosting, No demand detection, Soft filling of pipe, Dry Pump supervision, Priming pump, Jockey pump, Auto-Cleaning / Anti-ragging, Real time clock based multi-pump alternation
Fan Control Features:-
Fire Mode, PID Control, real time clock with calendar.
Size MR4: 128mm Wide x 190mm Deep x 328mm High. IP54/UL Type 12.
Weight: 6kg.
Overload: 110% x 60 seconds every 10 minutes
Speed Control Range: 0-320Hz
Braking: None
Graphical Keypad, 2 x Analogue Inputs, 6 x Digital Inputs, 1 x Analogue Output, 3 x Relay Contact set, Modbus RTU (RS485), Modbus TCP (Ethernet).
Input Current: [as output current]
Input Voltage: 380-500V ±10% Three Phase at 50-60Hz -5% +10%
EMC Filters to IEC EN61800-3 Category C2 1st and 2nd Environment (Industrial and Domestic). EMC filters can be disabled if required.
Wall mount.
Rated 40°C Ambient.
Ventilation space in above: 100mm
Ventilation space below: 50mm
Ventilation space at sides: 20mm
Heat Loss at max output: [not specified]
Mounting via 4 x 7mm diameter holes at rear on 100mm x 313mm centres.

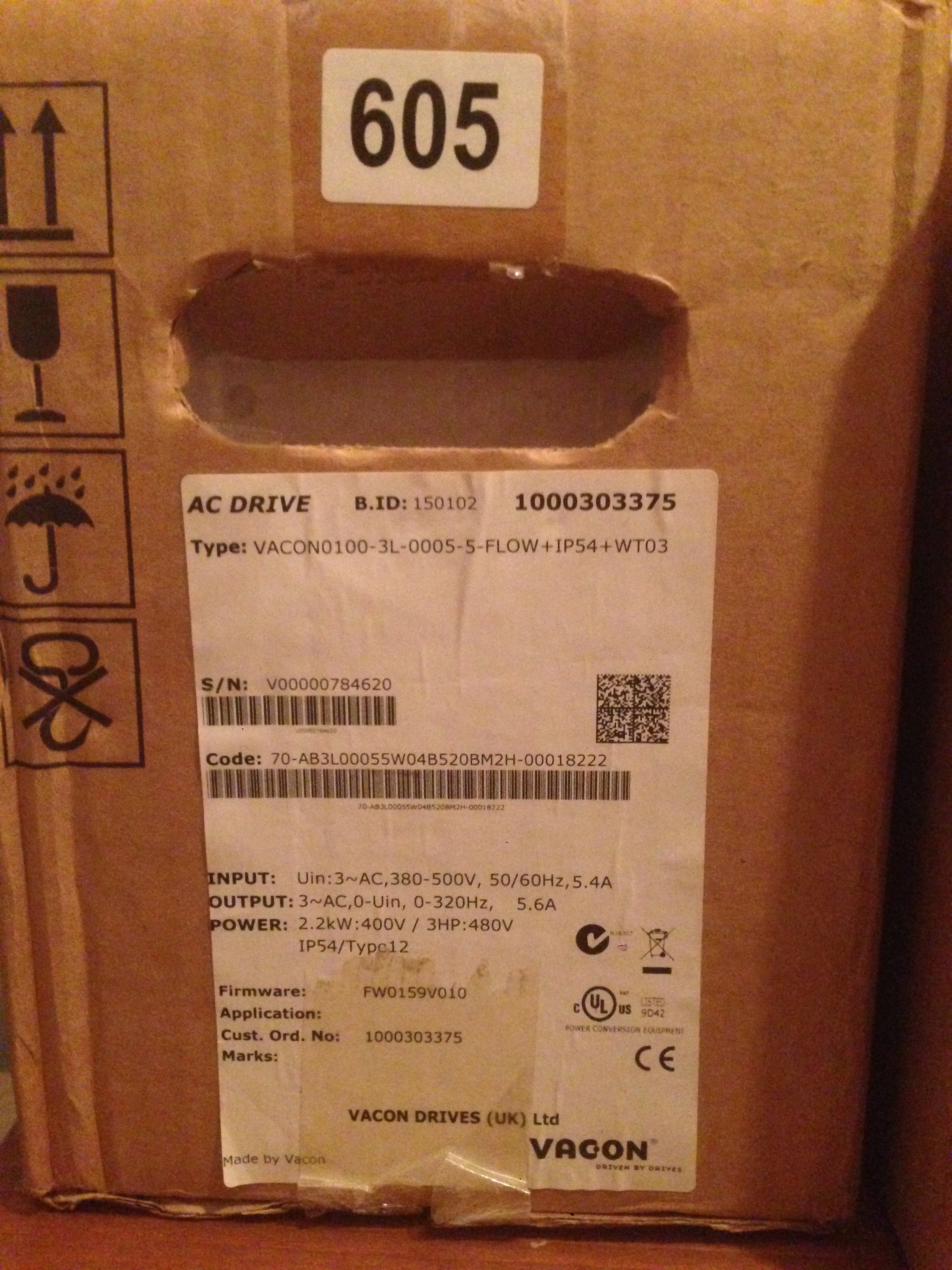

Manufacturer part number is VACON0100-3L-0005-5-FLOW +IP54
