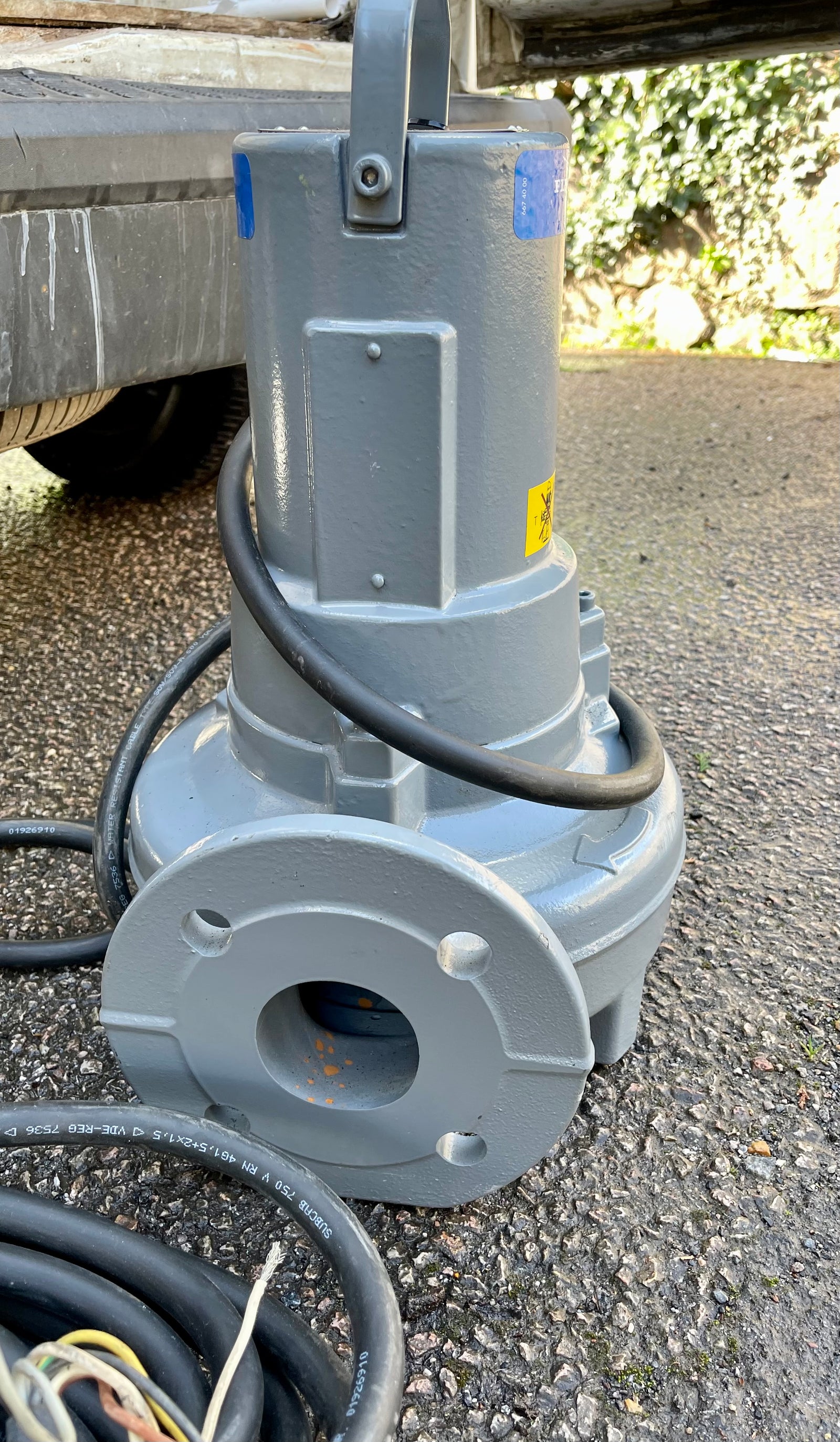

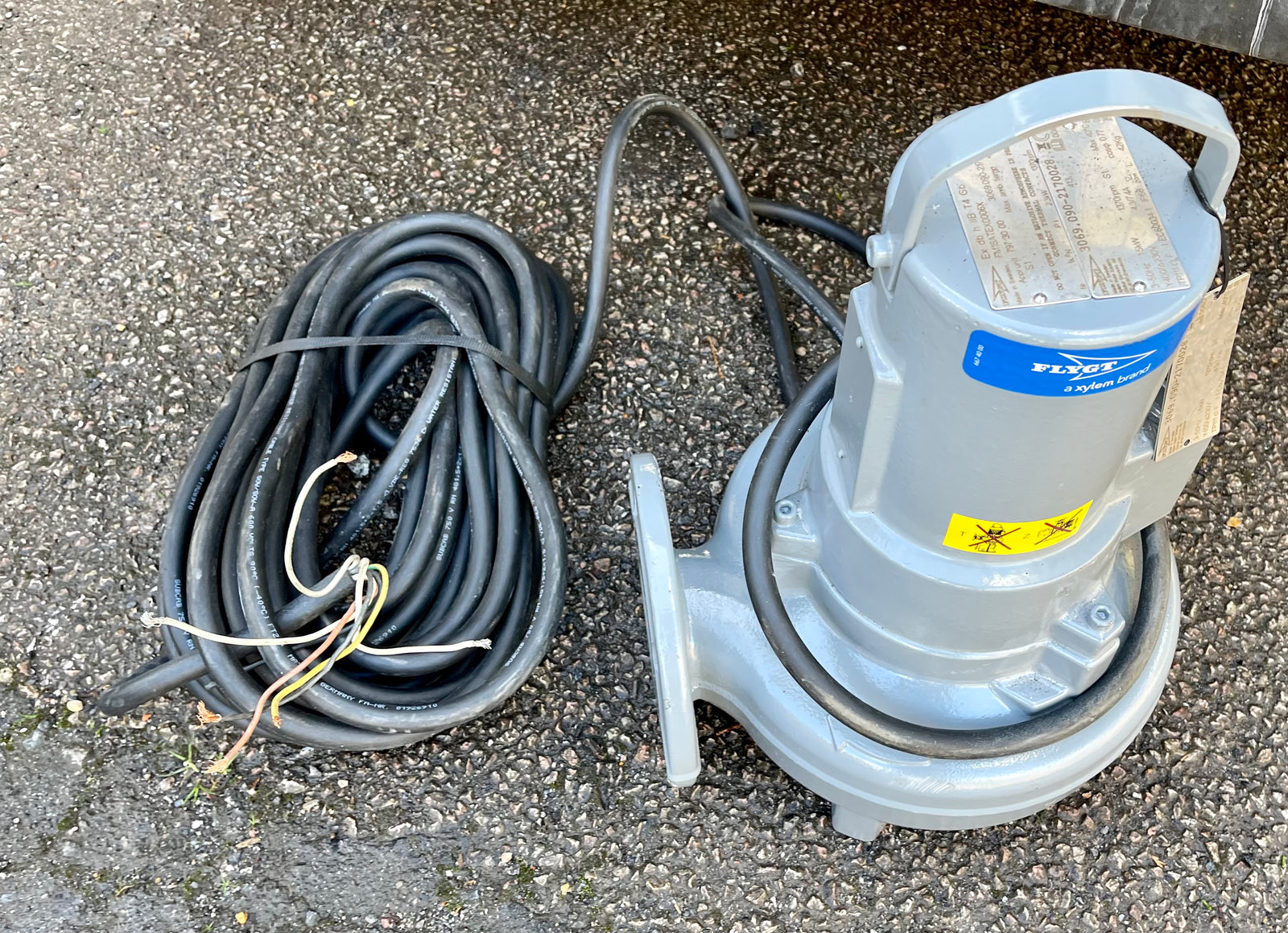

Flygt DX 3069.090 413 – 1.5kW 415V Submersible Waste Pump (DN65)

The Flygt DX 3069 is a versatile submersible vortex pump designed for pumping wastewater and liquids containing solids and abrasive particles. Its vortex hydraulic design creates a swirling flow that helps solids pass through without travelling directly through the impeller vanes, reducing the risk of blockage. This makes it a reliable choice for commercial and industrial drainage duties where robustness and solids handling are critical.

Flygt is a premium pump manufacturer and part of the Xylem Group, widely recognised for producing high-quality wastewater and drainage pumps used globally.

This pump is supplied as new, unused surplus stock and has not been installed. Minor cosmetic marks from storage may be present.

• Heavy-duty Flygt build quality
• Vortex hydraulic design for solids and abrasive liquids
• Flexible installation – wet well or dry well
• Standard DN65 drilled discharge flange
• 2 year guarantee included

Need help confirming suitability?
Call us on 01803 220416 for technical advice.

Delivery & Shipping

• Next working day dispatch available (order before 4pm)
• Same-day courier available – please call for a quote
• UK and international delivery available
• International shipping costs confirmed after checkout

Full technical details can be found in the manufacturer’s documentation:
View official Flygt specification sheet

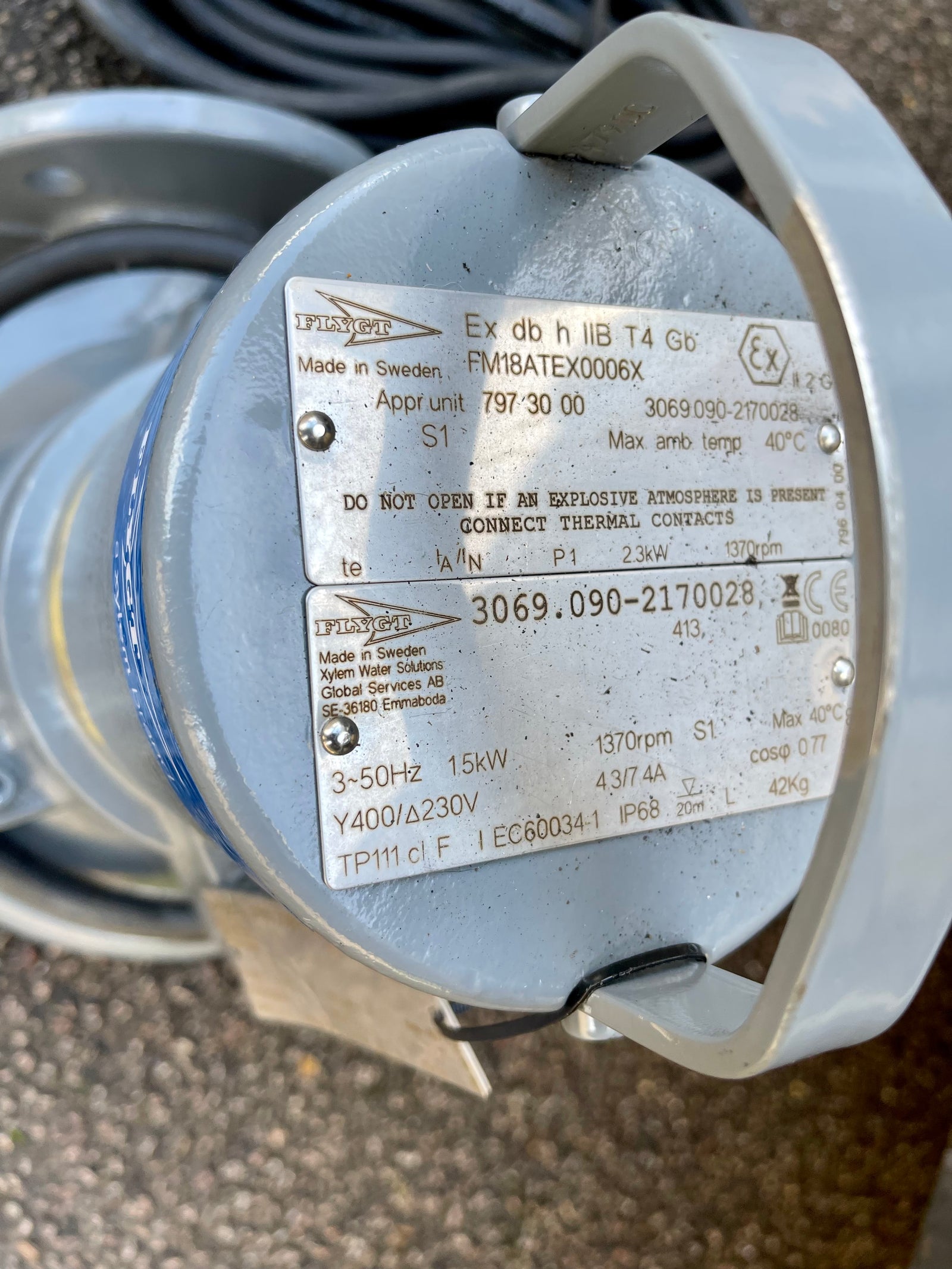

Technical note: Voltage shown as 415V is for simplified search purposes. Actual motor plate voltage for this unit is typically 400V Star / 230V Delta – wiring should always be carried out in accordance with the motor nameplate and manufacturer instructions.

Frequently Asked Questions

What does the model number mean?

• D – Vortex pump design
• X – Optional installation: wet well or dry well arrangement without predetermined mechanical connection and with drilled flange
• 3069 – Pump model series
• .090 – Explosion-proof (Ex) version
• MT – Motor / pressure class designation
• 413 – Impeller type

How can this pump be installed?

The X-type configuration allows flexible installation. The pump is supplied with a standard DN65 drilled flange and can be used in both wet well and dry well arrangements. Dry well installations may require a cooling system or de-rated motor in accordance with manufacturer guidance.

What discharge options are available?

This unit is supplied without a guide claw. A Flygt guide claw can be fitted if the pump is to be used on guide rails, and compatible claws from other manufacturers can also be used. Alternatively, the pump can be connected directly via a hose tail or fixed pipe to the DN65 flange, depending on your installation requirements.

What is a vortex impeller?

A vortex impeller creates a swirling flow within the pump casing so solids can pass through without travelling directly through the impeller vanes. This reduces the risk of blockage compared with conventional designs.

Why would I use a vortex impeller?

Vortex pumps are commonly chosen for wastewater duties where the liquid may contain debris or fibrous material. The design prioritises solids handling and reduced clogging, making it well suited to unattended or critical installations.

What are the disadvantages of a vortex impeller?

The main trade-off is efficiency. Vortex pumps generally require more power to achieve the same flow/head than channel or single-vane designs. The hydraulic efficiency is lower, but in return you gain much greater tolerance to solids and debris with a significantly reduced risk of clogging.

Do you offer technical support?

Yes — we provide free technical advice prior to purchase. Please call 01803 220416.

About Our Stock

We specialise in supplying new and unused surplus pumps, allowing us to offer premium equipment at highly competitive prices. All pumps are inspected prior to dispatch and supplied with guarantee.
