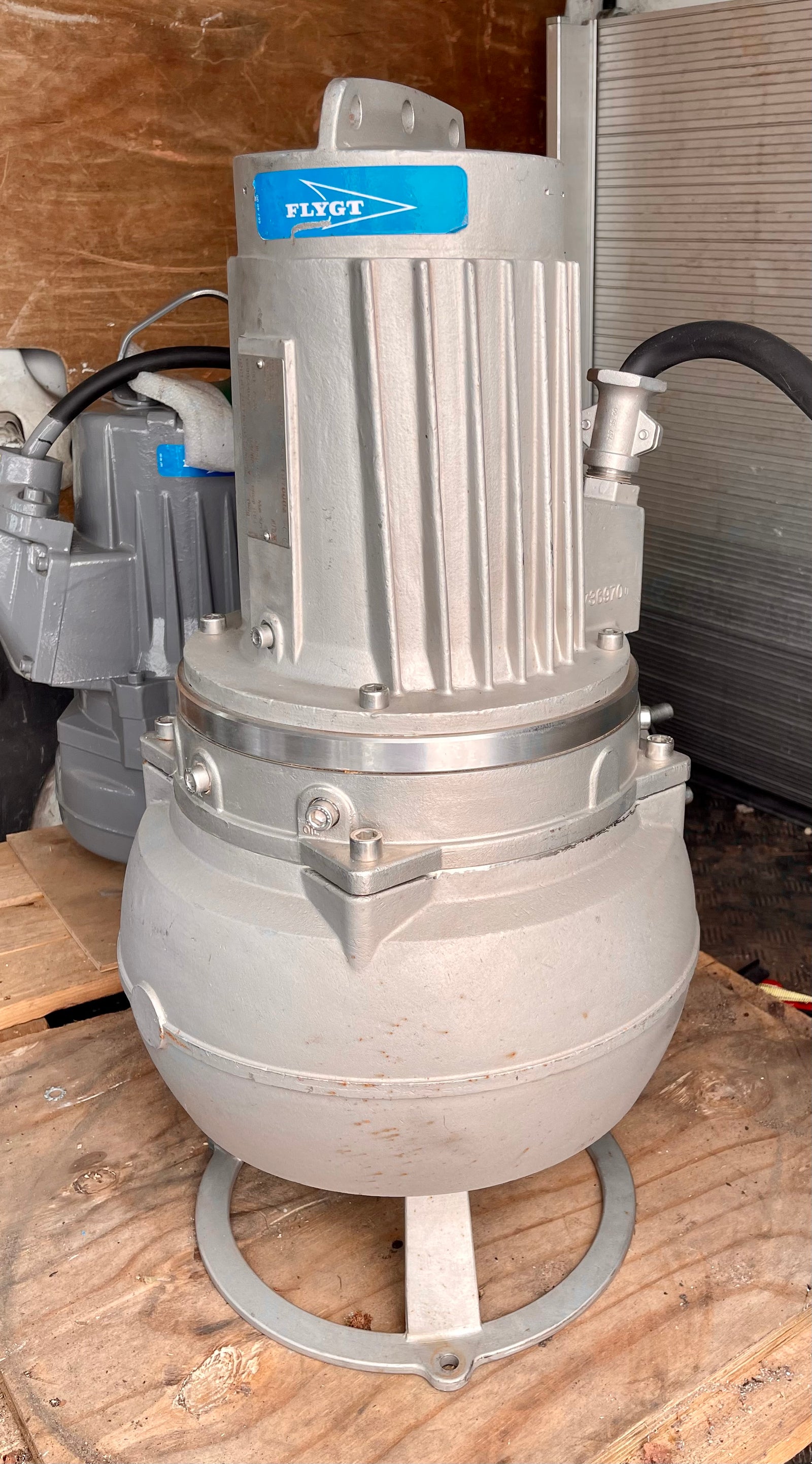

Flygt DS 8056.280 LT 442 Stainless Steel Submersible Pump 7.5kw #3659
£9,958.33GBP
inc VAT
Technical Information
| Voltage | 415v |
| Power Rating | 7.5 kW |
| Outlet Size | DN 100 |
| Shipping Weight | 160.0 kg |
| Package Dimensions | 120.0 × 60.0 × 80.0 mm |
| Maximum Pressure | 18.0 m head (1.8 bar) |
| Maximum Flow | 216.0 m³/h (60.0 L/s) |
Flygt DP 8056.280 LT 442 – Stainless Steel Submersible Pump 7.5kW (3~) #3659
The Flygt D 8056 is a heavy-duty submersible pump designed for corrosive wastewater duties. Flygt describes this pump as suitable for corrosive wastewater containing solids or fibered material.
This unit is supplied as new, unused surplus stock and has not been installed. Minor cosmetic marks may be present from storage.
- Series: Flygt D 8056 (vortex impeller design)
- Variant: 8056.280 (stainless steel execution)
- Pressure class: LT (low head)

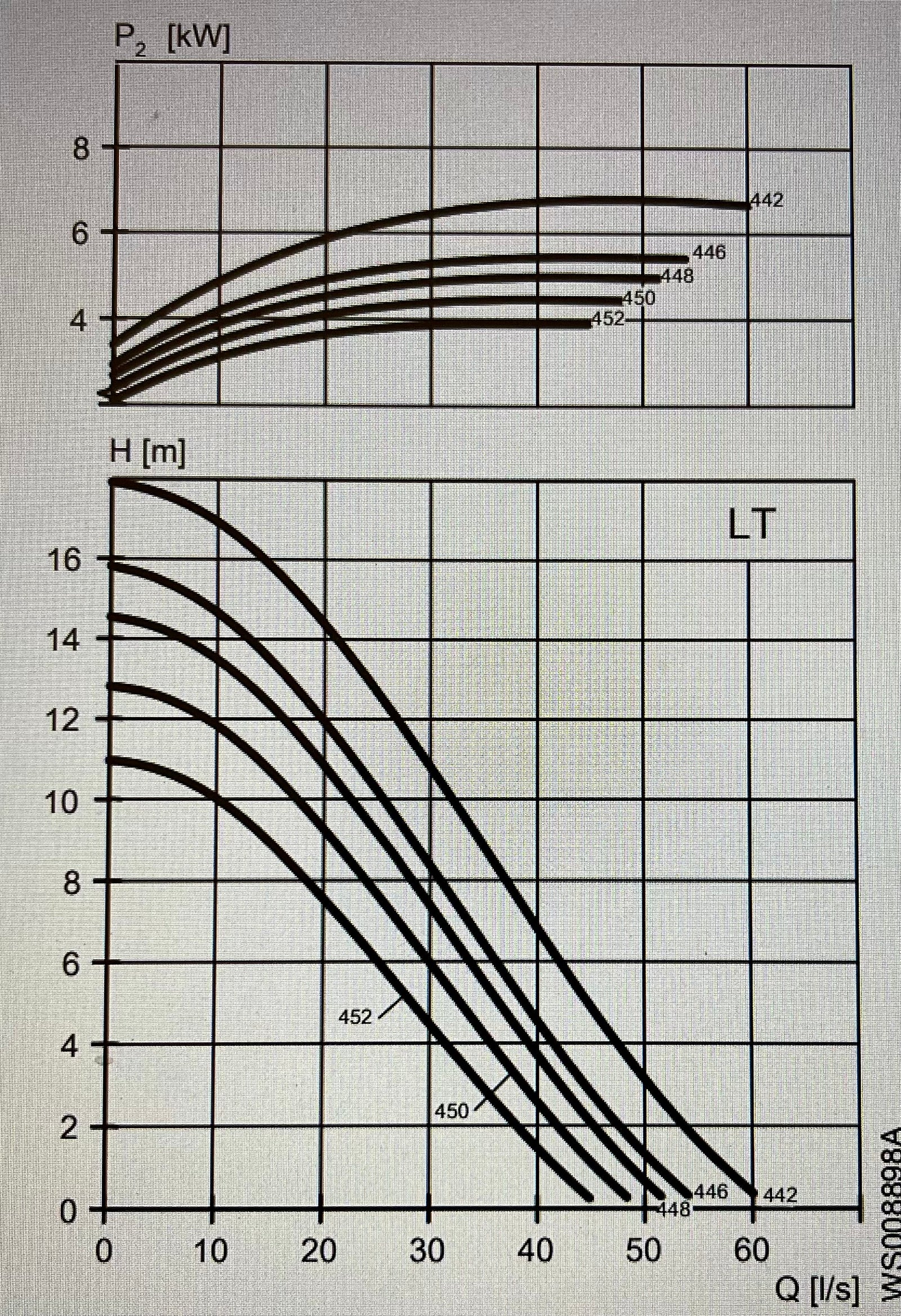

- Curve / impeller code: 442
- Motor rated power: 7.5 kW
- Installation: S installation (portable semi-permanent wet well arrangement)
- Supplied with 2 year guarantee
Installation Arrangement

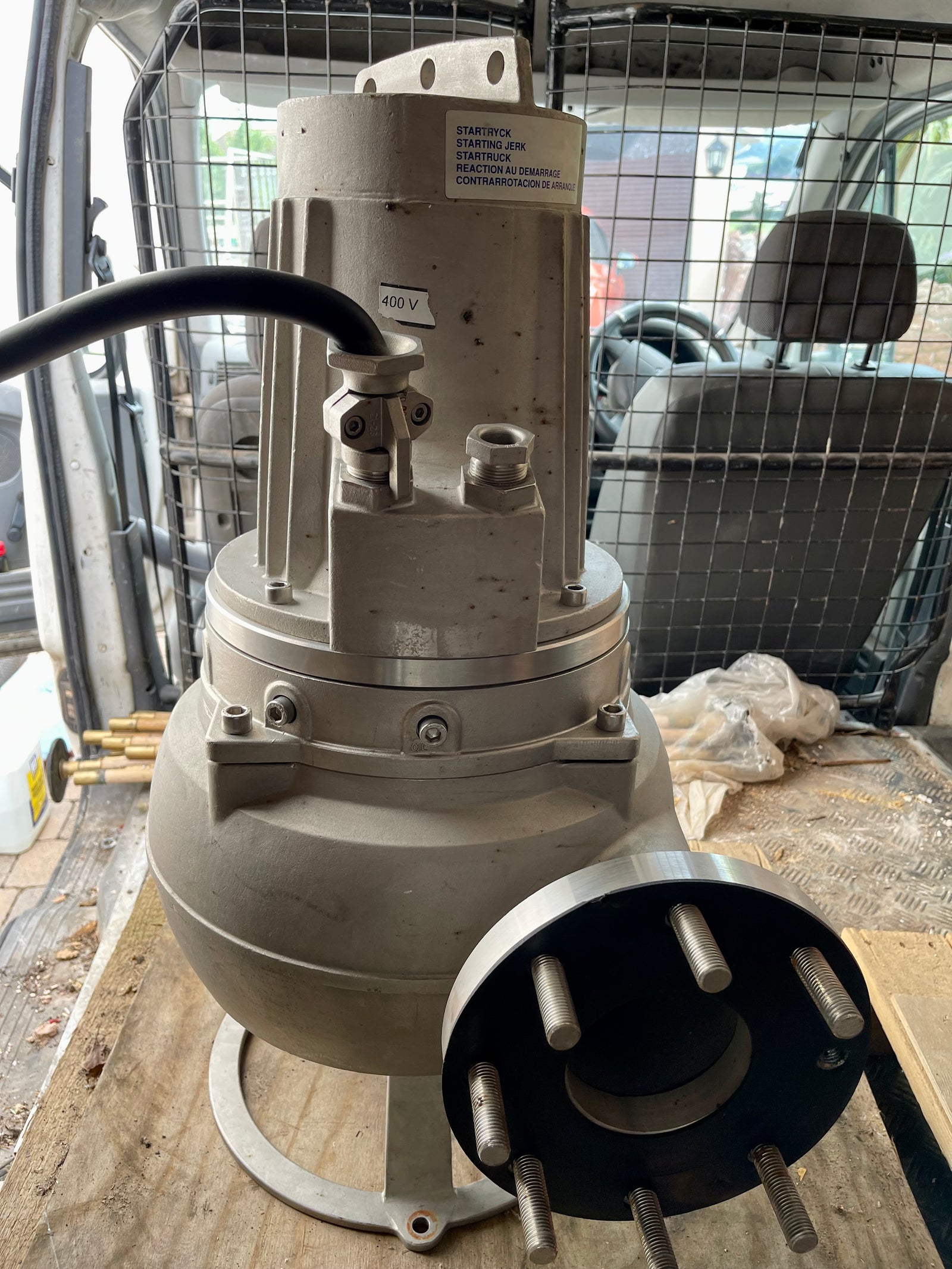

This unit is supplied with a free-standing base featuring a four-bolt square flange and a DIN DN100 flange adaptor fitted to the discharge. The free-standing base can be unbolted or removed if an alternative mounting arrangement is required. The DIN flange adaptor allows the pump to be fitted with a guide-claw adaptor if needed, and guide claws can be used with a range of different manufacturer guide-rail systems depending on the installation on site.
Why vortex?
The Flygt D range uses a vortex impeller concept, commonly selected where solids tolerance and reliable passage of fibrous material is the priority, particularly in challenging wastewater duties.
Technical note – voltage:
Voltage is shown as 415V in the listing for simplified search purposes.

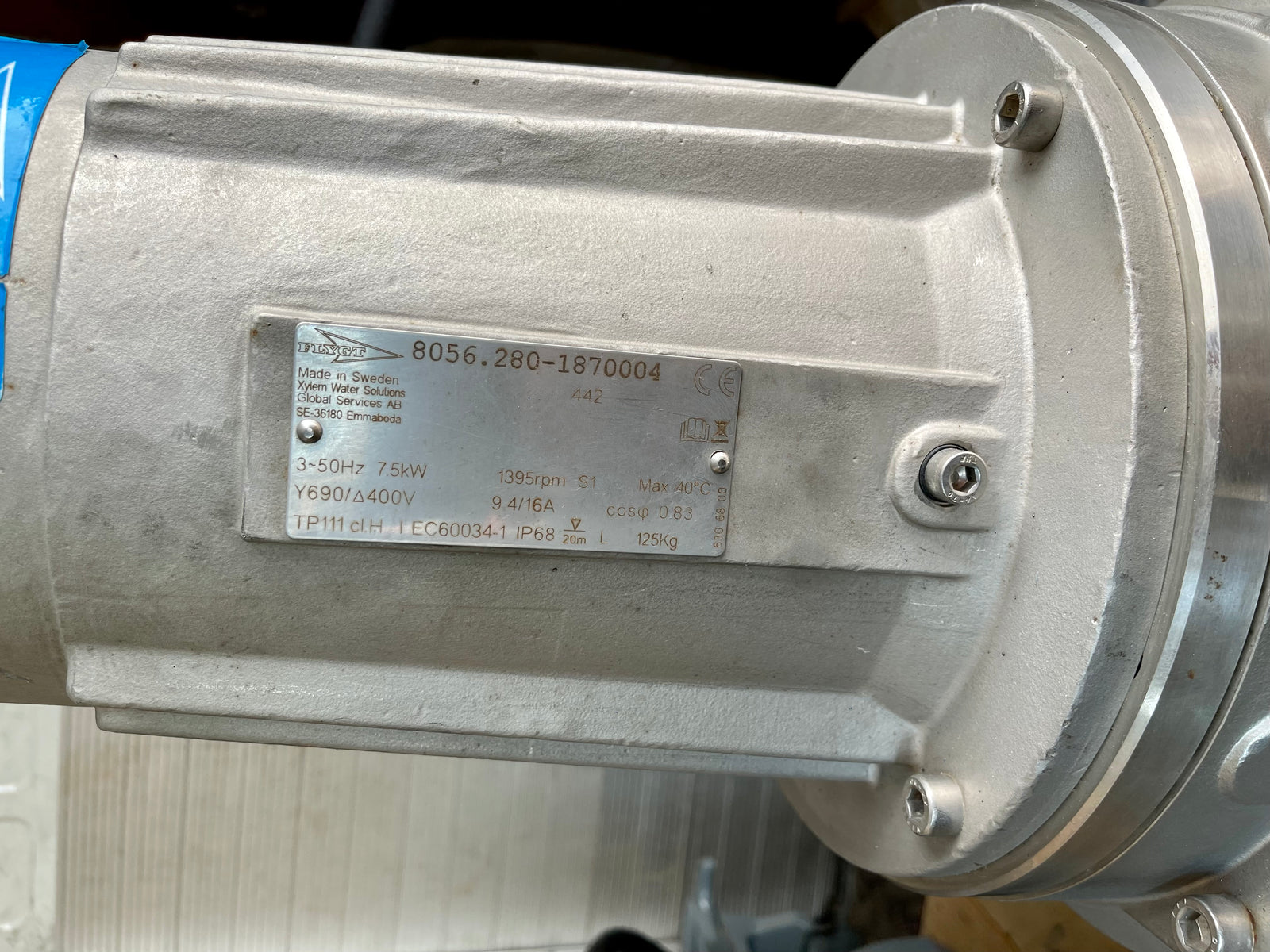

The motor nameplate configuration for this pump is 690V Star / 400V Delta.
Frequently Asked Questions
What does the model number mean?
- DP – Flygt D 8056 pump designation (D-series vortex range)
- 8056 – Pump model series
- .280 – Stainless steel execution
- LT – Low head pressure class
- 442 – Curve / impeller code
- S installation – portable semi-permanent wet well arrangement
- DN100 – discharge via DIN adaptor (guide-claw compatible)
What applications is this pump suitable for?
Flygt describes this as a submersible pump for corrosive wastewater containing solids or fibered material.
Specification & guidance notice: Technical information and FAQ content are provided in good faith based on manufacturer literature and industry experience. Descriptions of hydraulic types and application suitability represent general guidance only and do not constitute a guarantee of performance. Actual results will depend on system design, pipework losses, media characteristics, and installation conditions. Please consult the manufacturer & thier documentation and satisfy yourself that the equipment is suitable for your specific application prior to purchase.
