GRUNDFOS TP / TPD 100-200/2 A-F-A-BAQE – 5.5 kW 415V Circulator Pump Head (96109230 / 96109174) #4667

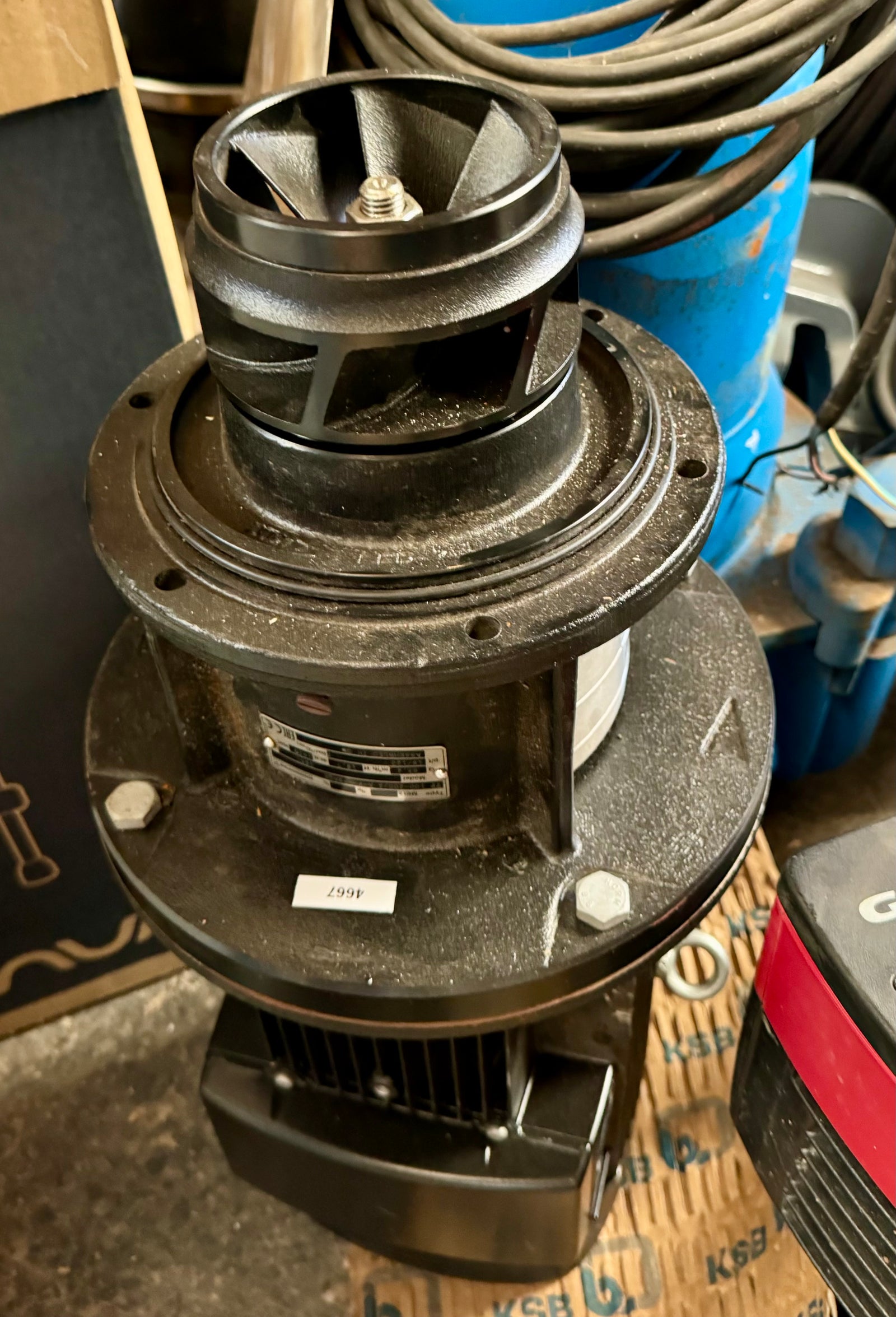

This listing is for a Grundfos TP / TPD pump head assembly, comprising the motor and wet end (impeller and cartridge), suitable as a replacement component for compatible TP and TPD series circulators. It is not a complete pump and does not include the pump housing, volute or pipework connections.

This head can be used on both single-head and twin-head pump configurations where the mechanical interface is compatible.

Condition: supplied as surplus / unused stock. The unit may show cosmetic marks consistent with storage and handling. It is inspected prior to dispatch and confirmed operational.
Guarantee: supplied with our 2-year guarantee.

• Assembly type: Pump head (motor + wet end)
• Rated motor output (P2): 5.5 kW
• Electrical supply: 3 × 380–415 V, 50 Hz
• Shaft seal: BAQE mechanical seal

Need help confirming suitability?
Call us on 01803 220416 for technical advice.

Manufacturer product page

Full technical specifications and performance data can be viewed on the official Grundfos product page:
View Grundfos TP 100-200/2 (96109174) – Variant details

Frequently Asked Questions

Will this pump head fit my pump?

This is a pump head only (motor, impeller and wet end) and does not include a housing. Compatibility depends on the mechanical interface with your existing pump body.

This head may be suitable for:

• Grundfos TP single-head pumps of matching frame size
• Grundfos TP twin-head pumps (as replacement for one or both heads)

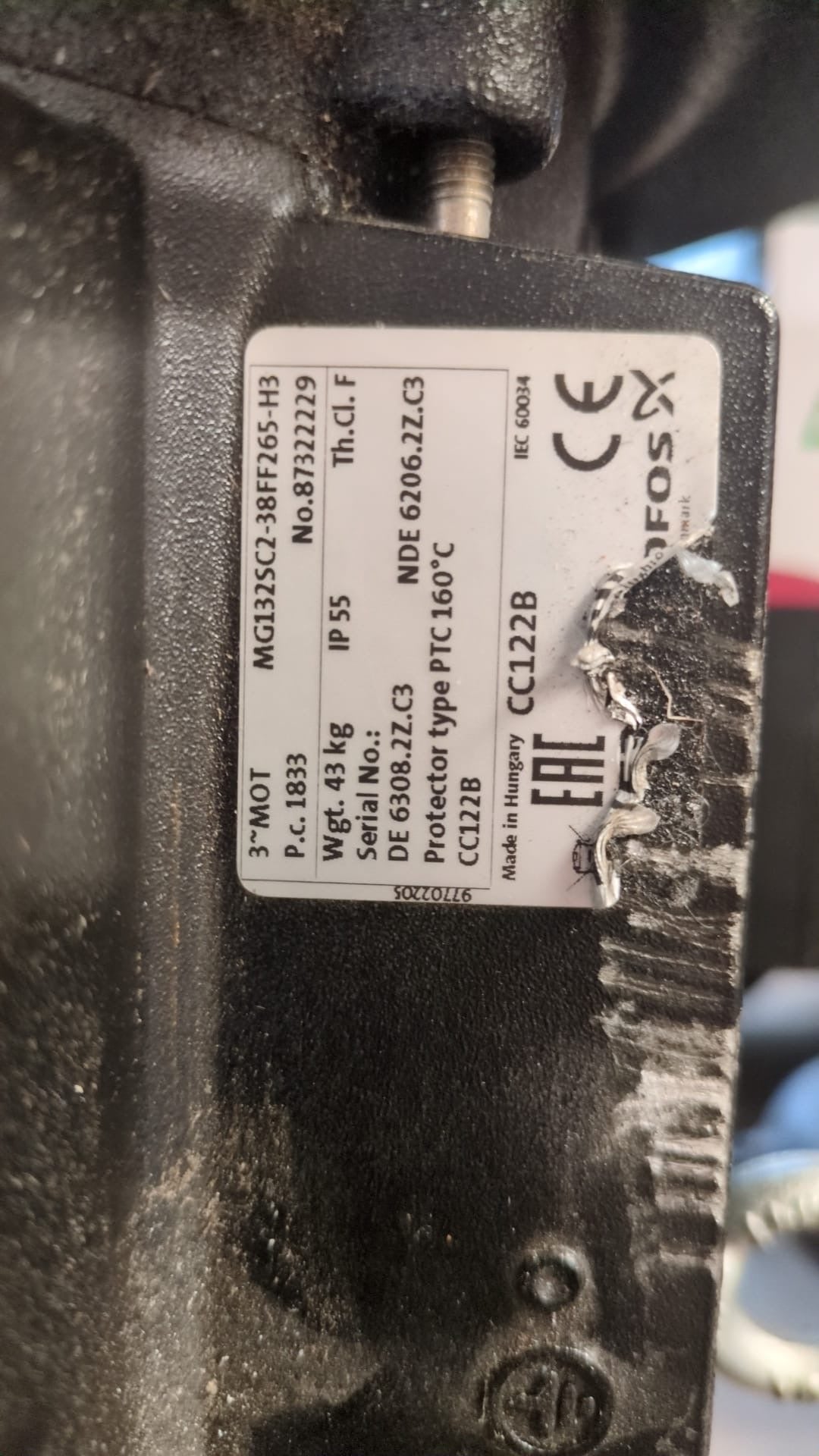

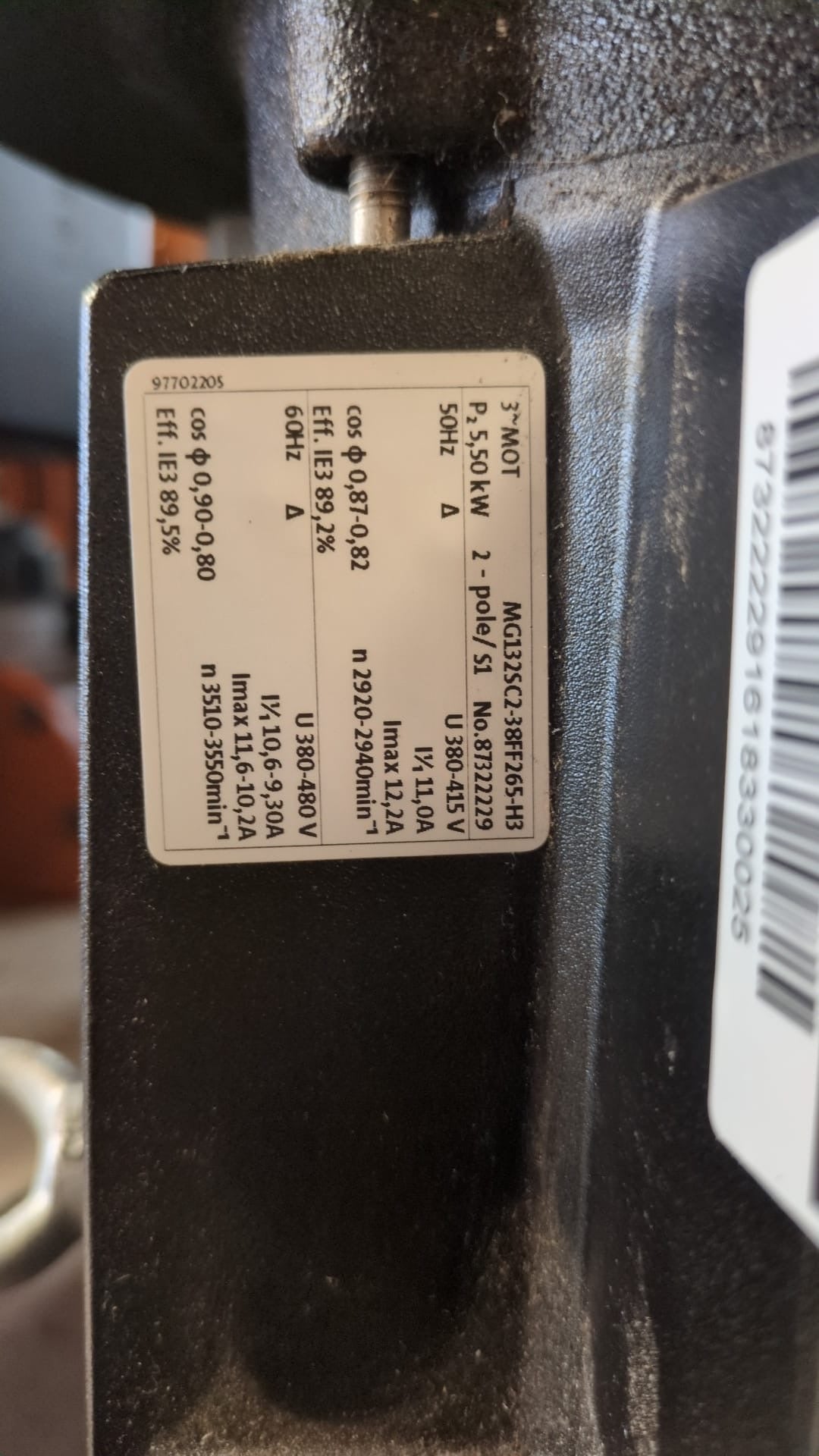

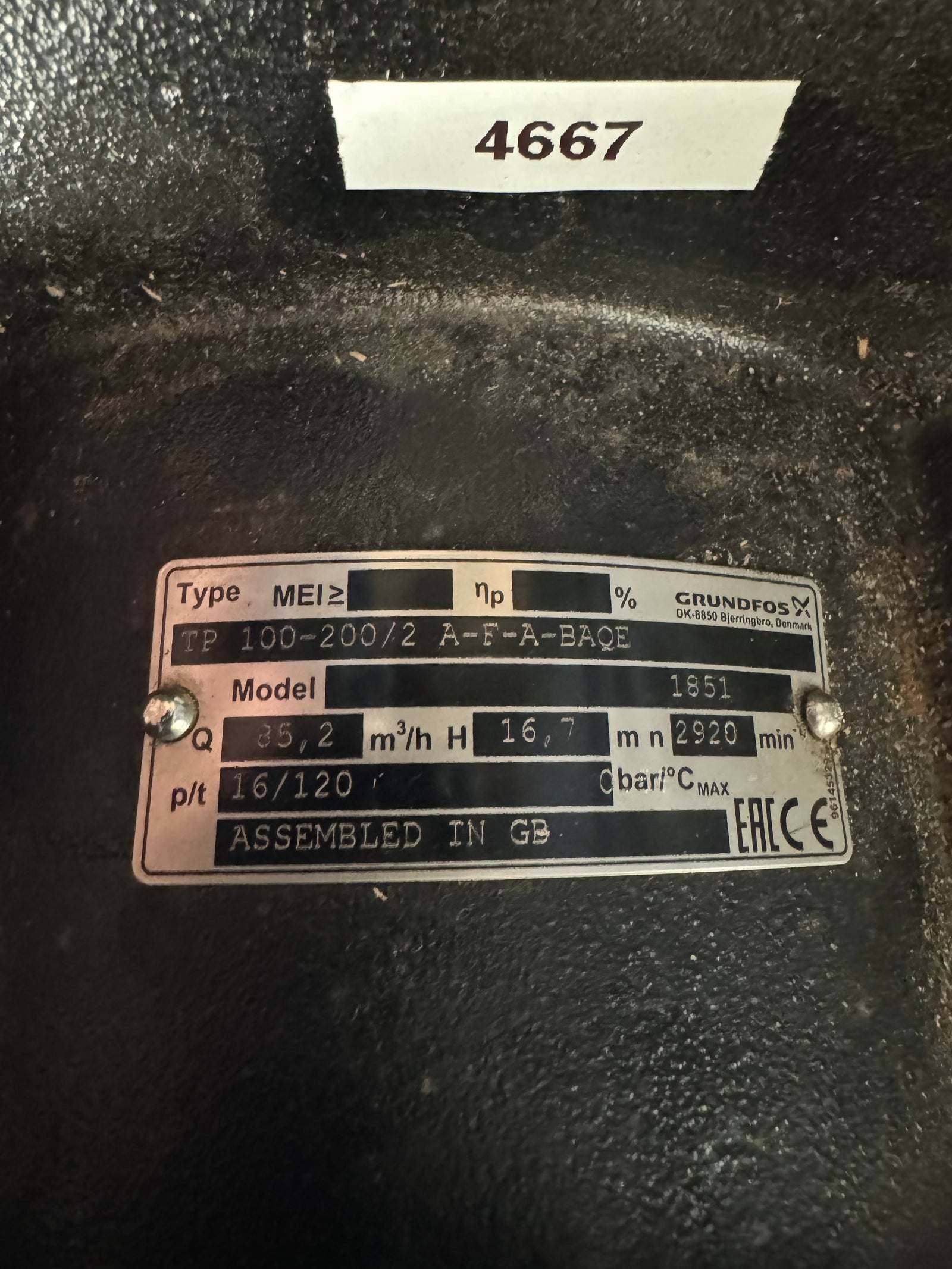

To confirm suitability, check the exact model code on your existing pump head or contact us with photos of the nameplate and installation details.

What does the BAQE shaft seal code mean?

• B – rubber bellows seal construction
• A – carbon graphite seal face (impregnated)
• Q – silicon carbide counterface
• E – EPDM elastomers

Seal operating temperature (BAQE): suitable from 0 °C up to 120 °C in water duties (EPDM-limited). The carbon vs silicon-carbide pairing provides quiet running and good stability for clean heating and cooling water circulation.

What does the product code mean?

• TP / TPD – TP pump family, compatible with single or twin configurations
• 100 – nominal size of the original pump housing
• 200 – head series designation
• /2 – 2-pole motor
• A – basic version
• F – DIN flange configuration on original pump
• A – basic construction
• BAQE – mechanical shaft seal materials

About Our Stock

Stock code: #4667
We specialise in supplying quality pumps and equipment. This pump head is supplied as surplus stock, inspected prior to dispatch and supplied with a 2-year guarantee.
