Grundfos EF30.50.11.2.1.502 96106554 1.1 kW 240v Submersible Waste Pump Dn50 #4505

Grundfos EF30.50.11.2.1.502 (96106554) – 1.1kW 230/240V Submersible Effluent / Waste Pump (RS2 2") #4505

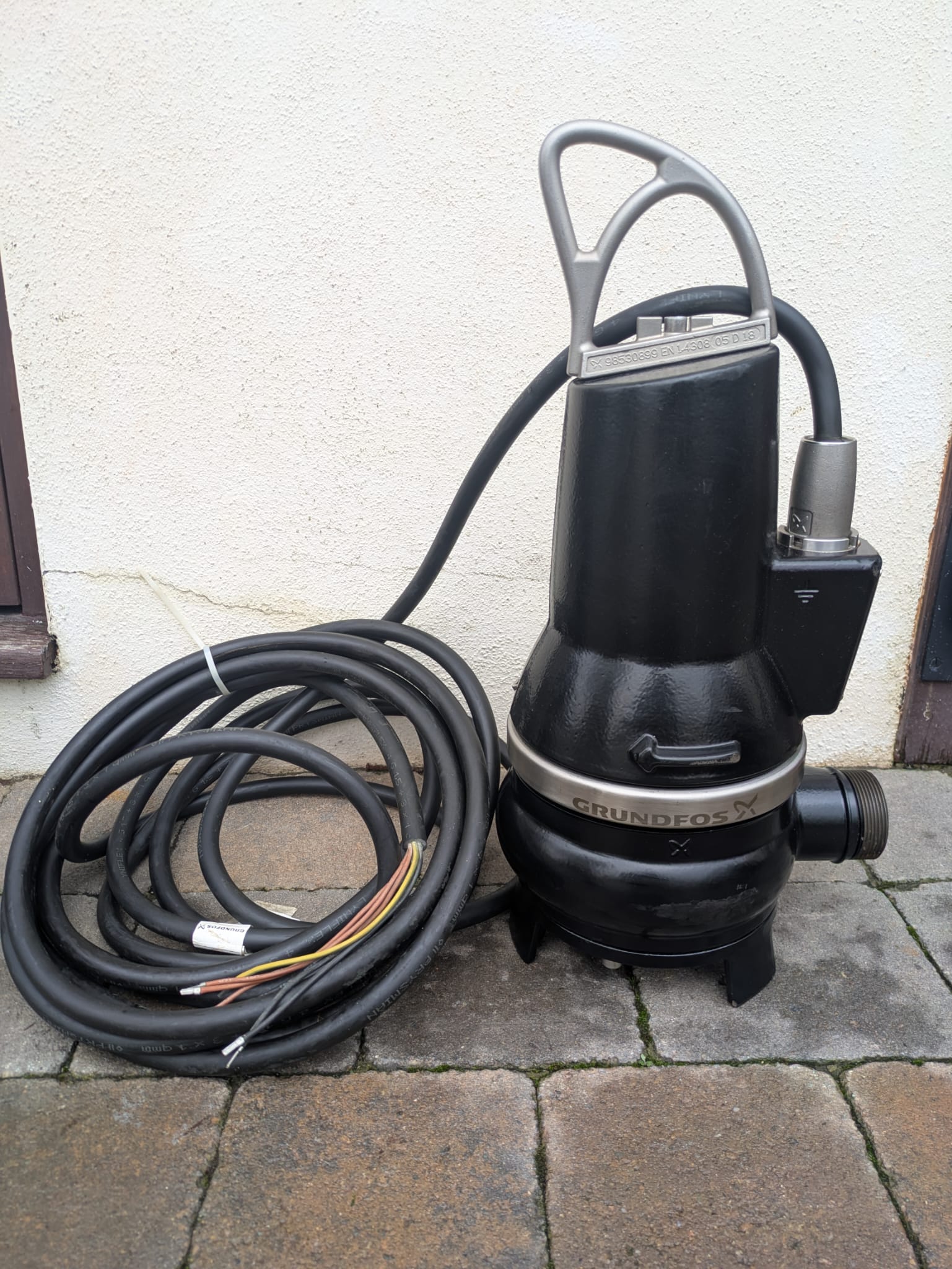

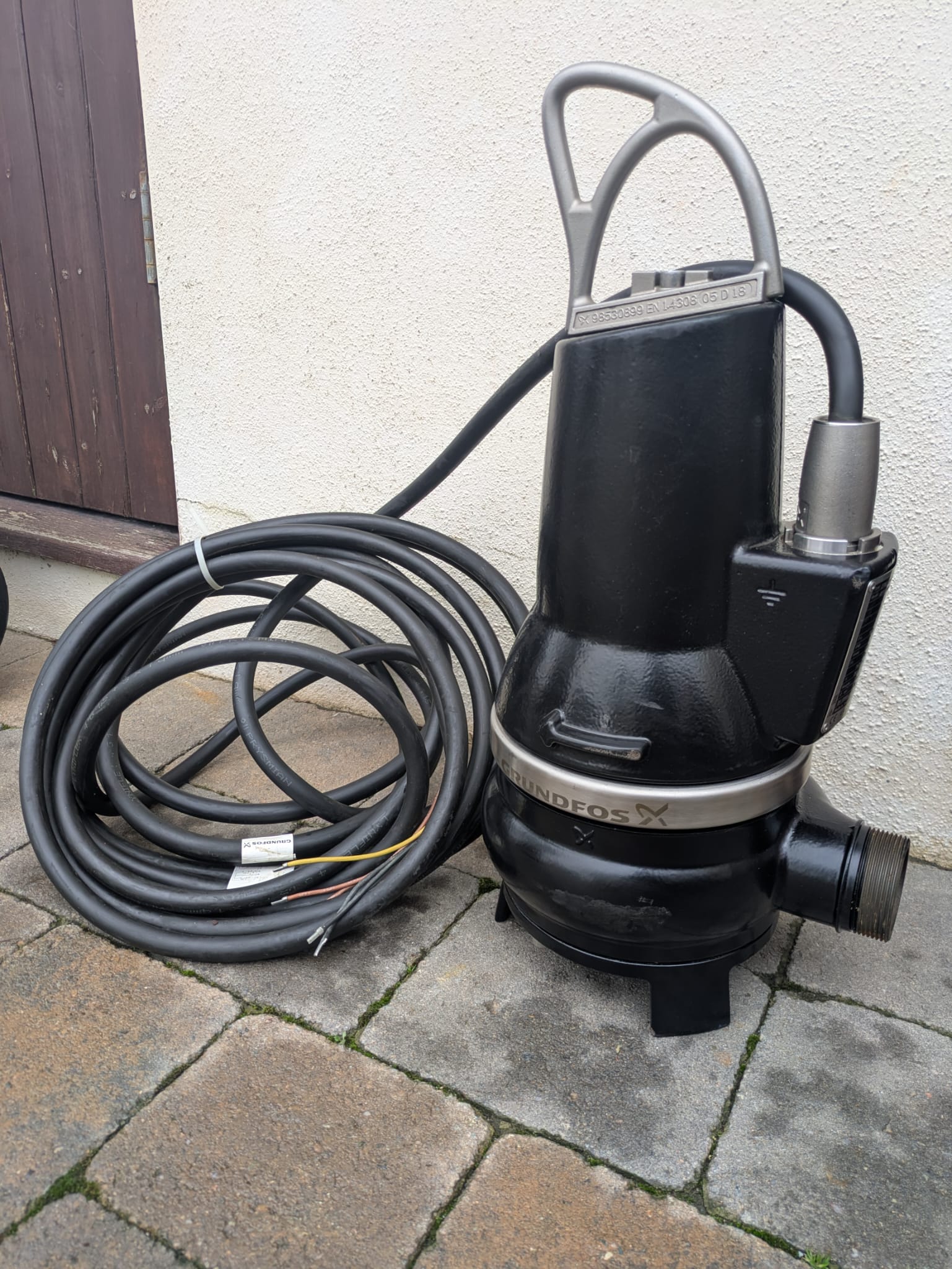

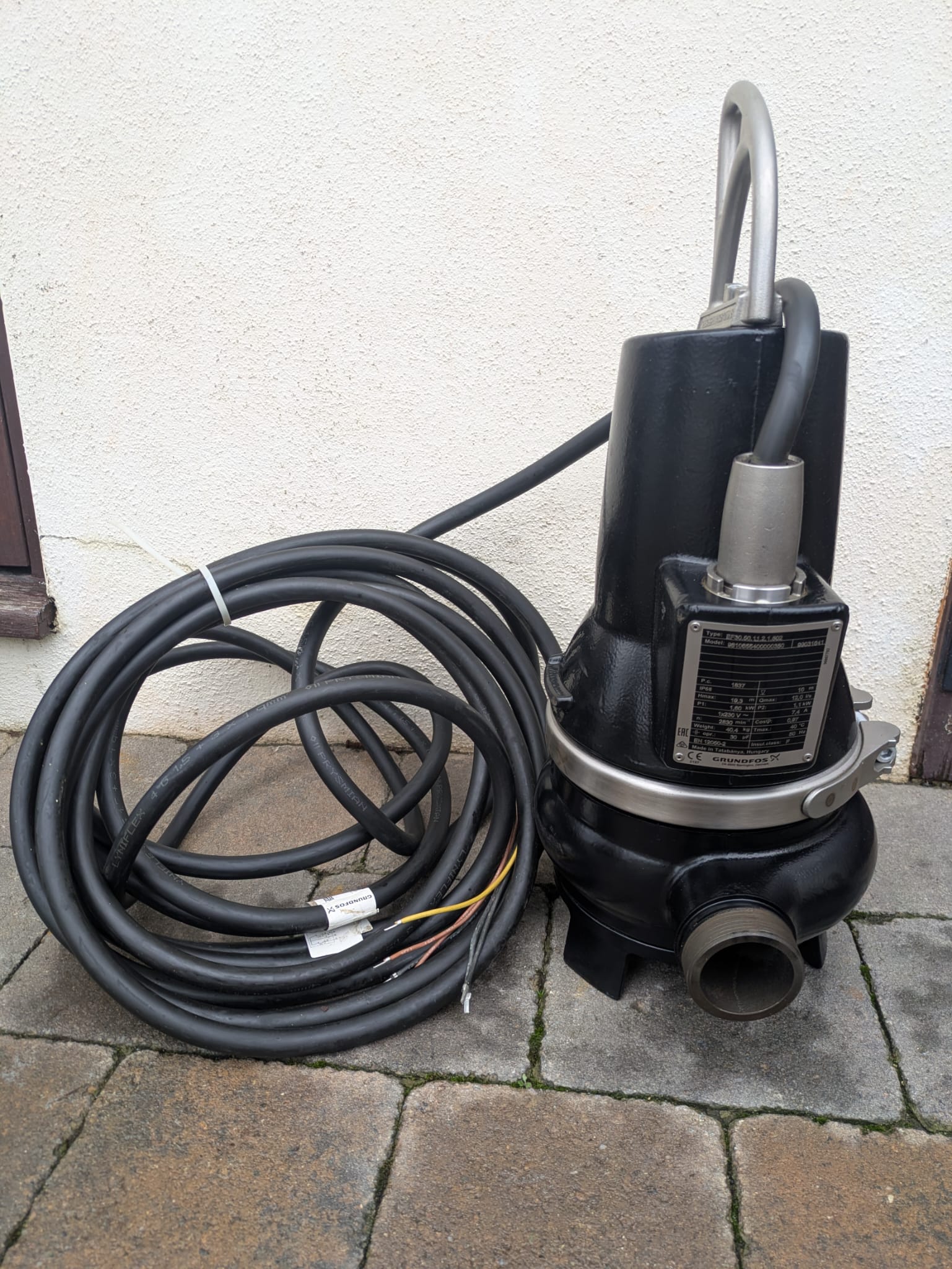

This listing is for a Grundfos EF effluent / wastewater pump (portable submersible) with a single-vane, semi-open impeller providing 30 mm free passage. The EF range is commonly used for domestic and light industrial drainage / effluent duties where a compact, portable pump is required for temporary or permanent installation.

• Pump type: Grundfos EF effluent pump (portable submersible)
• Impeller / solids handling: single-vane, semi-open impeller – 30 mm free passage
• Discharge connection: RS2 2" threaded outlet
• Protection & monitoring: thermal protection (motor protection depends on the control arrangement)
• Variant: standard non-EX version

Need help confirming suitability?
Call us on 01803 220416 for technical advice.

Manufacturer product page

Full technical details can be found on the official Grundfos product page:
View Grundfos EF30.50.11.2.1.502 (96106554) – Variant specifications

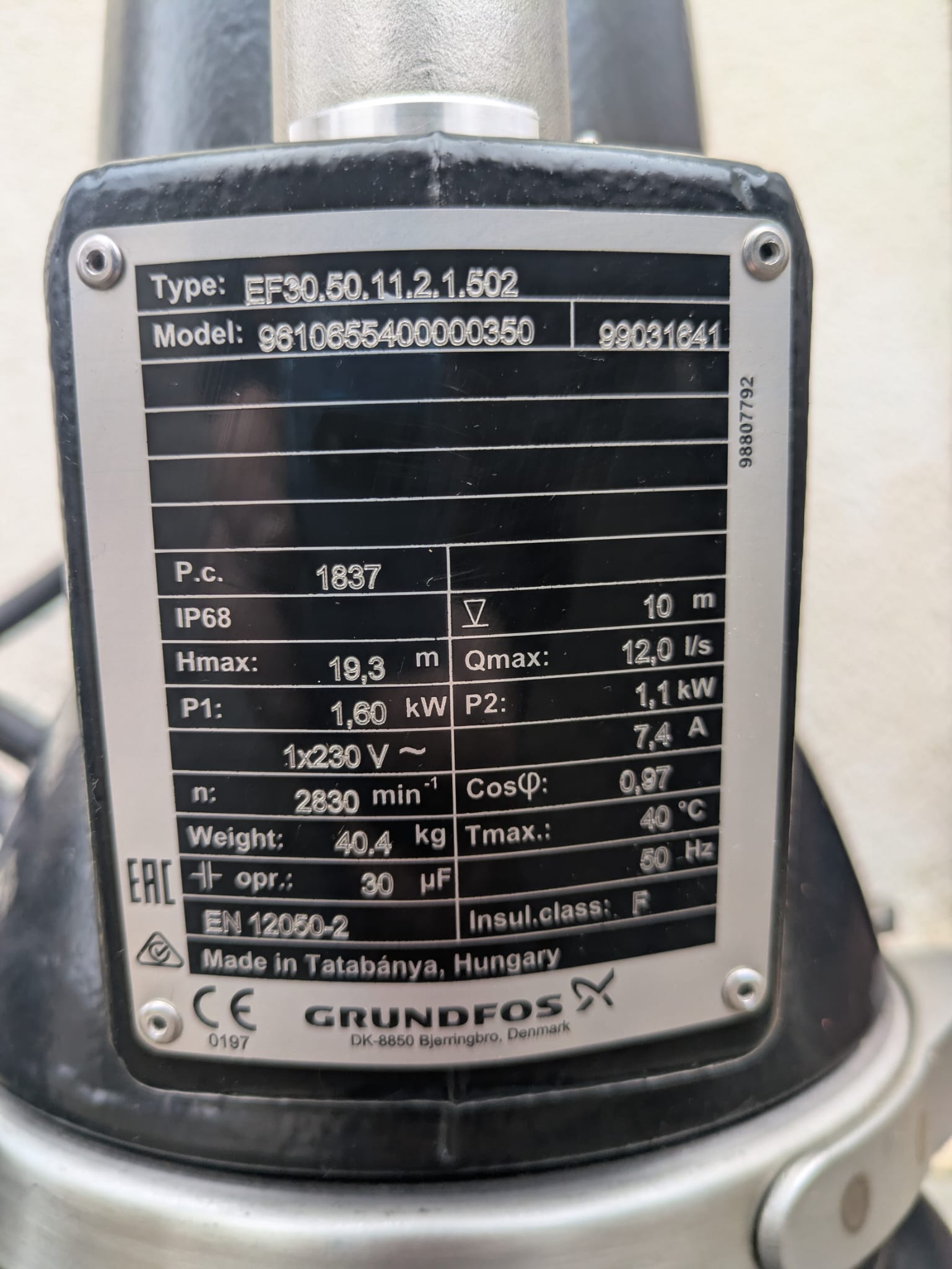

Key specifications (summary)

• Model: EF30.50.11.2.1.502
• Grundfos product number: 96106554
• Rated motor output (P2): 1.1 kW
• Electrical supply / starting: 1~ 230 V, 50 Hz, direct-on-line (DOL)
• Motor: 2-pole
• Discharge: RS2 2" threaded outlet
• Free passage (maximum particle size): 30 mm
• Maximum installation depth: 7 m

Applications (manufacturer guidance)

The EF pump is suitable for both domestic and industrial applications. Typical duties include:

• Drainage and surface water with small impurities
• Wastewater with fibres (e.g. from laundries)
• Wastewater without discharge from toilets
• Wastewater from commercial buildings without discharge from toilets

Construction & service features

• Materials: cast iron submersible pump with integrated single-phase motor
• Oil chamber: intermediate oil chamber pre-filled with non-toxic special oil
• Cable plug: hermetically sealed plug connection to help prevent water ingress via the cable
• Serviceability: clamp design allows field inspection without special tools
• Shaft sealing: double cartridge seal for quick field replacement
• Motor build: insulation class F, greased-for-life bearings

Delivery & Shipping

• UK and international delivery available
• Next working day dispatch is often possible
• If delivery is time-critical, please call to confirm availability

Frequently Asked Questions

What does the model number mean?

• EF – Grundfos effluent pump range
• 30 – 30 mm free passage
• 50 – nominal outlet port diameter (mm class)
• 11 – 1.1 kW motor output
• 2 – 2-pole motor
• 1 – single-phase motor
• 5 – 50 Hz
• 02 – 230 V direct-on-line (DOL) starting

What is a single-vane, semi-open impeller?

This design uses one main sweeping blade with a more open flow path than a traditional channel impeller. It helps fibres and small solids pass through with fewer places to snag, while still producing better pressure and efficiency than a vortex (free-flow) design.

Why choose this over a vortex or non-clog pump?

• Vs vortex: better efficiency and head, lower running cost, but not as wipe-proof
• Vs channel impeller: more forgiving with fibres and stringy material

Ideal for drainage/surface water with small impurities and effluent with fibres (e.g. laundries) where a balance of clog resistance and efficiency is needed.

What discharge connection does this pump have?

This pump is fitted with an RS2 2" threaded connection. A suitable adaptor can be used to connect to hose or fixed pipework as required.

Can model numbers be interchanged?

Yes, in some cases alternative EF codes can be used depending on duty and installation. Please call us for guidance.

What is the maximum installation depth?

Maximum installation depth is 7 m.

Do I need a control panel for this 230V single-phase pump?

Yes. Single-phase submersible pumps require a dedicated control arrangement with correct start components and overload protection and must not be connected directly to the mains supply.

Do accessories come fitted?

No. Accessories are supplied separately.

About Our Stock

Stock code: #4505
We specialise in supplying new and unused surplus pumps. All units are inspected prior to dispatch and supplied with guarantee.
