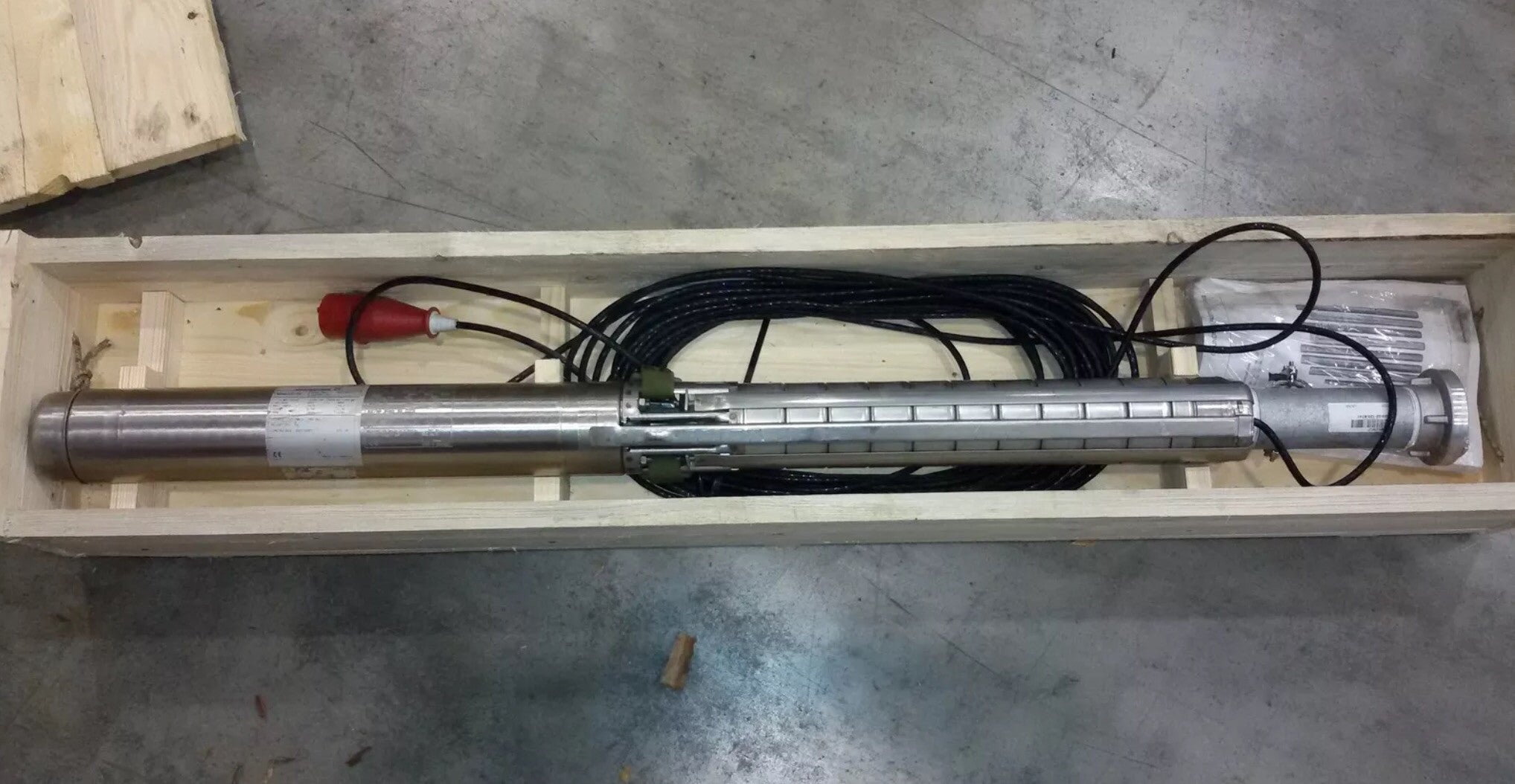

Grundfos SP8A-10 NE Submersible Bore Hole Pump 4" 2.2kw 240v 316 Stainless
£750.00GBP
6 Month guarantee on all of our used pumps
Please call us for free advice on replacement
We also take card payment over the phone
We buy and sell new and unused pumps
Can deliver for next day if ordered before 4pm
Same day delivery possible please call for a quote
MAJORITY OF OUR PUMPS ARE NEW, UNUSED, NEVER BEEN FITTED SURPLUS STOCK
Please call us for free advice on replacement
We also take card payment over the phone
We buy and sell new and unused pumps
Can deliver for next day if ordered before 4pm
Same day delivery possible please call for a quote
MAJORITY OF OUR PUMPS ARE NEW, UNUSED, NEVER BEEN FITTED SURPLUS STOCK
WORLDWIDE DELIVERY AVAILABLE
Internationally for free we ship to:
Aland Islands, Armenia, Austria, Belarus, Belgium, Bosnia And Herzegovina, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Faroe Islands, Finland, France, Georgia, Germany, Greece, Guernsey, Hungary, Iceland, Ireland, Isle Of Man, Italy, Jersey, Latvia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Republic Of, Moldova, Republic of, Monaco, Montenegro, Netherlands, Norway, Poland, Portugal, Romania, San Marino, Serbia, Slovakia, Slovenia, Spain (50 of 52 provinces), Sweden, Switzerland
For Free under 30kg
2-3 Day shipping internationally
Please note: this model is fitted with a 2.2kw single phase motor.
This is a special Model made entirely from 316 stainless steel.
This pump requires either the control box: Grundfos SA-CSCR 2.2kw motor control box
or: Grundfos SA-spm 8 2.2kw
We can source these if you wish for around £250 inc VAT
Multi-stage submersible pump for raw water supply,groundwater lowering and pressure boosting. The pump is suitable for pumping clean, thin, non-agressive liquids without solid particles or fibres.
The pump is made entirely of Stainless steel DIN W.-Nr. DIN W.-Nr. 1.4401.
| Liquid: | ||
| Pumped liquid: | Water | |
| Maximum liquid temperature: | 90 °C | |
| Q_OpFluidTemp: | 20 °C | |
| Density: | 998.2 kg/m³ | |
| Technical: | ||
| Speed for pump data: | 2900 rpm | |
| Rated flow: | 8 m³/h | |
| Rated head: | 43 m | |
| Curve tolerance: | ISO9906:2012 3B | |
| Materials: | ||
| Pump: | Stainless steel |
| DIN W.-Nr. 1.4401 | ||
| AISI 316 | ||
| Impeller: | Stainless steel | |
| DIN W.-Nr. 1.4401 | ||
| AISI 316 | ||
| Installation: | ||
| Pump outlet: | Rp 2 | |
| Motor diameter: | 4 inch | |
| Electrical data: | ||
| Power (P2) required by pump: | 1.45 kW | |
| Start. method: | direct-on-line | |
| Others: | ||
| Minimum efficiency index, MEI ≥: | 0.14 | |
| Net weight: | 8 kg |
The motor is a 1-phase motor of the canned
type with sand shield, liquid-lubricated bearings and pressure equalizing diaphragm.
type with sand shield, liquid-lubricated bearings and pressure equalizing diaphragm.
| Liquid: | ||
| Max liquid t at 0.15 m/sec: | 40 °C | |
| Technical: | ||
| Shaft seal for motor: | SIC/SIC | |
| Approvals on nameplate: | CE,EAC | |
| Motor version: | T40 | |
| Materials: | ||
| Motor: | Stainless steel | |
| DIN W.-Nr. 1.4539 | ||
| AISI 904 L | ||
| Installation: | ||
| Maximum ambient pressure: | 60 bar | |
| Motor diameter: | 4 inch | |
| Electrical data: | ||
| Motor type: | MS4000 | |
| Type of motor: | CSCR |
| C run: | 60 µF | |
| C start: | 260 µF | |
| Rated power - P2: | 2.2 kW | |
| Mains frequency: | 50 Hz | |
| Rated voltage: | 1 x 220-230 V | |
| Voltage tolerance: | +6/-10 % | |
| Rated current: | 14.6-14,0 A | |
| Starting current: | 540-600 % | |
| Cos phi - power factor: | 0.96-0,96 | |
| Rated speed: | 2850-2870 rpm | |
| Locked-rotor torque: | 240-270 % | |
| Moment of inertia: | 0.0014 kg m² | |
| Capacitor size - run: | 60 µF/370 V | |
| Capacitor size - start: | 260 µF/330 V | |
| Start. method: | direct-on-line | |
| Enclosure class (IEC 34-5): | IP68 | |
| Insulation class (IEC 85): | F | |
| Built-in temp. transmitter: | no | |
| Others: | ||
| Net weight: | 22 kg | |
