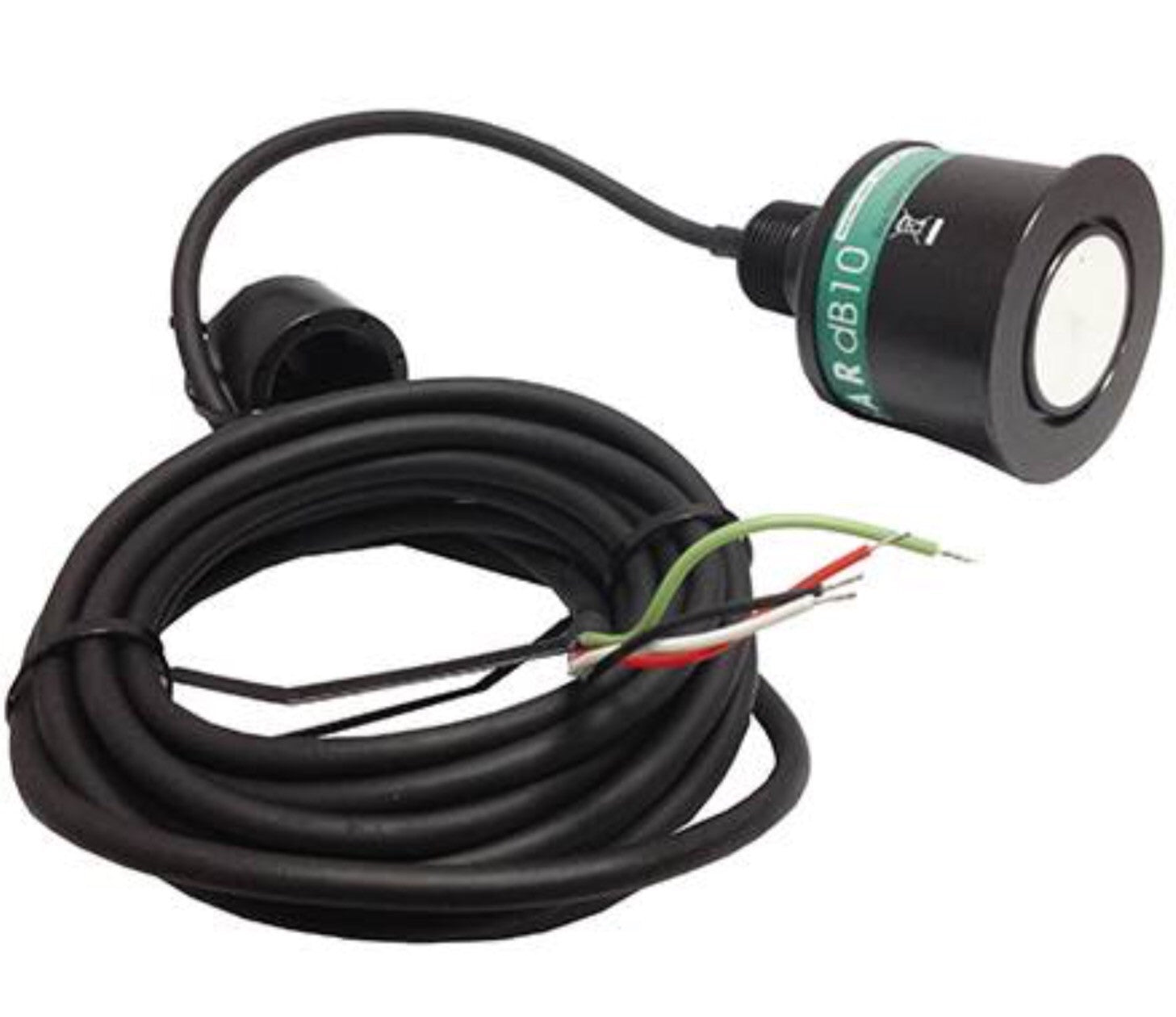

PPM Pulsar Process Management Db 15 Transducer Sensor
£449.00GBP
6 Month guarantee on all of our used pumps
Please call us for free advice on replacement
We also take card payment over the phone
We buy and sell new and unused pumps
Can deliver for next day if ordered before 4pm
Same day delivery possible please call for a quote
MAJORITY OF OUR PUMPS ARE NEW, UNUSED, NEVER BEEN FITTED SURPLUS STOCK
Please call us for free advice on replacement
We also take card payment over the phone
We buy and sell new and unused pumps
Can deliver for next day if ordered before 4pm
Same day delivery possible please call for a quote
MAJORITY OF OUR PUMPS ARE NEW, UNUSED, NEVER BEEN FITTED SURPLUS STOCK
WORLDWIDE DELIVERY AVAILABLE
Internationally for free we ship to:
Aland Islands, Armenia, Austria, Belarus, Belgium, Bosnia And Herzegovina, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Faroe Islands, Finland, France, Georgia, Germany, Greece, Guernsey, Hungary, Iceland, Ireland, Isle Of Man, Italy, Jersey, Latvia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Republic Of, Moldova, Republic of, Monaco, Montenegro, Netherlands, Norway, Poland, Portugal, Romania, San Marino, Serbia, Slovakia, Slovenia, Spain (50 of 52 provinces), Sweden, Switzerland
For Free under 30kg
2-3 Day shipping internationally
Two Year Guarantee on this item
Please see product spec here
Condition: Brand new without box, box may be marked from storage
500mm-15m range (1.64-50ft)
41kHz, 60mm (2.36in) dia face, <8° beam angle
dB Transducer Series
Non-contacting ultrasonic transducers for level measurement
The Pulsar dB Transducer Series are ultrasonic transducers that can measure level in a wide range of liquids, powders and solids as well as open channel flow applications. The dB Transducers have a compact, low power transducer design that can be I.S. certified and uses standard interconnecting cables, yet produces extremely high acoustic power to give exceptional results in a wide variety of challenging situations. All transducers also have flammable atmosphere approval as standard. dB Transducers can be teamed with any of Pulsar's control units to create the perfect solution for your application.
Applications:
- liquids, powders and solids level measurement
- open channel flow measurement
- corrosive applications
- dry dusty environments
- risk of submergence applications
| DATA APPLICABLE TO ALL TRANSDUCERS: | |
|---|---|
| Operating temperature range: | -40ºC to +90ºC (-40ºF to +194ºF) (dB3: -30ºC to +90ºC) (Hazardous area versions +75ºC/+167ºF max) |
| Hazardous area approval:/ | Standard ATEX (Ex II 2GD EEx m II T6 Tamb=-40ºC to +75ºC) or optional (Ex II 1GD EEx ia IIC T6 Tamb=-40ºC to +75ºC). (FM/FMC approved available) N.B. not dB50 |
| IP Rating: | IP68 to BS En 60068-2-17: 1995 and BS EN 60529 (Nema 6P available) |
| Integral cable lenth: | Standard 5, 10, 20 or 30m |
| CE Approvals: | See EC Declaration of Conformity in the manual |
| Bump, shock and vibration: | BS EN 60068-2-29, BS EN 60068-2-27 and BS EN 60068-2-6 |
| HOUSING DETAILS: | |
| dB3: | Valox 357 PBT 78mm/3.07in dia x 115mm/4.52in BSP or 1"NPT mounting connection |
| dB6: | Valox 357 PBT 86mm/3.39in dia x 104mm/4.09in BSP or 1"NPT mounting connection |
| dB10: | Valox 357 PBT 86mm/3.39in dia x 104mm/4.09in BSP or 1"NPT mounting connection |
| dB15: | Valox 357 PBT 86mm/3.39in dia x 122mm/4.8in BSP or 1"NPT mounting connection |
| dB25: | Valox 357 PBT 105mm/4.13in dia x 142mm/5.59in BSP or 1"NPT mounting connection |
| dB40 & dB50: | Valox 357 PBT 205mm/8.07in dia x 223mm/8.77in BSP or 1"NPT mounting connection |
| OPTIONAL FLANGES - All have PTFE full face on process side: | |
| dB6: | ANSI 2", 3", 4", 6" 8", DIN 50, 80, 100, 150, 200, Sanitary 3" |
| dB10: | ANSI 2", 3", 4", 6" 8", DIN 50, 80, 100, 150, 200, Sanitary 3" |
| dB15: | ANSI 3", 4", 6" 8", DIN 80, 100, 150, 200 |
| OPTIONS - See also dB Transducer Accessories: | |
| Facings: | Closed cell soft foam for increased power in dry dusty environments, PTFE standard on all flanged transducers for chemical compatibility |
| Submergence shield: | For continuous operation in applications at risk of submergence |
| Beam aiming kit: | Recommended for easy transducer aiming in solids applications |
