DAB EVOPLUS 60/180 M 1½" 180mm Variable Speed Heating Circulator Pump 230V 60150939 #5021

DAB EVOPLUS 60/180 M 1½" Variable Speed Heating Circulator Pump 230V 180mm 60150939 #5021

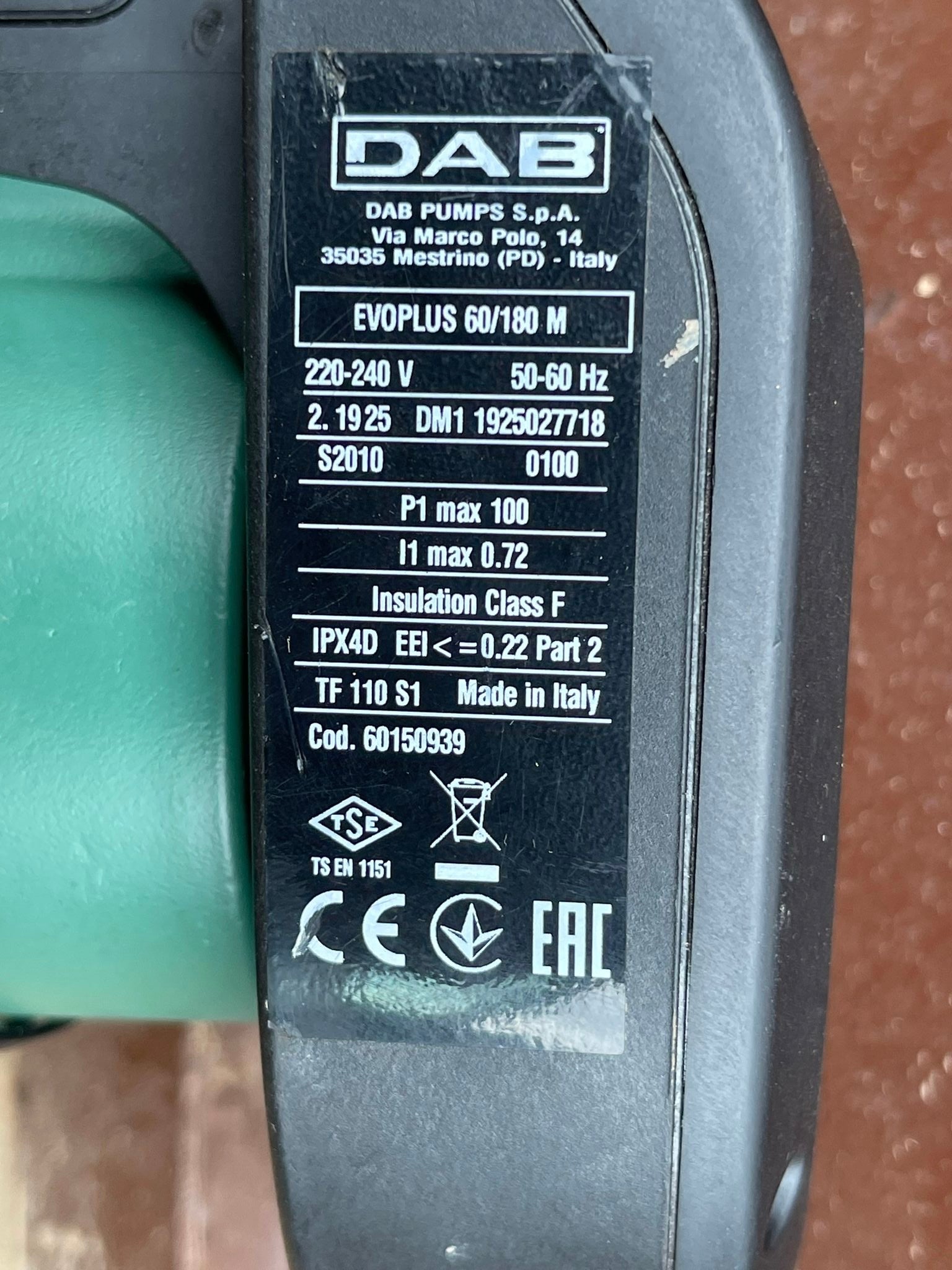

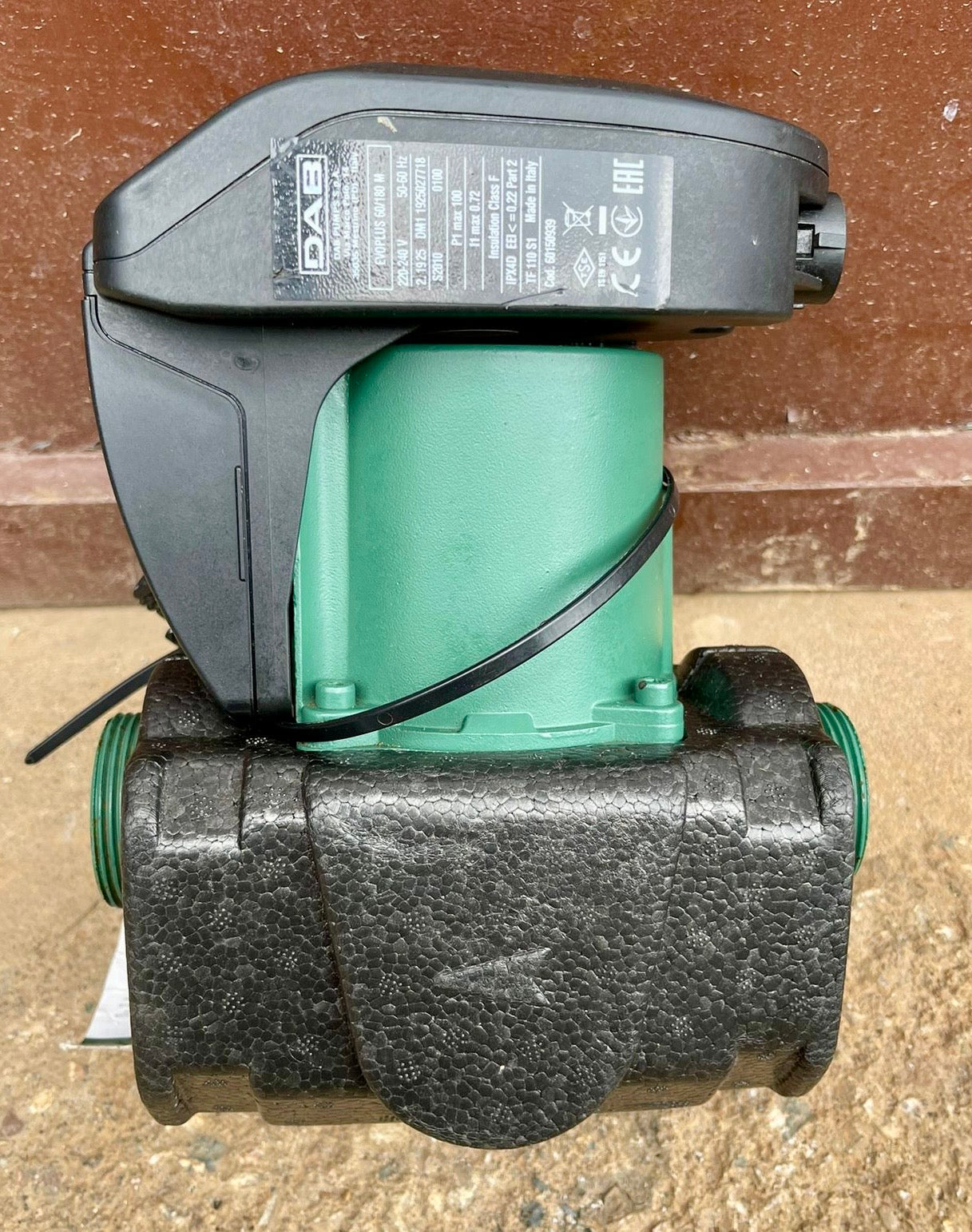

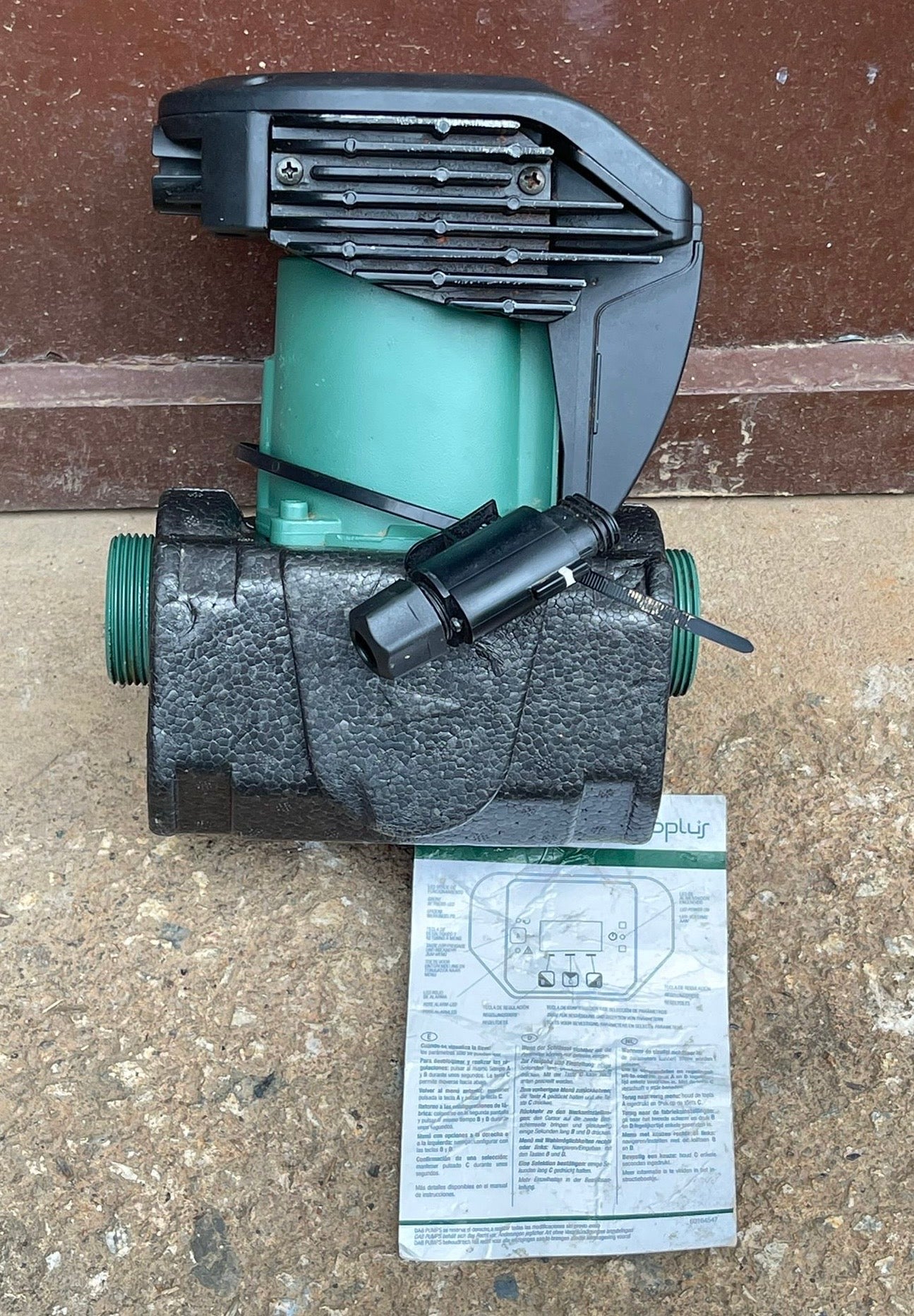

This listing is for a DAB EVOPLUS 60/180 M high-efficiency electronically controlled heating circulator pump, product number 60150939. Part of the DAB EVOPLUS SMALL range, it features G 1½ threaded connections, a 180 mm installation length and a single-phase 220–240V electrical supply.

The EVOPLUS 60/180 M is designed for circulating clean water in domestic and commercial heating, cooling and HVAC systems. Its high-efficiency permanent-magnet motor and integrated variable-frequency drive automatically adjust the pump speed to suit changing system requirements.

With a maximum head of 6 metres, a maximum flow rate of approximately 7 m³/h (1.94 L/s) and a maximum electrical input of just 100W, this circulator provides an energy-efficient alternative to older fixed-speed heating pumps.

The integrated graphical display allows the installer to select proportional-pressure, constant-pressure or constant-curve operation and adjust the pump's performance to match the heating system.

Condition: Supplied in as-new surplus condition. The pump has not been installed or used but may show minor cosmetic marks from storage and handling.

Guarantee: Supplied with a 2-year guarantee.

Technical Specifications

• Manufacturer: DAB Pumps
• Model: EVOPLUS 60/180 M
• Alternative range designation: EVOPLUS SMALL 60/180 M
• Manufacturer product number: 60150939
• Stock code: #5021
• Pump type: High-efficiency electronically controlled wet-rotor circulator
• Pump configuration: Complete single-head circulator
• Motor type: High-efficiency permanent-magnet synchronous motor
• Speed control: Integrated variable-frequency drive / inverter
• Maximum head: 6 metres
• Maximum flow: 7 m³/h / approximately 1.94 L/s
• Electrical supply: Single-phase 220–240V AC, 50/60Hz
• Nominal UK supply: 230V / 240V single-phase
• Maximum electrical power input P1: 100W / 0.10 kW
• Nominal current: 0.72A
• Maximum speed reference: Approximately 2900 rpm
• Energy Efficiency Index: EEI ≤ 0.22
• Connection type: Threaded union connections
• Inlet connection: G 1½ male thread
• Outlet connection: G 1½ male thread
• Nominal pipe size: DN25 / approximately 1-inch pipework when used with suitable unions
• Port-to-port installation length: 180 mm
• Maximum operating pressure: 16 bar / 1.6 MPa
• Liquid temperature range: -10°C to +110°C
• Temperature class: TF110
• Maximum ambient temperature: +40°C
• Enclosure protection: IP44
• Motor insulation class: F
• Motor protection: Integrated electronic protection; no separate motor overload protector required
• Control mode 1: Proportional differential pressure
• Control mode 2: Constant differential pressure
• Control mode 3: Constant curve / adjustable fixed-speed operation
• Display: Integrated graphical LCD control panel
• Display information: Head, estimated flow, speed, power and operating hours
• Alarm monitoring: Electronic fault indication and stored alarm history
• Pump housing material: Cast iron 250, UNI ISO 185
• Impeller material: Technopolymer
• Motor shaft: Alumina ceramic
• Sealing material: EPDM
• Motor casing: Die-cast aluminium
• Closing flange: Stainless steel
• Mechanical shaft seal: None – glandless wet-rotor construction
• Permitted ethylene glycol concentration: Up to 30%, subject to operating conditions
• Manufacturer noise reference: ≤33 dB(A) for the EVOPLUS SMALL range
• Overall height: Approximately 224 mm
• Maximum body width: Approximately 124 mm
• Motor/control projection: Approximately 204 mm
• Net weight: Approximately 4.5 kg
• Primary application: Heating, cooling and clean-water circulation
• Condition: As-new surplus / unused
• Guarantee: 2 years

Performance note: Maximum flow and maximum head are separate operating limits and are not achieved simultaneously. The actual operating point depends on the selected control mode, setpoint and system resistance.

Connection note: The G 1½ measurement refers to the external union threads on the pump. This is normally associated with DN25 / 1-inch pipework using suitable pump unions. The thread size should not be confused with the nominal pipe diameter.

Need help confirming suitability?
Call us on 01803 220416 for technical advice or assistance identifying a replacement heating circulator.

Manufacturer Product Information

The DAB EVOPLUS SMALL range, including operating modes, construction and applications, is described on the official manufacturer website:

View DAB EVOPLUS SMALL Manufacturer Product Information

Technical Documentation

DAB EVOPLUS 60/180 M – Product-Specific Technical Datasheet

Includes the performance curves, motor specifications, electrical consumption, construction materials, installation dimensions and connection details for product number 60150939.

View DAB EVOPLUS 60/180 M Datasheet, Performance Curves and Dimensional Drawing

DAB EVOPLUS SMALL – Installation and Operating Instructions

Original DAB installation manual covering electrical connections, pump orientation, control modes, display configuration, glycol compatibility, commissioning and fault codes.

View DAB EVOPLUS SMALL Installation and Operating Manual

Typical Applications

• Domestic central-heating circulation
• Commercial central-heating systems
• Boiler primary and secondary circulation
• Heating distribution circuits
• Radiator systems with thermostatic radiator valves
• Underfloor heating circulation
• Commercial HVAC installations
• Air-conditioning and chilled-water circulation
• Compatible heat-pump heating circuits
• Clean closed-loop water circulation
• Replacement of compatible 180 mm threaded heating circulators
• Upgrading older fixed-speed circulators to variable-speed operation

Frequently Asked Questions

What is the DAB EVOPLUS 60/180 M used for?

The DAB EVOPLUS 60/180 M is a high-efficiency heating and cooling circulator designed to move water around closed-loop heating and HVAC systems.

Unlike a conventional fixed-speed circulator, it uses an electronically controlled motor that can adjust its speed according to the requirements of the system.

This makes it particularly useful in heating systems where the flow requirement changes as thermostatic radiator valves, zone valves or other controls open and close.

What does EVOPLUS 60/180 M mean?

• EVOPLUS: DAB high-efficiency electronically controlled circulator range.
• 60: Maximum head class of approximately 6 metres.
• 180: Port-to-port installation length of 180 mm.
• M: Manufacturer's designation for this threaded pump configuration.

The product is also included in DAB's EVOPLUS SMALL range.

What is the maximum flow rate and head?

The manufacturer specifies a maximum head of 6 metres and a maximum flow rate of approximately 7 m³/h (1.94 L/s).

The pump does not produce maximum flow and maximum head simultaneously. At higher flow rates, the available head decreases according to the selected operating curve.

The integrated variable-speed control allows the pump to operate at different points within its performance envelope, making it easier to match the circulating pressure to the system.

The manufacturer's performance curves are provided in the technical datasheet linked above.

What size are the connections?

This pump has G 1½ male threaded connections on both the inlet and outlet.

These are the threads used to secure the pump's union connections. The corresponding nominal pipe size is normally DN25 / 1 inch when suitable unions are fitted.

The pump has a 180 mm port-to-port installation length, making it suitable for replacing many existing threaded circulators with matching dimensions.

Important: Check the existing union connections and sealing arrangement before ordering. The G 1½ thread size does not mean the connected pipework itself must be 1½ inches in diameter.

What control modes are available?

The DAB EVOPLUS SMALL range offers three principal control modes:

• Proportional differential pressure: Automatically reduces or increases pump head as the system's flow demand changes. Particularly useful for variable-flow heating systems with thermostatic radiator valves.
• Constant differential pressure: Maintains a selected differential pressure as the flow requirement changes. Suitable for systems requiring a more stable pressure.
• Constant curve: Operates according to a selected speed characteristic, allowing the installer to set the pump speed as a percentage of its available range.

The required mode and setpoint are selected using the integrated graphical display.

Additional functions may be available with compatible optional expansion modules, depending on the pump configuration.

Which control mode should I use for central heating?

For many conventional radiator systems with thermostatic radiator valves, proportional-pressure control is a suitable starting point.

As radiator valves close and the system requires less water, the circulator reduces the pressure it generates. This can help reduce unnecessary energy consumption and noise from valves and pipework.

Constant-pressure control may be more appropriate for certain underfloor heating, mixing or low-pressure-loss circulation systems.

Constant-curve operation is useful where a relatively constant flow rate or a particular fixed-speed characteristic is required.

The correct setting depends on the system design and should be adjusted during commissioning.

How much electricity does this circulator use?

The manufacturer specifies a maximum electrical input of approximately 100W for this model.

Actual power consumption varies with the selected operating mode, pump speed and hydraulic duty.

When the system requires less circulation, the integrated electronic controller can reduce motor speed and electrical consumption.

The EVOPLUS 60/180 M has an Energy Efficiency Index of EEI ≤ 0.22, identifying it as a high-efficiency electronically controlled circulator.

Does this pump have a display?

Yes. The DAB EVOPLUS SMALL range incorporates a graphical LCD display with navigation buttons.

The display allows the installer to select operating modes, adjust setpoints and inspect operating information.

Depending on the selected display page, the pump can show information such as:

• Operating head in metres
• Estimated flow rate in m³/h
• Motor speed in rpm
• Electrical power in watts
• Accumulated operating hours
• Alarm and fault information

The indicated flow rate is an electronic estimate rather than a measurement from a separate physical flowmeter.

Can the pump be controlled by an external BMS or PLC?

The EVOPLUS SMALL range supports optional expansion modules that provide additional control and communication functions.

Depending on the installed module, these can include external control signals and additional system interfaces.

Do not assume that 0–10V, PWM or building-management connections are included as standard on this particular pump.

If external control is required, check the fitted electronic module and the corresponding DAB documentation. Optional expansion accessories are not included unless shown in the product photographs.

What is the difference between DAB EVOPLUS and EVOPLUS SMALL?

EVOPLUS SMALL is the more compact part of the DAB EVOPLUS circulator family, designed for smaller domestic and commercial heating applications.

The larger EVOPLUS range includes pumps with higher flow and head capabilities, generally using flanged connections for larger commercial systems.

The EVOPLUS 60/180 M is part of the EVOPLUS SMALL family, offering 6 metres maximum head and threaded connections with a 180 mm installation length.

Can this replace an older fixed-speed heating circulator?

Potentially, yes. The EVOPLUS 60/180 M is a useful option for replacing an older circulator where the connection dimensions, hydraulic performance and electrical supply are compatible.

The main dimensions are:

• Installation length: 180 mm
• Pump union threads: G 1½
• Nominal connection family: DN25
• Electrical supply: 230V / 240V single-phase
• Maximum head: 6 metres

DAB's historical circulator interchange information identifies this product as a replacement option for selected older DAB pumps, including the AC 65/180 and A 50/180 ranges.

However, older versions may have different electrical supplies, so an installation using a three-phase motor may require electrical alterations.

Replacement suitability must be confirmed against the existing pump's full hydraulic and electrical specification.

Can this replace a Grundfos UPS 25-60 or another 180 mm circulator?

It may be a suitable alternative to certain Grundfos UPS, ALPHA or similar 180 mm threaded circulators, provided the pump duty, electrical supply and connection arrangement match.

Many DN25 threaded heating circulators use G 1½ union threads and a 180 mm installation length, making physical replacement possible without major pipework changes.

However, matching the dimensions alone does not establish hydraulic equivalence.

The required flow, available head, operating temperature, system pressure and electrical arrangement should be compared before replacement.

What liquids can this pump circulate?

The EVOPLUS 60/180 M is intended for clean, non-aggressive heating and cooling water without solid particles or fibres.

Suitable duties include:

• Clean central-heating water
• Commercial heating-system water
• Clean cooling water
• Compatible closed-loop HVAC water
• Suitable inhibited water-glycol mixtures

The pump is not designed for sewage, wastewater, sludge, abrasive solids, mineral oils, petroleum fuels or aggressive chemicals.

DAB recommends using magnetic dirt and sludge separators to protect circulator components from contamination.

Can this pump be used with glycol or antifreeze?

Yes. The DAB EVOPLUS SMALL installation manual permits ethylene glycol mixtures up to a maximum concentration of 30%, subject to the manufacturer's operating conditions.

Glycol increases liquid viscosity, particularly at lower temperatures. This can affect hydraulic performance, motor loading and circulation efficiency.

The mixture must also be compatible with the pump's wetted materials, including its cast-iron housing, technopolymer impeller and EPDM seals.

Do not exceed the manufacturer's permitted glycol concentration or assume that all antifreeze formulations are suitable.

What temperature and pressure can this pump handle?

The manufacturer specifies a liquid temperature range of -10°C to +110°C and a maximum operating pressure of 16 bar.

The lower temperature limit applies only where the pumped liquid has adequate freeze protection and remains compatible with the pump.

The 16-bar specification refers to the maximum permissible system operating pressure. It does not mean the circulator can generate 16 bar of differential pressure.

With approximately 6 metres maximum head, the pump generates a maximum differential pressure of around 0.6 bar when pumping water.

System pressure and liquid temperature must remain within the manufacturer's limits.

What about minimum inlet pressure and cavitation?

Like other wet-rotor circulators, the EVOPLUS requires sufficient pressure at its inlet to prevent cavitation and maintain correct bearing lubrication.

The minimum inlet-pressure requirement becomes more important as water temperature increases.

Insufficient inlet pressure can cause noise, reduced performance and premature wear or damage to the rotor and bearings.

DAB provides the following minimum suction-pressure guidance:

The installation manual also specifies a general minimum working pressure of 0.1MPa (1 bar).

When replacing an existing pump, check the system's static pressure, operating temperature and the manufacturer's minimum-pressure guidance before commissioning.

Does this pump have a mechanical shaft seal?

No. The EVOPLUS is a glandless wet-rotor circulator.

The pump uses a canned-rotor construction rather than the conventional mechanical shaft seal fitted to dry-rotor centrifugal pumps.

The pumped liquid provides lubrication and cooling for the wet-rotor components. The pump must therefore be correctly filled and vented and must not be operated dry.

Is this suitable for domestic hot-water circulation?

This model has a cast-iron pump housing and is intended primarily for closed-loop heating and cooling systems.

It should not automatically be selected for potable domestic hot-water circulation.

DAB manufactures the EVOPLUS SMALL SAN range with bronze pump housings specifically for domestic hot-water applications.

For drinking-water or domestic hot-water circulation, a correctly approved pump with suitable corrosion-resistant materials should be used.

How should the DAB EVOPLUS be installed?

The circulator must be installed with its motor shaft horizontal.

DAB also specifies that the electronic control unit should remain in the correct vertical position. Where necessary, the motor/head assembly can be rotated in accordance with the manufacturer's installation instructions.

Other important installation requirements include:

• Check the direction-of-flow arrow on the pump housing.
• Flush the system before installing the new circulator.
• Install suitable isolation valves for future maintenance.
• Ensure that the system is correctly filled and pressurised.
• Use suitable union seals and fittings.
• Avoid allowing water or condensation to drip onto the electronic controller.
• Do not cover or insulate the electronic control unit.
• Do not run the pump dry.

Electrical installation should be carried out by a competent person in accordance with the manufacturer's instructions.

Does this circulator need external motor protection?

No separate motor overload protector is normally required. The EVOPLUS SMALL incorporates electronic motor protection.

However, the electrical installation must still have appropriate isolation, earthing and circuit protection.

The integrated electronic controller contains capacitors that can retain hazardous voltage after the mains supply has been disconnected. The manufacturer's safety instructions must be followed before servicing.

Does the EVOPLUS have fault codes and alarm history?

Yes. The electronic controller monitors several operating conditions and can display fault codes.

The manufacturer's manual identifies faults relating to:

• Supply voltage outside the permitted range
• Blocked pump or excessive current
• Dry-running conditions
• Excessive motor temperature
• Electronic control overheating
• Internal electronic faults

The display also provides access to an alarm history, helping installers identify recurring operating problems.

For example, fault code E42 is associated with dry-running operation, while E39–E40 can indicate pump blockage or overcurrent protection.

Always refer to the DAB installation manual for the exact fault interpretation and recommended corrective action.

Is this a complete pump or replacement motor head?

This listing is for the complete DAB EVOPLUS 60/180 M circulator, including the hydraulic pump body, motor and integrated electronic controller.

It is not a replacement motor head sold separately.

Union nuts, gaskets, pipework adapters and other installation accessories are only included where specifically shown in the product photographs.

What should I check before ordering?

• Existing pump model: Confirm the original model and manufacturer part number.
• Electrical supply: 220–240V single-phase, 50/60Hz.
• Connection size: G 1½ male threaded pump connections.
• Installation length: 180 mm.
• Maximum head: 6 metres.
• Maximum flow: Approximately 7 m³/h.
• System pressure: Within the manufacturer's operating limits.
• Liquid temperature: -10°C to +110°C, subject to liquid compatibility.
• Required control mode: Proportional pressure, constant pressure or constant curve.
• Installation orientation: Horizontal motor shaft and correctly positioned controller.
• Accessories: Check whether existing unions and gaskets can be reused.

If you are unsure whether this pump will replace your existing circulator, please send us photographs of the existing pump nameplate and pipework connections. We can help confirm the dimensions and technical suitability.

About Our Stock

Stock code: #5021

We specialise in supplying new and unused surplus commercial pumps, heating circulators and obsolete pumping equipment from manufacturers including DAB, Grundfos, Wilo and Lowara.

This DAB EVOPLUS 60/180 M is supplied in as-new surplus condition and may show minor cosmetic marks from storage and handling.

Supplied with a 2-year guarantee.

Please check the connection size, installation length, electrical supply and required hydraulic performance before purchasing.

Technical assistance: 01803 220416.
