Condition: Unfitted and Unused. Some marks and surface rust from storage.
will ship internationally please call or email for quote
email me at info@thepumpdealer.co.uk

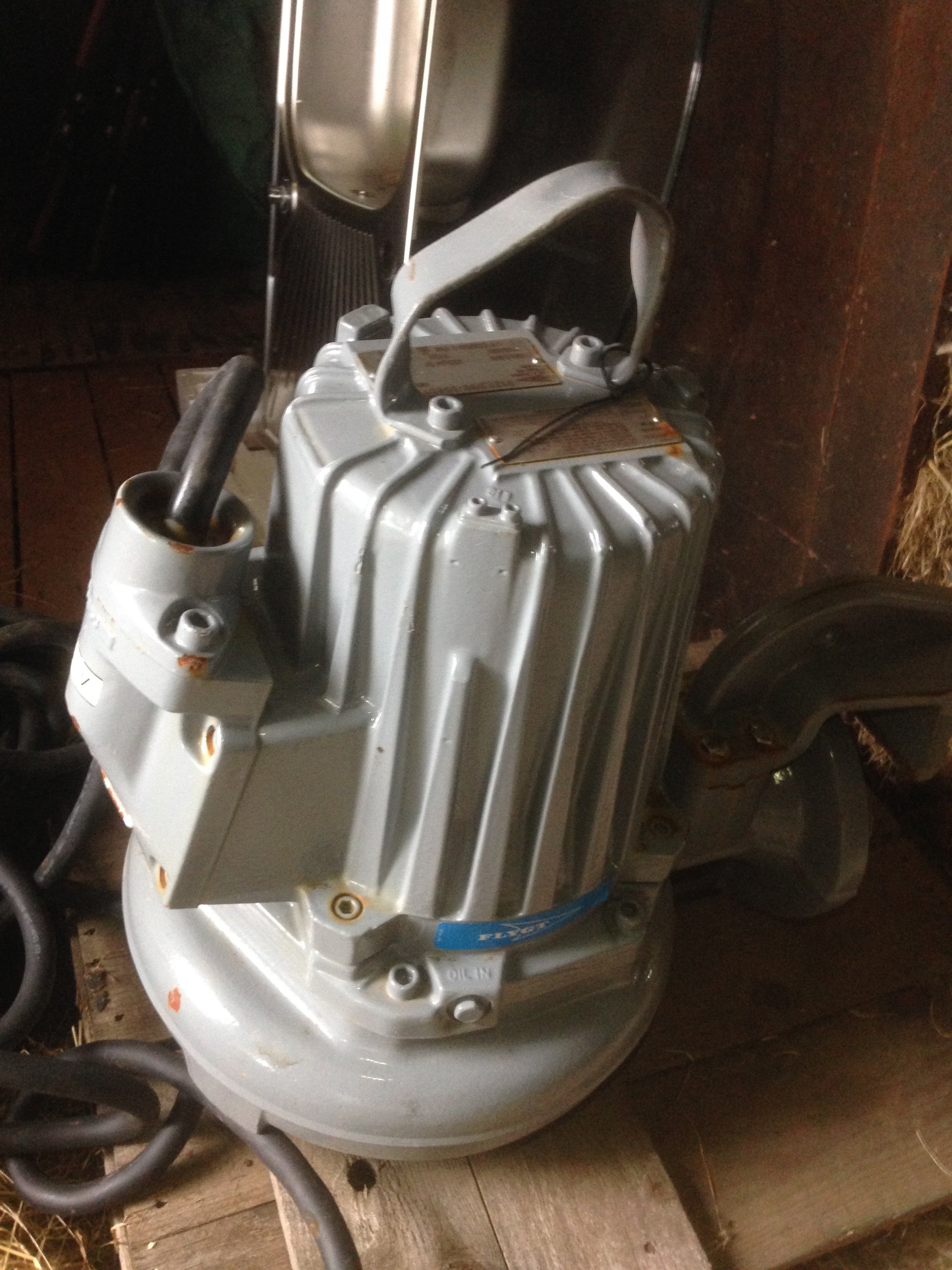

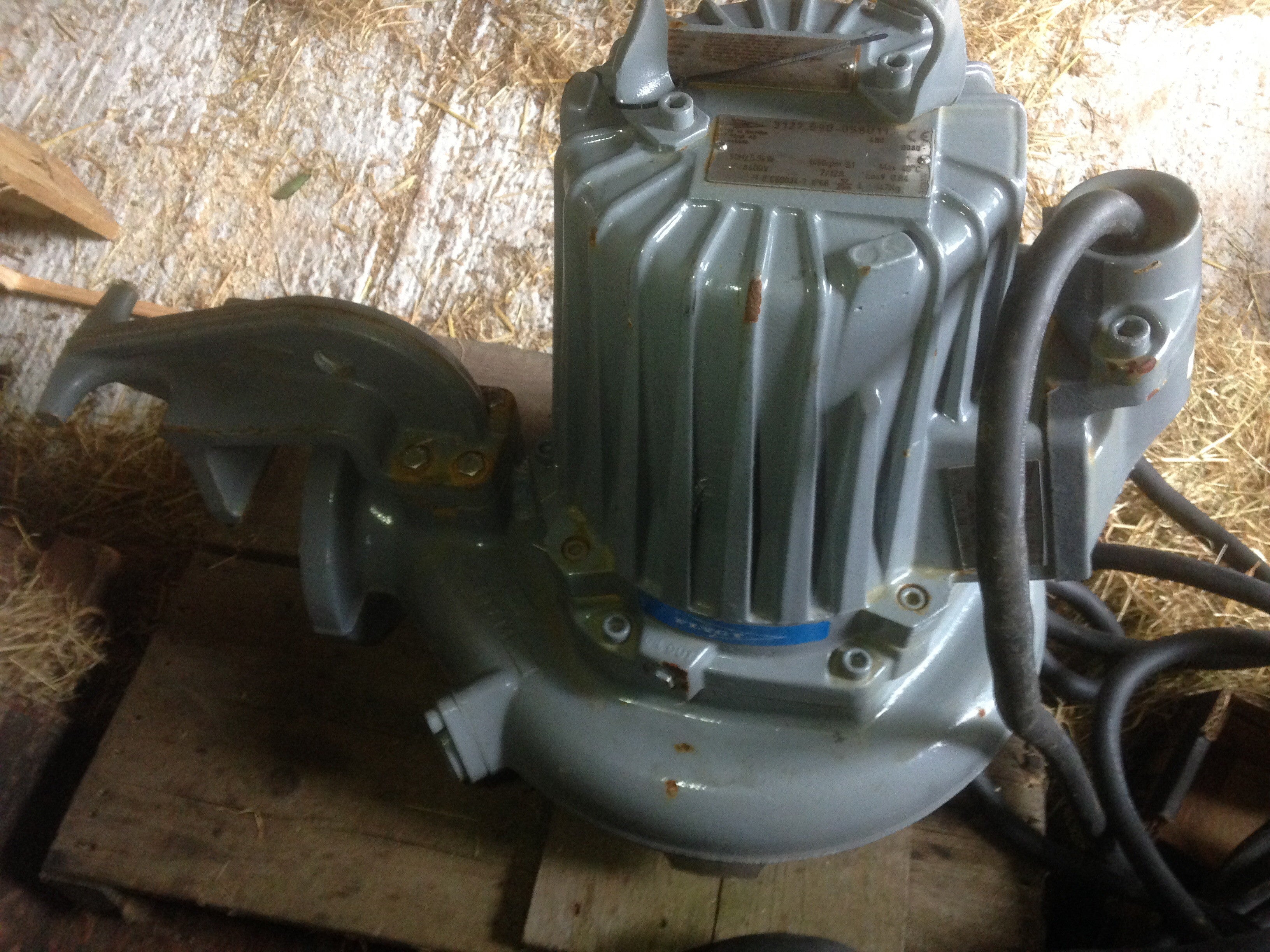

Submersible pump for pumping clean water, surface water and waste water containing solids or fibred material.
The pump can be used in the following installations:

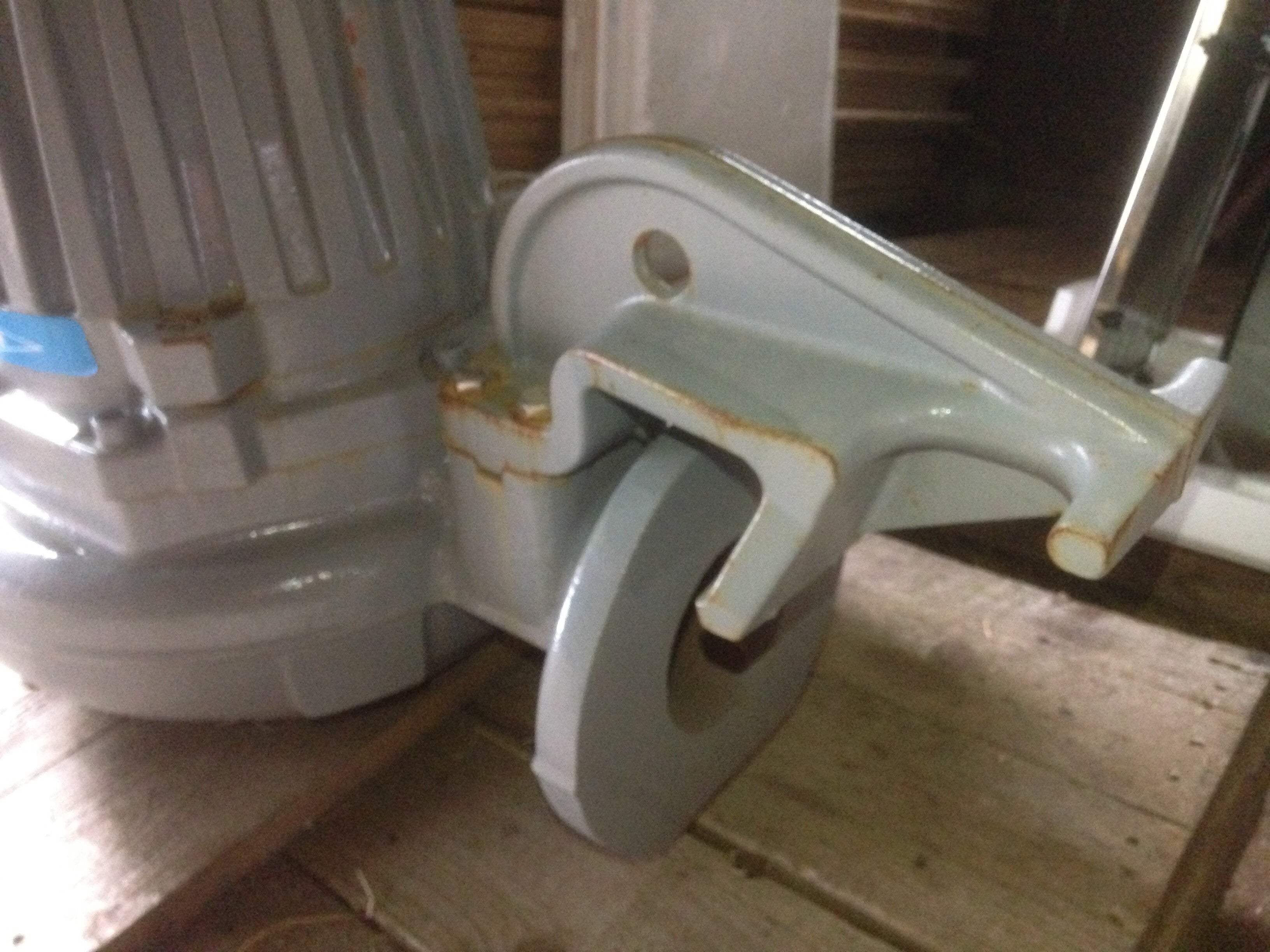

P Semi permanent, wet well arrangement with pump installed on two guide bars with automatic connection to discharge
explosion proof version
Motor data:
Feature Description
Motor type Squirrel-cage induction motor
Frequency 50 Hz
Power supply 3-phase
Starting method • Direct on-line • Star-delta
Number of starts per hour Maximum 30
Code compliance IEC 60034-1
Rated output variation ±10%
Voltage variation • Continuously running: Maximum ±5%
• Intermittent running: Maximum ±10%
Voltage imbalance
between phases Maximum 2%
Insulation class H (180°C, 356°F)
Rated Power 5.9 KW
Rated Power 7.9 HP
Curve/impeller no 480
RPM 1450
Rated Current 12A
Starting Current 77A
Power factor, cos φ .84
Impeller throughlet 76mm
Installation P,S
Technical guides:
http://www.swedepump.by/files/1546814.pdf
http://www.aquanvk.ru/upload/iblock/da4/da4f3f346276e9a9020ef6b84df02904.pdf
