Flygt NS 3069.160 SH 274 1.5KW 240v Submersible Waste Pump DN65 #4914
£1,245.83GBP
inc VAT
Technical overview
About these figures
These figures provide simplified information for searching, filtering and initial comparison. They are not a complete specification. Exact details depend on the model and configuration.
Power rating: Usually the motor’s rated mechanical output (P2). Electrical input power (P1) is a different value. Check the product’s nameplate or manufacturer’s documentation to confirm which rating applies.
Outlet size: The nominal size class is expressed on a millimetre basis: for example, DN40 denotes a nominal 40 mm size. It does not specify the exact measured opening, connection type, thread, flange drilling or pressure rating.
Head and flow: Indicative figures describing the pump’s performance envelope, rather than a single operating duty point. Do not assume maximum flow is available at maximum head, or that every combination within the ranges is achievable. Minimum figures do not establish safe continuous operating limits. Consult the relevant performance curve.
Check the product description, nameplate and manufacturer’s documentation before selection or installation. Please contact us before purchasing if you need help confirming suitability or connection details.
| Nominal voltage | 240v |
| Rated power | 1.5 kW |
| Nominal outlet size (mm) | DN 65 |
| Shipping Weight | 75.0 kg |
| Package Dimensions | 60.0 × 80.0 × 80.0 cm |
| Indicative minimum head | 3.0 m head (0.3 bar) |
| Indicative maximum head | 16.0 m head (1.6 bar) |
| Indicative maximum flow | 13.5 L/s |

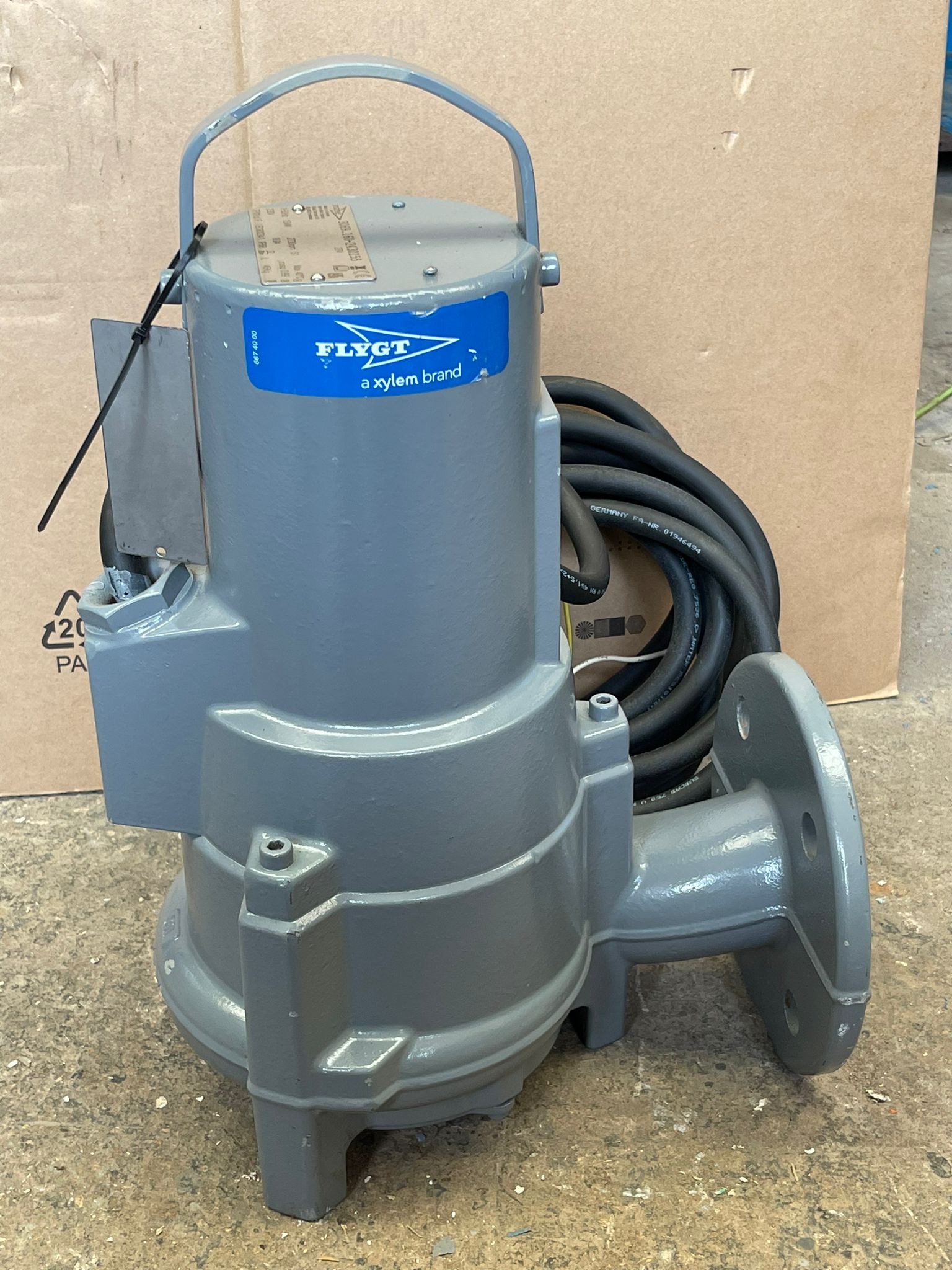

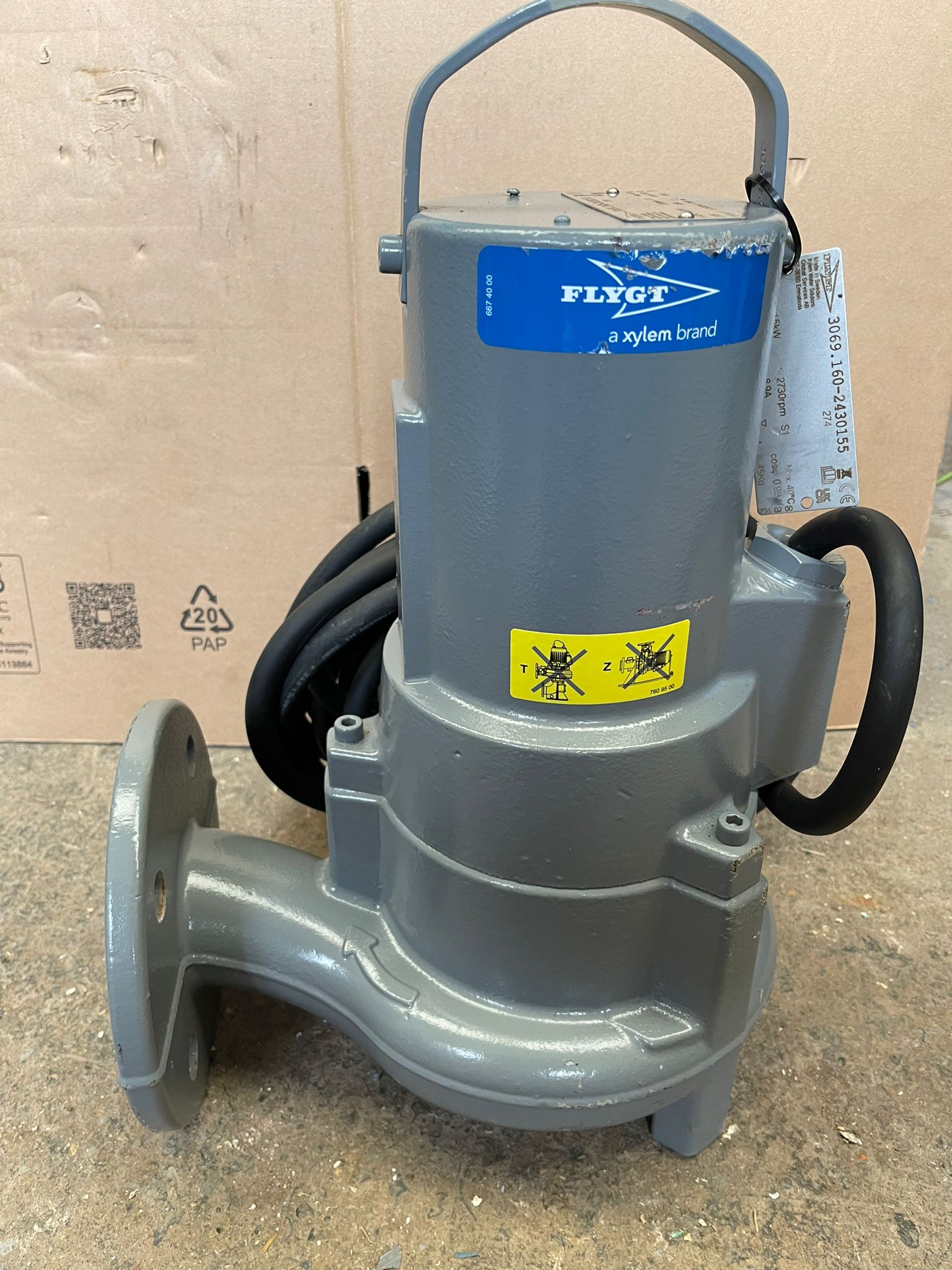

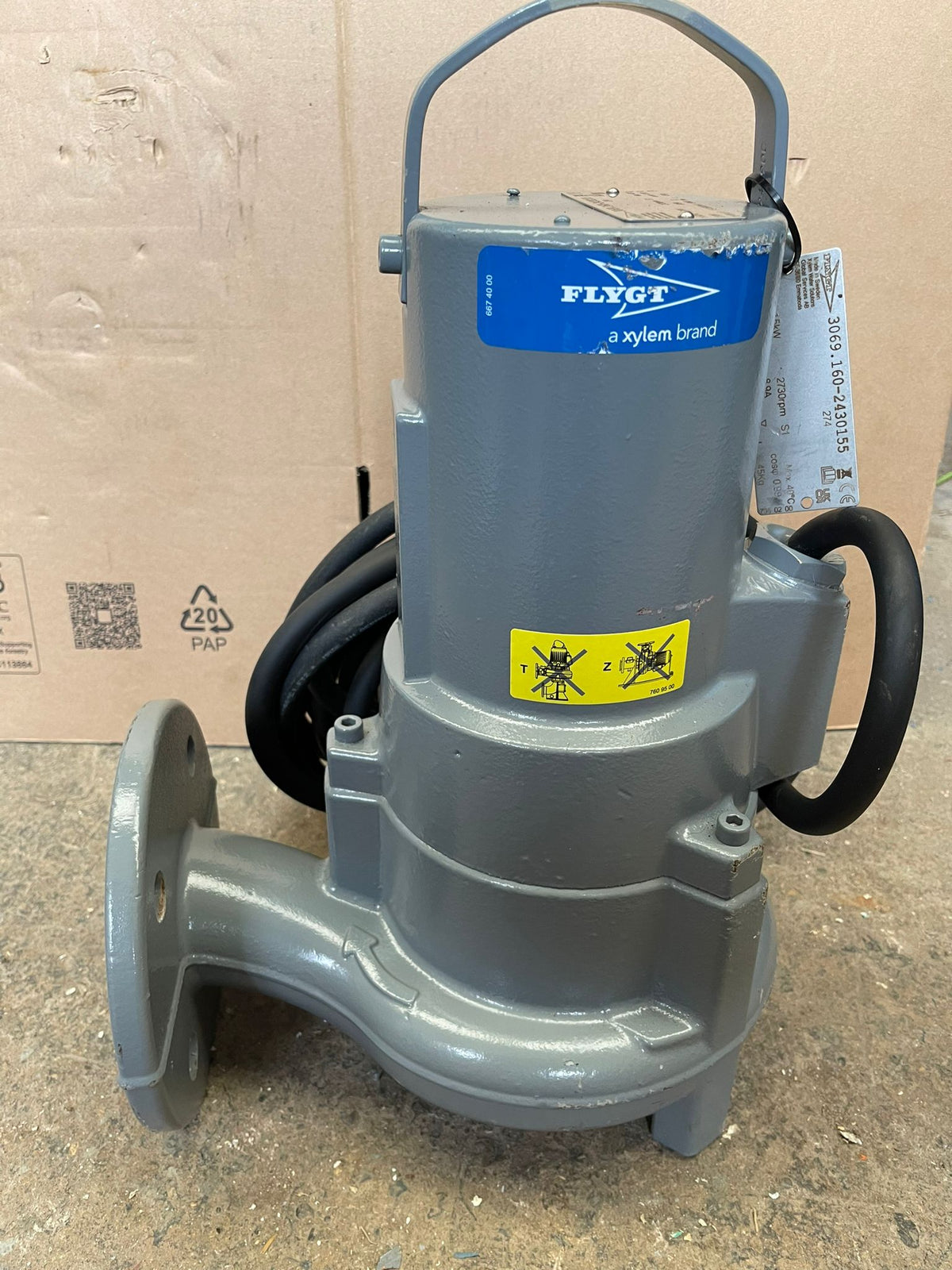

Flygt NS 3069.160 SH 274 – 1.5kW 230V Single-Phase Submersible Waste Water Pump (DN65) #4914
The Flygt NS 3069 is a compact submersible wastewater pump designed for efficient pumping of clean water, surface water and wastewater containing solids or long-fibered material. This unit is fitted with Flygt’s N hydraulic and is suited to wastewater and drainage duties where reliable solids handling and sustained performance are required.
Flygt is a premium pump manufacturer and part of the Xylem Group, widely recognised for producing high-quality wastewater and drainage pumps used globally.
This pump is supplied as new, unused surplus stock and has not been installed. Minor cosmetic marks may be present from storage.
- Flygt N high-efficiency wastewater hydraulic
- Suitable for wastewater containing solids and fibrous material

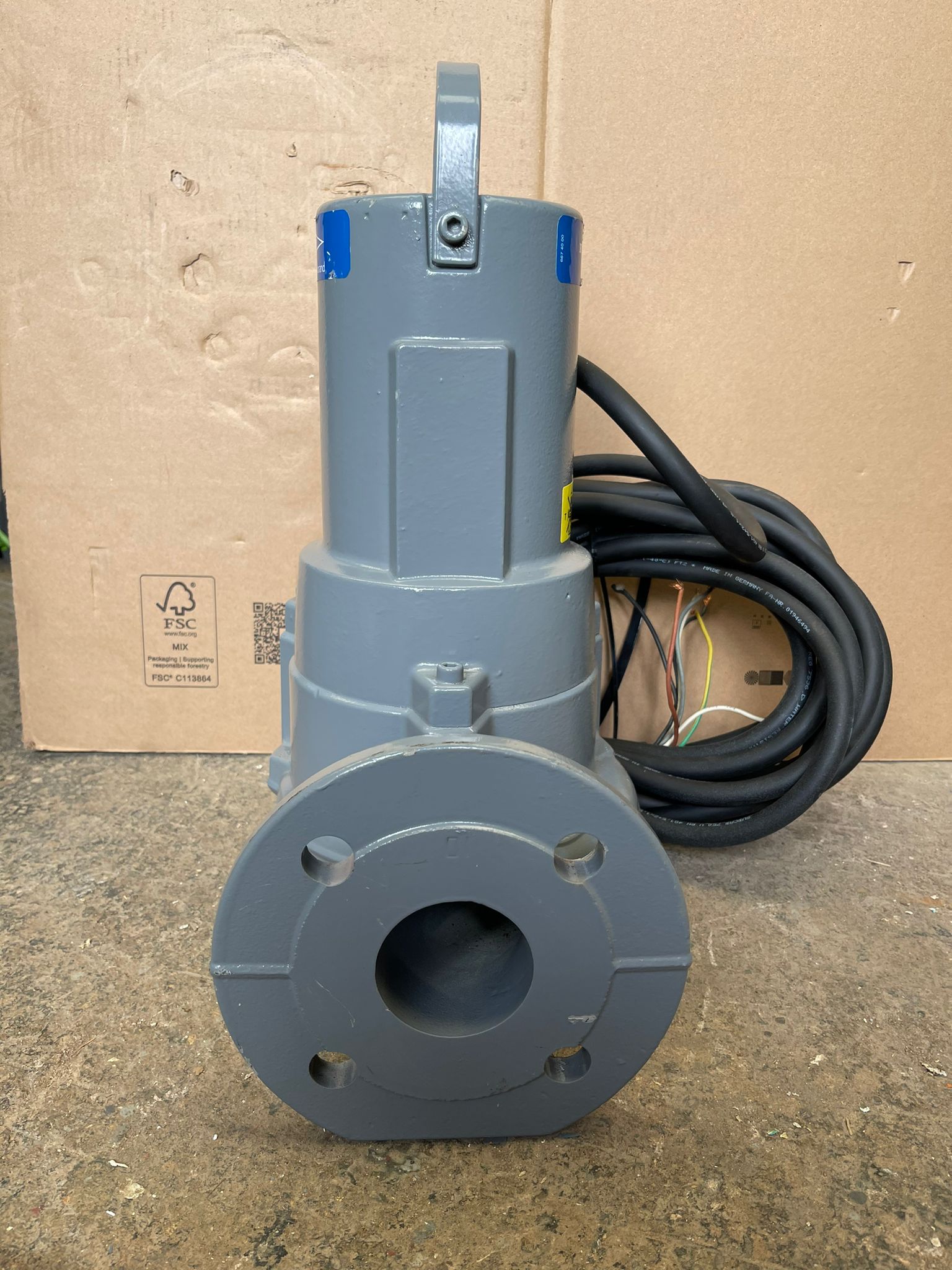

- DN65 discharge connection
- Portable / semi-permanent wet well installation
- 230V single-phase motor
- Standard non-explosion-proof version
- 2 year guarantee included
Need help confirming suitability?
Call us on 01803 220416 for technical advice.
Delivery & Shipping
- Next working day dispatch available (order before 4pm)
- Same-day courier available – please call for a quote
- UK and international delivery available
- International shipping costs confirmed after checkout
Manufacturer specification:
Full technical details for the Flygt 3069 range can be found in the manufacturer documentation:
View Flygt 3069 technical specification
Technical note – voltage:
This is a 230V, 50Hz, single-phase pump. The manufacturer data for this configuration lists a rated current of 8.9A and a start current of 28A.
A suitable pump control panel with the required start components and overload protection is required. This pump must not be connected directly to a standard mains supply like a normal plug-in appliance.

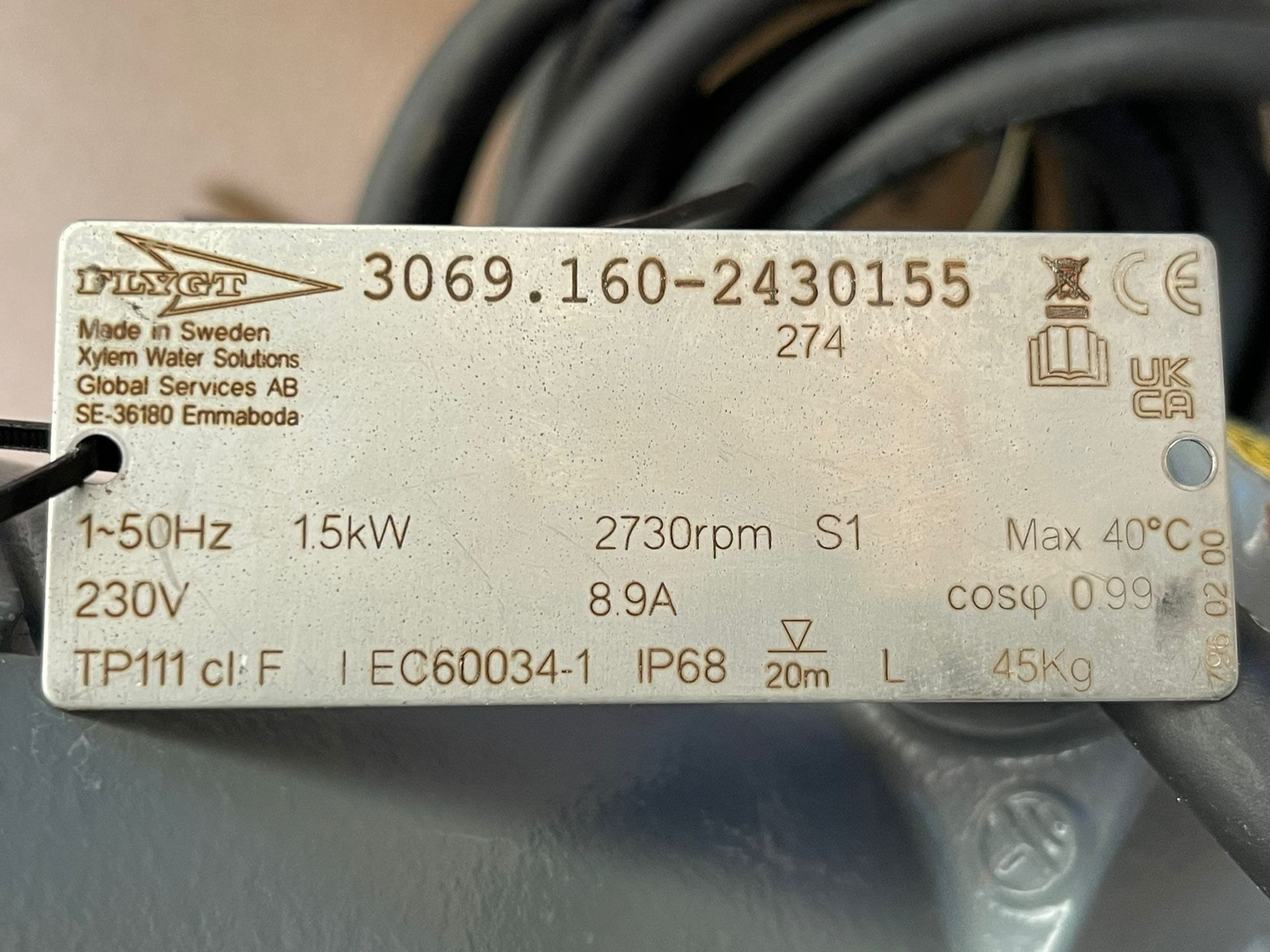

Electrical connection must always follow the motor nameplate and be carried out by a qualified electrician in accordance with manufacturer instructions.
Frequently Asked Questions
What does the model number mean?
- N – Flygt high-efficiency wastewater hydraulic design, developed to help keep flow paths clear and sustain performance in solids and long-fibre wastewater duties
- S – Portable / semi-permanent wet well arrangement with hose coupling or flange connection to the discharge pipeline
- 3069 – Pump model series
- .160 – Standard non-explosion-proof version
- SH – Super head pressure class designation
- 274 – Impeller code
What applications is this pump suitable for?
This model is intended for pumping wastewater containing solids and fibrous material, as well as clean water and surface water. It is commonly used in drainage and wastewater applications where a compact submersible pump is required and where the liquid may contain suspended solids or fibrous material.

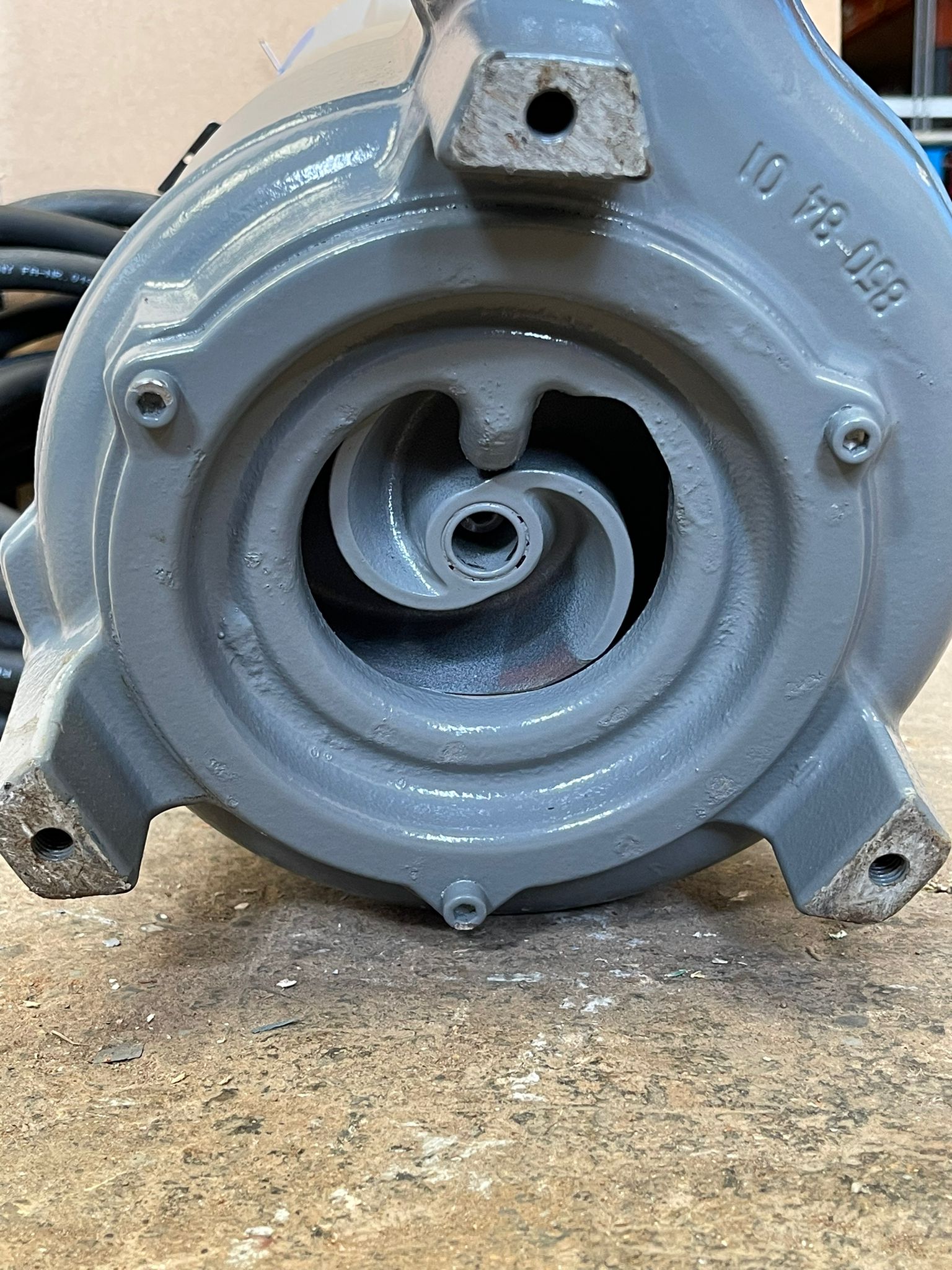

What is the Flygt N hydraulic?
Flygt’s N hydraulic is designed for wastewater duties where rags, fibres and suspended solids can cause problems for conventional impellers. The design aims to help maintain stable performance by reducing build-up and allowing solids and fibrous material to pass more reliably.
Does this single-phase pump need a control panel?
Yes. Although this is a 230V single-phase pump, it still requires a suitable pump control panel with the correct start components, motor protection and level control arrangement. It should not be wired directly to a standard mains supply like a household appliance.
How can this S version be installed?
The S configuration is intended for portable or semi-permanent wet well use. This pump is supplied with a DN65 discharge connection, allowing connection to suitable hose, pipework or flange-mounted accessories depending on the installation.
Please send photos of your existing discharge connection, pipework and installation arrangement and we can advise on compatibility before purchase.
Can this replace my existing Flygt pump?
In many cases, yes. If you provide your existing model number, duty point, voltage and installation details, we can help confirm whether this pump is suitable before purchase.
Do you offer technical support?
Yes — we provide free technical advice prior to purchase. Please call 01803 220416.
About Our Stock
We specialise in supplying new and unused surplus pumps, allowing us to offer premium equipment at highly competitive prices. All pumps are inspected prior to dispatch and supplied with guarantee.
Specification & guidance notice: Technical information and FAQ content are provided in good faith based on manufacturer literature and industry experience. Descriptions of hydraulic types and application suitability represent general guidance only and do not constitute a guarantee of performance. Actual results will depend on system design, pipework losses, media characteristics, and installation conditions. Please consult the manufacturer & thier documentation and satisfy yourself that the equipment is suitable for your specific application prior to purchase.
