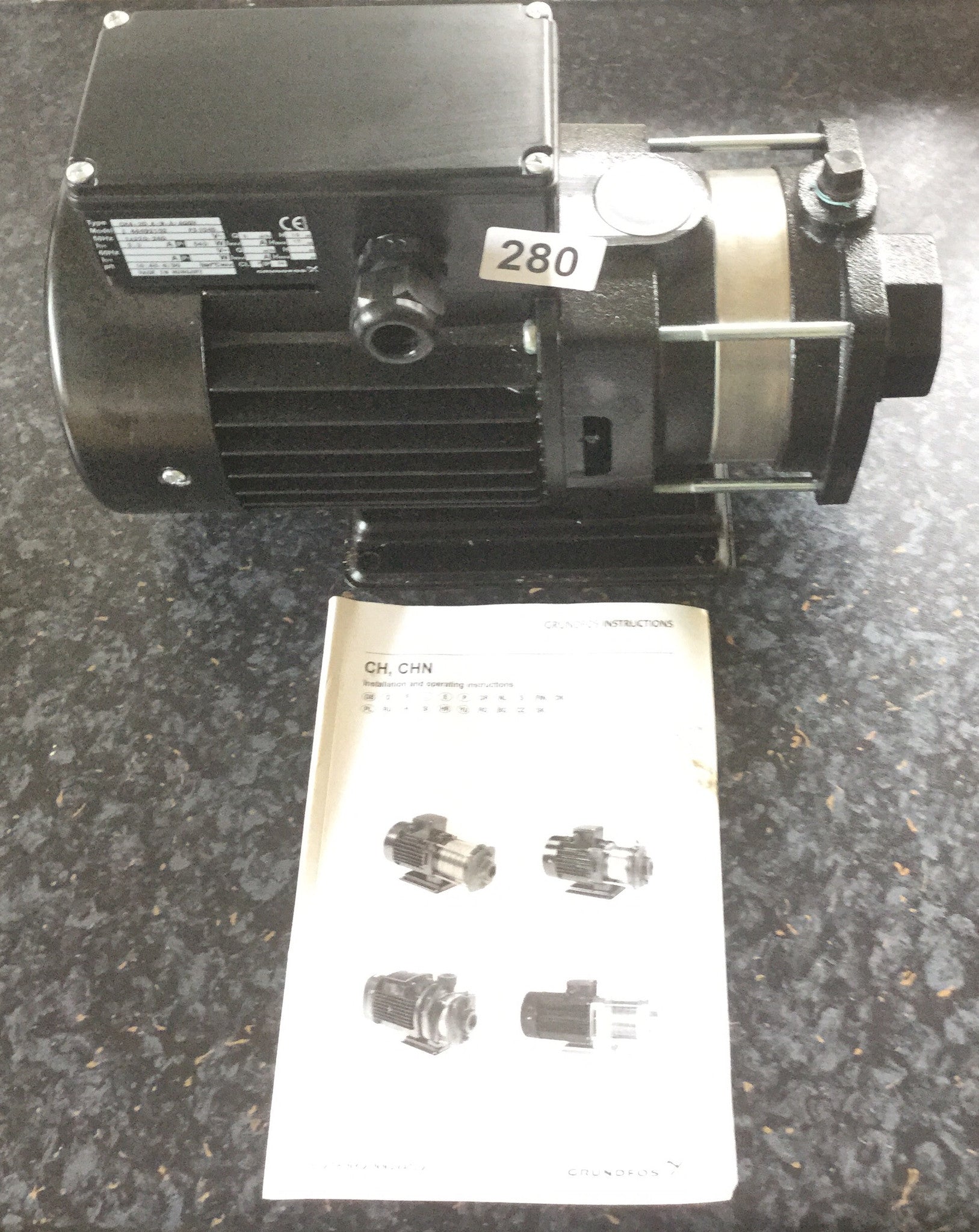

Grundfos CH4 20 Horizontal Multistage Pump 240v #280
£249.17GBP
inc VAT
Technical Information
| Shipping Weight | 10.0 kg |
6 Month guarantee on all of our used pumps
Please call us for free advice on replacement
We also take card payment over the phone
We buy and sell new and unused pumps
Can deliver for next day if ordered before 4pm
Same day delivery possible please call for a quote
MAJORITY OF OUR PUMPS ARE NEW, UNUSED, NEVER BEEN FITTED SURPLUS STOCK
Please call us for free advice on replacement
We also take card payment over the phone
We buy and sell new and unused pumps
Can deliver for next day if ordered before 4pm
Same day delivery possible please call for a quote
MAJORITY OF OUR PUMPS ARE NEW, UNUSED, NEVER BEEN FITTED SURPLUS STOCK
WORLDWIDE DELIVERY AVAILABLE
Internationally for free we ship to:
Aland Islands, Armenia, Austria, Belarus, Belgium, Bosnia And Herzegovina, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Faroe Islands, Finland, France, Georgia, Germany, Greece, Guernsey, Hungary, Iceland, Ireland, Isle Of Man, Italy, Jersey, Latvia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Republic Of, Moldova, Republic of, Monaco, Montenegro, Netherlands, Norway, Poland, Portugal, Romania, San Marino, Serbia, Slovakia, Slovenia, Spain (50 of 52 provinces), Sweden, Switzerland
For Free under 30kg
2-3 Day shipping internationally
Condition: Brand new without box
Specifications
| Product name | Hydromono 1 CH4-20 230V |
| Product No | 91040977 |
| EAN number | 5700392387981 |
| Price | On request |
| Technical | |
|---|---|

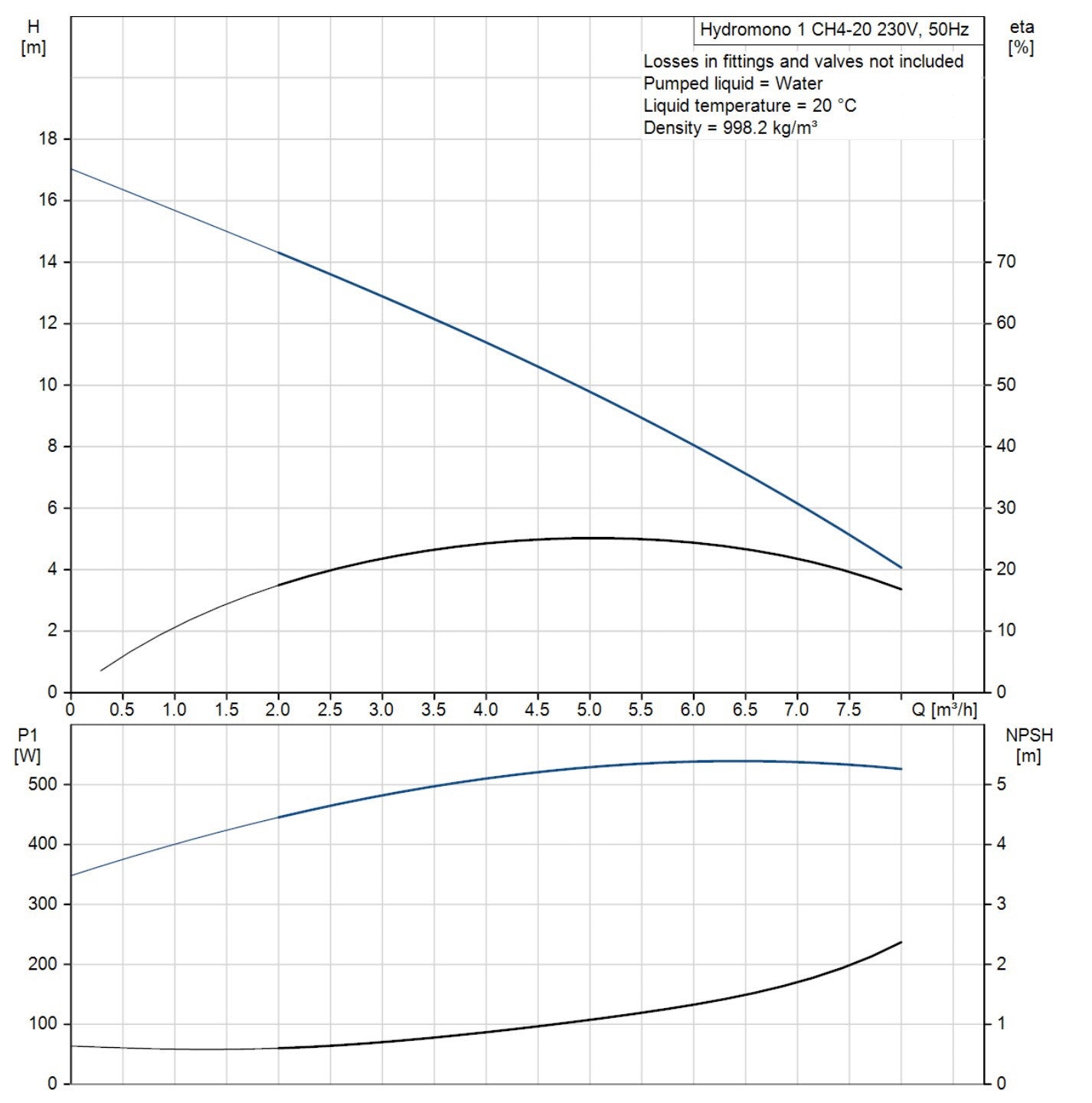

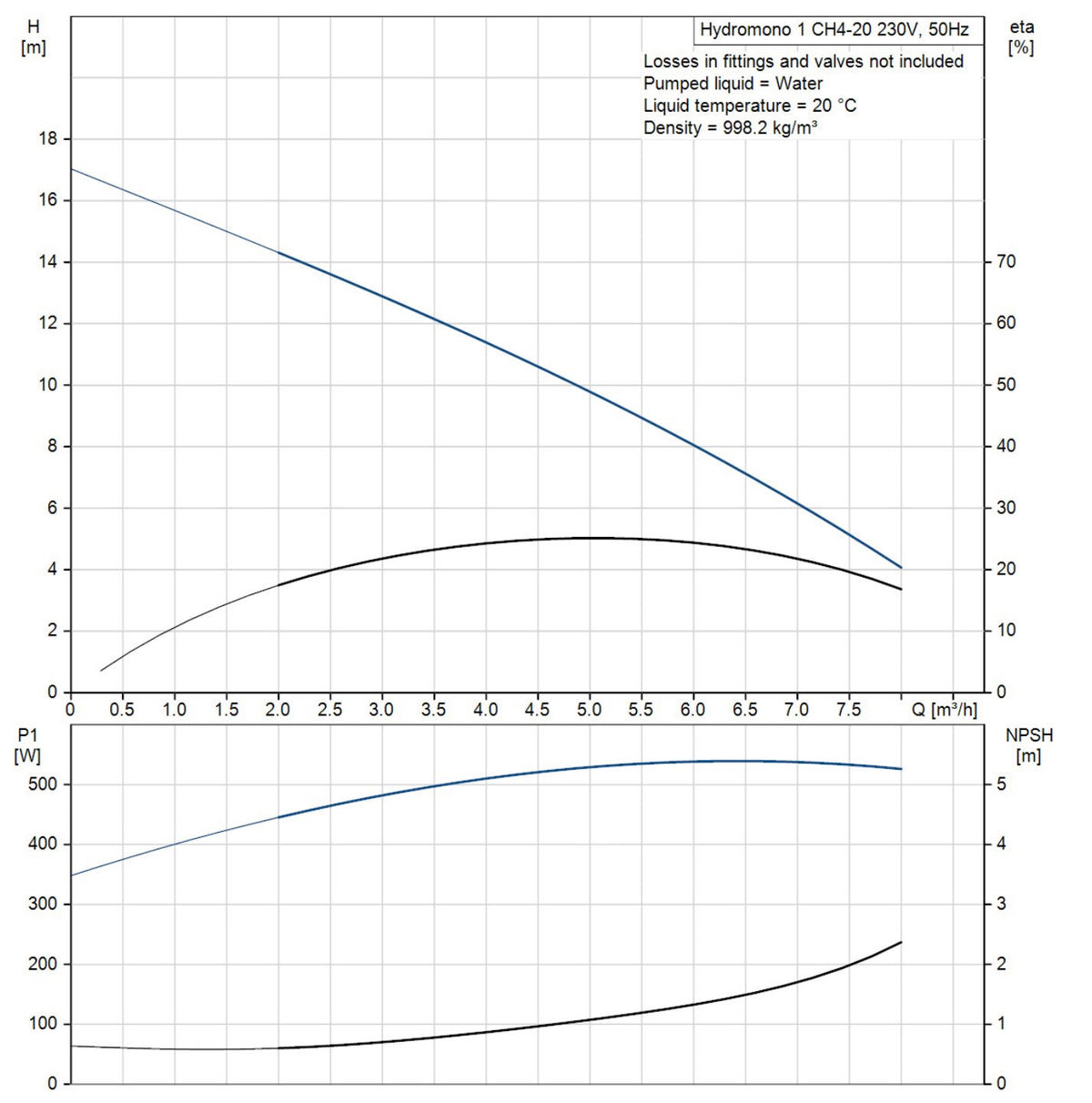

| Flow range | 2 - 7 m³/h |
| Max flow | 7 m³/h |
| Head range | 16-7 m |
| Pump type | CH4- 20 |
| Pump No | 44502102 |
| Materials | |
|---|---|
| Fittings | Brass |
| Installation | |
|---|---|
| Maximum operating pressure | 8 bar |
| Maximum inlet pressure | 6 bar |
| Pre-pressure | 0.7 bar |
| Cut-in pressure | 0.8 bar |
| Cut-out press. | 1.5 bar |
| Pump inlet | Rp 11/4 |
| Pump outlet | Rp 1 |
| Liquid | |
|---|---|
| Pumped liquid | Water |
| Liquid temperature range | 5 .. 70 °C |
| Max liquid t acc. DIN 1988 | 25 °C |
| Liquid temp | 20 °C |
| Density | 998.2 kg/m³ |
| Electrical data | |
|---|---|
| Power (P1) for one pump | 0.36 kW |
| Mains frequency | 50 Hz |
| Rated voltage | 1 x 230 V |
| Rated current of one pump | 2.7 A |
| Start. method | direct-on-line |
Specification & guidance notice: Technical information and FAQ content are provided in good faith based on manufacturer literature and industry experience. Descriptions of hydraulic types and application suitability represent general guidance only and do not constitute a guarantee of performance. Actual results will depend on system design, pipework losses, media characteristics, and installation conditions. Please consult the manufacturer & thier documentation and satisfy yourself that the equipment is suitable for your specific application prior to purchase.
