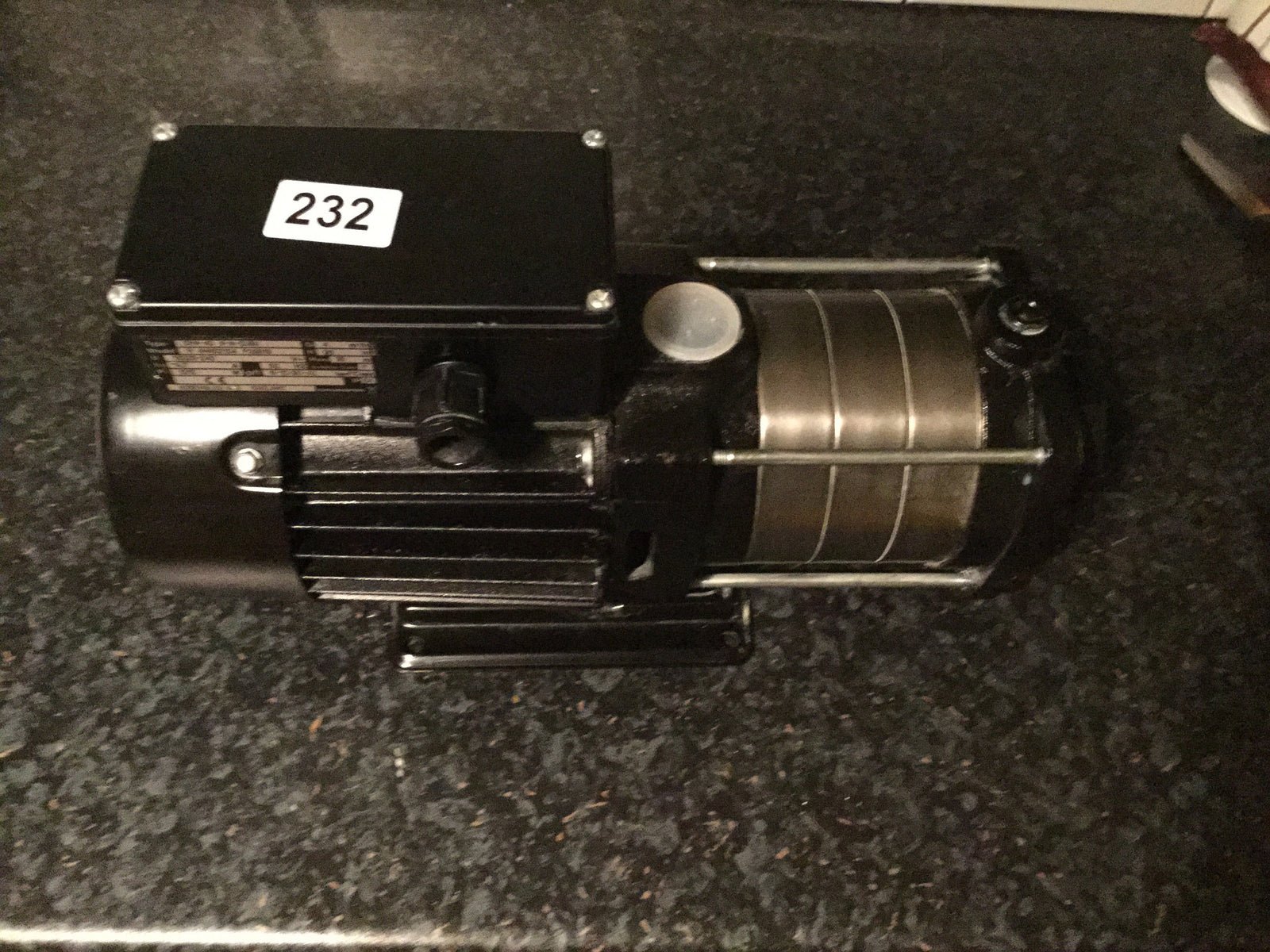

Grundfos CH4 40 Horizontal Multistage Pump 44501104 #232
6 Month guarantee on all of our used pumps
Please call us for free advice on replacement
We also take card payment over the phone
We buy and sell new and unused pumps
Can deliver for next day if ordered before 4pm
Same day delivery possible please call for a quote
MAJORITY OF OUR PUMPS ARE NEW, UNUSED, NEVER BEEN FITTED SURPLUS STOCK
Please call us for free advice on replacement
We also take card payment over the phone
We buy and sell new and unused pumps
Can deliver for next day if ordered before 4pm
Same day delivery possible please call for a quote
MAJORITY OF OUR PUMPS ARE NEW, UNUSED, NEVER BEEN FITTED SURPLUS STOCK
WORLDWIDE DELIVERY AVAILABLE
Internationally for free we ship to:
Aland Islands, Armenia, Austria, Belarus, Belgium, Bosnia And Herzegovina, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Faroe Islands, Finland, France, Georgia, Germany, Greece, Guernsey, Hungary, Iceland, Ireland, Isle Of Man, Italy, Jersey, Latvia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Republic Of, Moldova, Republic of, Monaco, Montenegro, Netherlands, Norway, Poland, Portugal, Romania, San Marino, Serbia, Slovakia, Slovenia, Spain (50 of 52 provinces), Sweden, Switzerland
For Free under 30kg
2-3 Day shipping internationally
Condition: Brand New not in original box.
Two Year Guarantee on this item
Please see product spec here
Specifications
| Product name | CH 4-40 A-W-A-CVBE |
| Product No | 44501104 |
| EAN number | 5708601045899 |
| Price | On request |
| Technical | |
|---|---|
| Rated flow | 5 m³/h |
| Rated head | 20.8 m |
| Head max | 34 m |
| Primary shaft seal | CVBE |
| Pump version | A |
| Model | H |
| Materials | |
|---|---|
| Pump housing | Cast iron |
| Pump housing | EN-JL1030 |
| Pump housing | ASTM 30 B |
| Impeller | Stainless steel |
| Impeller | DIN W.-Nr. 1.4301 |
| Impeller | AISI 304 |
| Material code | A |
| Installation | |
|---|---|
| Range of ambient temperature | 0 .. 55 °C |
| Max pressure at stated temp | 6 bar / 90 °C |
| Max pressure at stated temp | 10 bar / 40 °C |
| Connect code | W |
| Pump inlet | Rp 1 1/4 |
| Pump outlet | Rp 1 |
| Liquid | |
|---|---|
| Pumped liquid | Water |
| Liquid temperature range | 0 .. 90 °C |
| Liquid temp | 20 °C |
| Density | 998.2 kg/m³ |
| Electrical data | |
|---|---|
| Motor type | MG71 |
| Power input - P1 | 965 W |
| P2 | 660 W |
| Mains frequency | 50 Hz |
| Rated voltage | 3 x 220-240D/380-415Y V |
| Rated current | 2,8/1,6 A |
| Maximum current consumption | 2,8/1,6 A |
| Enclosure class (IEC 34-5) | IP54 |
| Insulation class (IEC 85) | F |
| Motor protec | NONE |
| Thermal protec | external |
| Others | |
|---|---|
| Net weight | 12.5 kg |
| Gross weight | 13.2 kg |
| Shipping volume | 0.024 m³ |
