Grundfos CM 5-2 A R I E AQQE F A A N Horizontal Multistage Pump 415v 96961054 #4998

Grundfos CM 5-2 A-R-I-E-AQQE F-A-A-N Horizontal Multistage Pump 415V 96961054 #4998

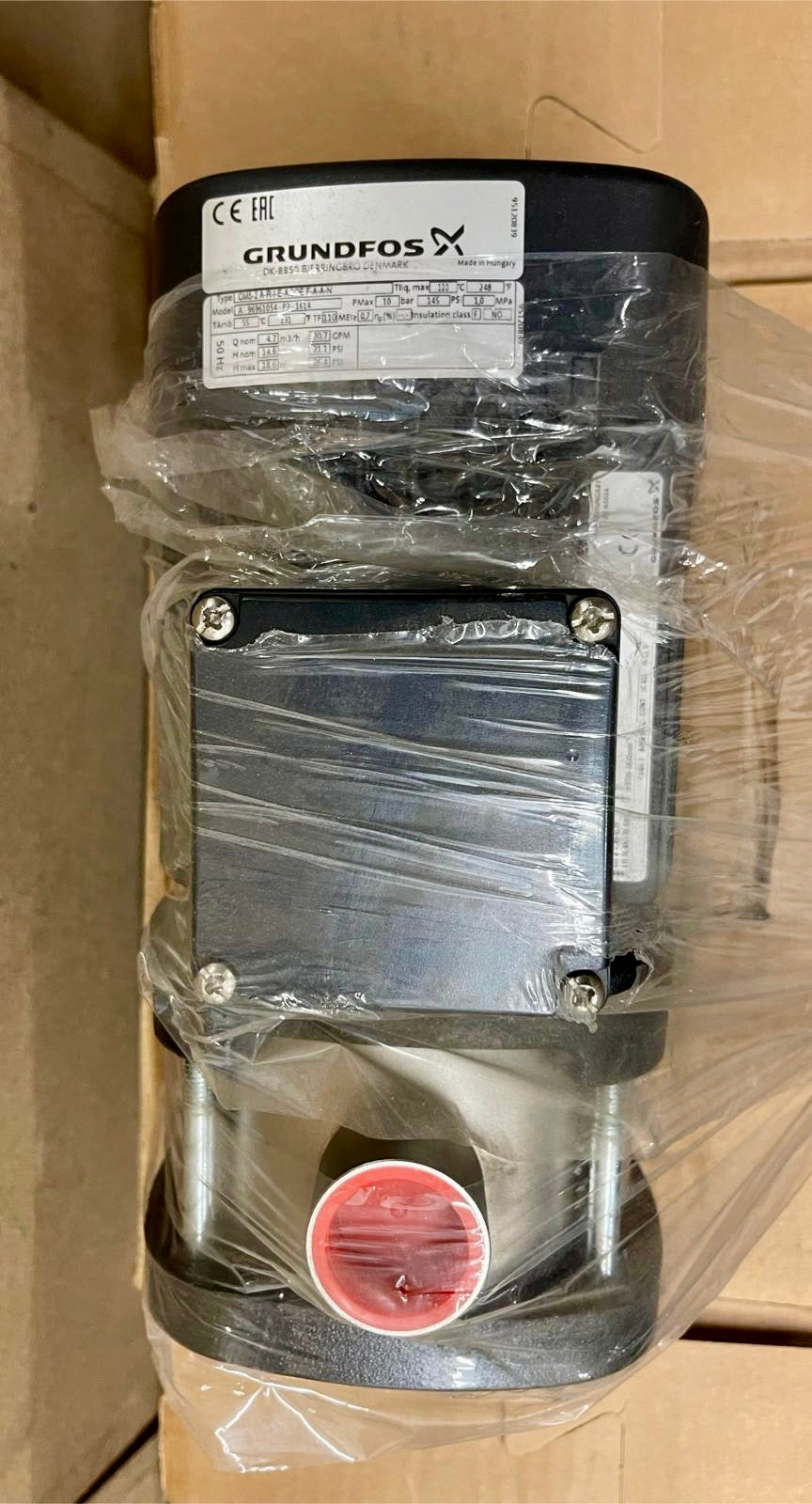

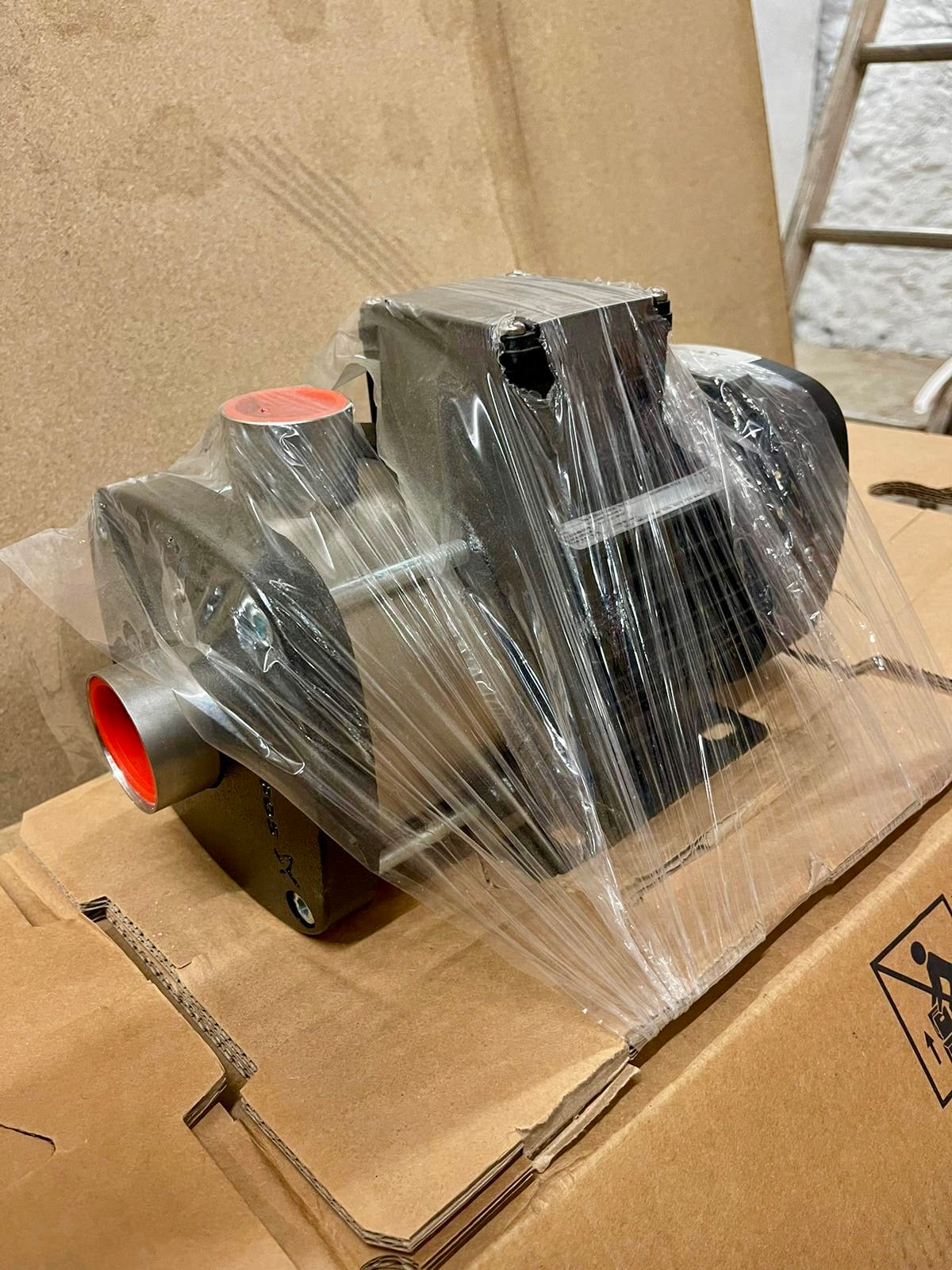

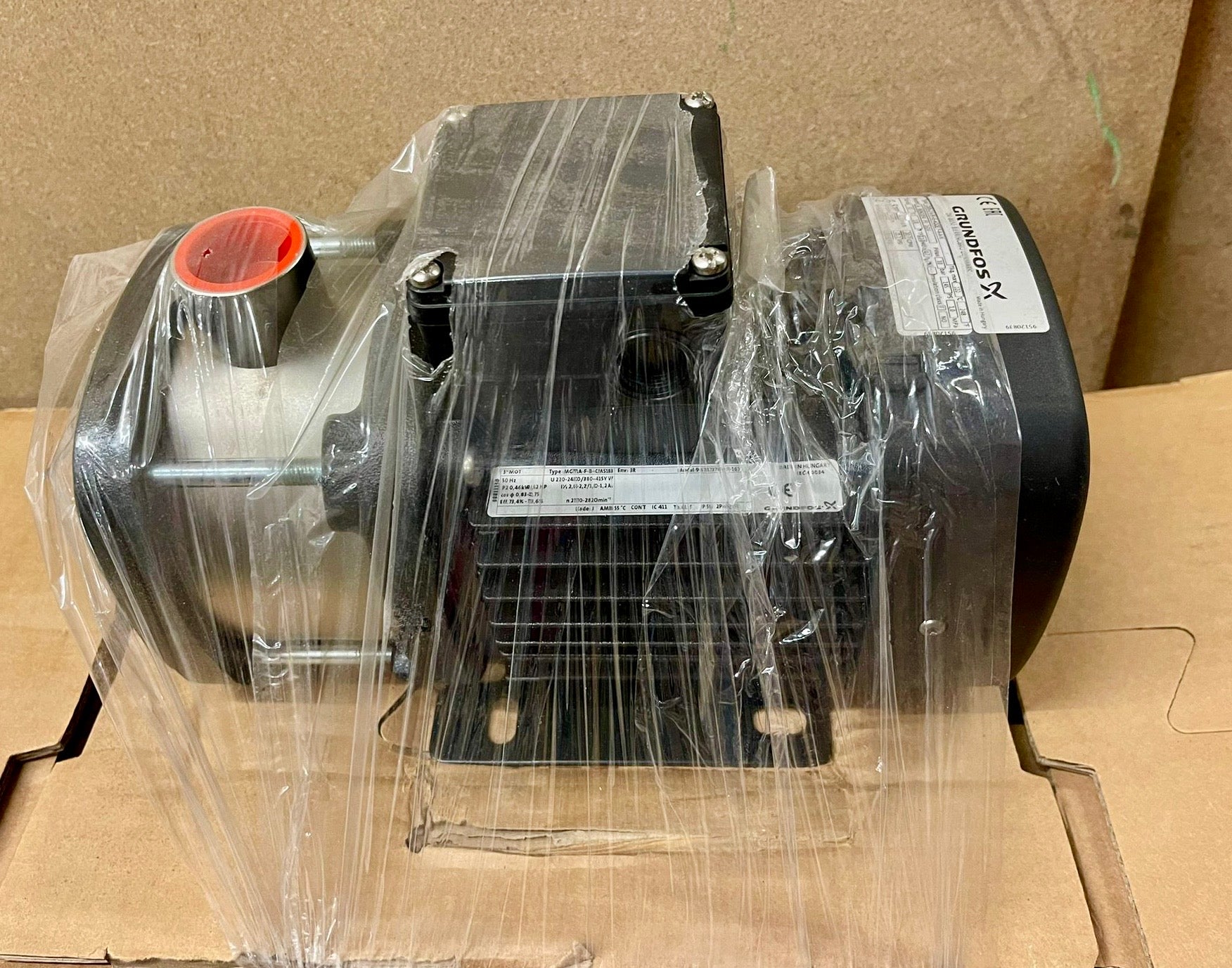

This listing is for a Grundfos CM 5-2 A-R-I-E-AQQE F-A-A-N horizontal multistage centrifugal pump, product number 96961054. It is a compact, mains-operated Grundfos CM pump with stainless-steel wetted parts, threaded Rp pipe connections and a 3-phase 400V / 415V class motor.

The Grundfos CM range is designed for clean-water and compatible liquid duties where a compact horizontal multistage pump is required. Typical uses include pressure boosting, water transfer, washing and cleaning systems, temperature-control circuits, water treatment and clean industrial process duties.

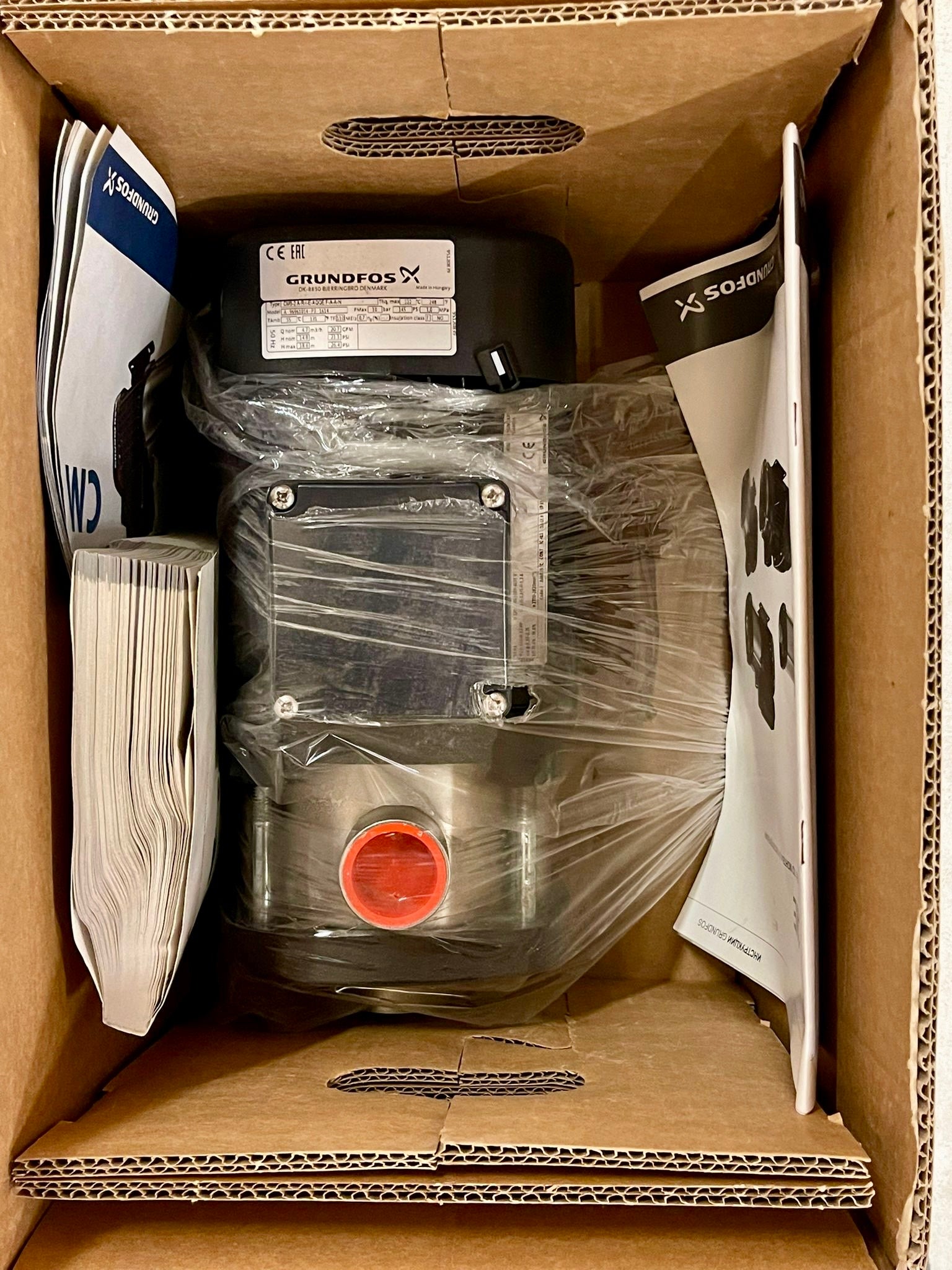

Condition: supplied in as new surplus condition – the pump has not been installed or used but may show minor cosmetic markings from storage and handling. Guarantee: supplied with a 2-year guarantee.

• Manufacturer: Grundfos

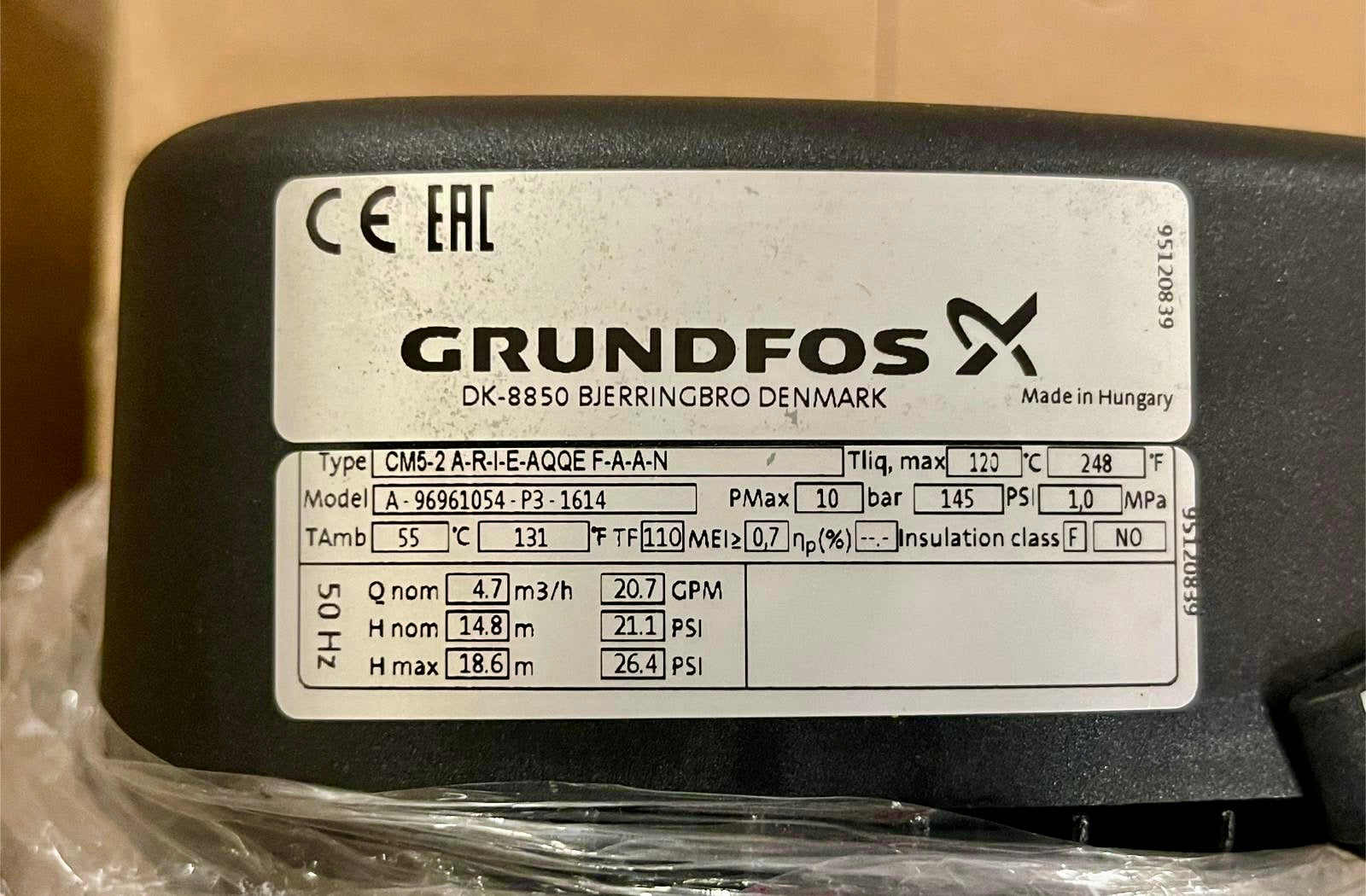

• Model: CM 5-2 A-R-I-E-AQQE F-A-A-N
• Product number: 96961054
• Stock code: #4998
• Pump type: horizontal multistage end-suction centrifugal pump
• CM version: CM-I stainless-steel wetted construction
• Speed type: fixed speed / mains-operated motor
• Self-priming: no – normal-suction pump, must be correctly flooded / primed before operation
• Number of impellers / stages: 2
• Application type: clean-water transfer, pressure boosting, washing, water treatment, temperature control and compatible industrial liquid transfer
• Rated flow: 4.7 m³/h / 1.31 L/s
• Rated head: 14.8 m
• Flow reference: 1.3–6.1 m³/h / 0.36–1.69 L/s
• Maximum operating pressure: 10 bar
• Max pressure at stated temperature: 10 bar / 120°C
• Liquid temperature range: -20°C to +120°C
• Connection type: Whitworth pipe thread Rp / ISO 7/1
• Suction connection: Rp 1 1/4
• Discharge connection: Rp 1
• Pipework arrangement: axial suction and radial discharge
• Rated motor power: 0.46 kW
• Power supply: 3-phase, 50 Hz, 3 × 220–240D / 380–415Y V
• Nominal voltage listing: 400V / 415V 3-phase
• Rated current: 2.0–2.2 / 1.0–1.2 A
• Starting current: 490–530%
• Rated speed: 2770–2820 rpm
• Motor frame: 71A
• Motor type: 3-phase fan-cooled asynchronous motor with foot-mounted base
• Enclosure class: IP55
• Insulation class: F
• Motor protection: no built-in motor protection; connect to suitable manual-reset motor starter / overload protection
• Shaft seal: AQQE mechanical shaft seal
• AQQE seal materials: O-ring seal with fixed seal driver, silicon carbide / silicon carbide seal faces and EPDM elastomers
• Rubber parts: EPDM
• Pump housing material: stainless steel EN 1.4301 / AISI 304
• Impeller material: stainless steel EN 1.4301 / AISI 304
• Minimum Efficiency Index: MEI ≥ 0.70
• Approvals shown: CE, WRAS, ACS, TR, EAC
• Curve tolerance: ISO 9906:2012 3B
• Net weight: approx. 11.6 kg
• Gross weight: approx. 14.1 kg

Need help confirming suitability?
Call us on 01803 220416 for technical advice.

Manufacturer product page

The official Grundfos product page for this pump can be viewed here:
View Grundfos CM 5-2 A-R-I-E-AQQE F-A-A-N – 96961054

Technical documentation

Grundfos specification sheet and dimensional drawing for product number 96961054:
View Grundfos CM 5-2 A-R-I-E-AQQE specification sheet and dimensional drawing

Grundfos CME / CM data booklet:
View Grundfos CME and CM data booklet

Typical applications

• Clean-water transfer
• Pressure boosting in domestic, commercial or industrial water systems
• Water treatment and smaller reverse-osmosis support duties
• Washing and cleaning systems
• Vehicle-wash and wash-down systems
• Temperature-control circuits
• Cooling and air-conditioning support duties
• Level control and tank filling applications
• Compatible clean industrial liquid transfer

Frequently Asked Questions

What is this pump used for?

This Grundfos CM 5-2 is used for clean-water transfer, pressure boosting, washing, water treatment, cooling and compatible industrial circulation duties. It is a compact horizontal multistage pump designed for applications where a small pump is required to produce a useful pressure boost.

What does CM mean?

CM stands for Grundfos’ compact horizontal multistage pump range. CM pumps are close-coupled pumps with a standard mains-operated motor and a mechanical shaft seal. They are designed for clean-liquid duties where compact size, quiet operation and reliable pressure performance are required.

What does CM 5-2 mean?

In the Grundfos model code, 5 refers to the rated flow family at 50Hz, and 2 indicates the number of impellers / hydraulic stages. This version is a two-stage CM 5 pump.

What does A-R-I-E-AQQE mean?

• A – basic pump version
• R – Whitworth threaded Rp pipe connection
• I – stainless-steel wetted construction, EN 1.4301 / AISI 304
• E – EPDM rubber parts in the pump, excluding neck ring and shaft seal
• AQQE – mechanical shaft seal code

What does F-A-A-N mean?

• F – 3 × 220–240 / 380–415V, 50Hz supply voltage
• A – standard motor, IP55
• A – prepared for cable glands
• N – no sensor

What is the AQQE shaft seal?

AQQE is the Grundfos shaft seal code. It indicates an O-ring mechanical shaft seal with fixed seal driver, silicon carbide / silicon carbide seal faces and EPDM secondary elastomers.

The silicon carbide / silicon carbide face pairing gives good wear resistance in compatible clean-liquid duties. EPDM is well suited to many water-based applications and hot-water duties, but it is not suitable for mineral oils or fuel-related liquids.

What voltage is this pump?

This pump has a 3-phase motor with a voltage rating of 3 × 220–240D / 380–415Y V. For UK commercial supplies, it is normally listed as a 400V / 415V 3-phase pump.

Does the motor need overload protection?

Yes. This CM pump should be wired through suitable motor protection. The motor does not have built-in motor protection, so it should be connected to a correctly rated manual-reset motor starter or overload device set to the motor rated current.

How do I check the motor direction of rotation?

Three-phase CM pumps should be checked for correct direction of rotation during commissioning. Grundfos notes that three-phase CM pumps have an installation indicator which can help show whether the electrical connection gives the correct rotation direction.

What flow and pressure does this pump produce?

The listed rated duty point is 4.7 m³/h at 14.8 m head. The curve reference covers approximately 1.3–6.1 m³/h, equal to approximately 0.36–1.69 L/s. Actual performance depends on the installed pipework, system resistance, inlet pressure and operating point on the pump curve.

What pipe connections does this pump have?

This pump has threaded Rp pipe connections to ISO 7/1. The suction connection is Rp 1 1/4 and the discharge connection is Rp 1. It is not a flanged pump.

Is this pump self-priming?

No. This is a normal-suction CM pump, not a CM self-priming version. The pump must be correctly flooded or primed before operation and must not be run dry.

What liquids is this pump suitable for?

This pump is suitable for clean, thin, non-aggressive and non-explosive liquids compatible with stainless steel EN 1.4301 / AISI 304, EPDM elastomers and the AQQE mechanical shaft seal.

Typical suitable duties include clean water, treated water and compatible water-based process liquids. Liquids with a viscosity or density different from water can affect pump performance and motor load, so the duty should be checked before use.

Can this pump handle dirty water or solids?

No. This is a clean-liquid multistage centrifugal pump. It is not designed for dirty water, wastewater, sewage, sludge, fibres or liquids containing abrasive solids. Particles can damage the hydraulic stages and mechanical shaft seal.

Is this suitable for potable water?

The product documentation shows WRAS and ACS approvals for this pump. Final suitability for potable water still depends on the full installation, water quality, local regulations and any site-specific requirements.

Is this suitable for hot water?

Grundfos lists a liquid temperature range of -20°C to +120°C for this product. Hot-water suitability depends on the liquid, pressure, water quality, seal condition and installation conditions.

Is this suitable for glycol?

The AQQE seal uses EPDM elastomers and silicon carbide / silicon carbide seal faces, which may be suitable for selected water-glycol duties. Glycol type, concentration, viscosity, temperature and inhibitor package can affect pump performance and seal life, so the exact duty should be checked before use.

Is this suitable for oils or fuels?

Not as a standard configuration. The Grundfos CM range can be supplied for a wide range of clean industrial liquids, and the data booklet does mention oil as a possible liquid category in some temperature-control applications. However, Grundfos also notes that the pump materials and shaft seal must be selected to suit the specific liquid.

This pump is fitted with an AQQE mechanical shaft seal, using silicon carbide / silicon carbide seal faces and EPDM elastomers. EPDM is generally selected for water-based duties rather than mineral oils or fuel-related liquids.

For oil duties, the Grundfos data booklet separately references FKM / oil without water with a listed temperature range of -20°C to +120°C. That indicates oil applications normally require the correct oil-compatible elastomer and seal selection, rather than assuming a standard EPDM/AQQE pump is suitable.

For that reason, this pump should not be advertised for mineral oil, diesel, petrol, fuel oil or similar hydrocarbon duties unless Grundfos liquid compatibility has been checked for the exact liquid, concentration, temperature, viscosity and operating pressure.

Can this be used as a pressure boosting pump?

Yes, subject to correct sizing and system design. CM pumps are commonly used for pressure boosting and water transfer duties. The pump should be selected against the required flow, head, inlet pressure, available NPSH and control arrangement.

Can this pump be used with a variable-speed drive?

This is a fixed-speed CM pump with a standard mains-operated motor, not a CME pump with an integrated frequency converter. If external variable-speed control is required, the motor and installation should be checked for inverter suitability before use.

How should this pump be installed?

The pump should be installed on a level surface and fixed so that it cannot move during starting or operation. It should be installed so that air pockets are avoided in the pump housing and pipework, with suitable access for inspection, maintenance and service.

What should I check before ordering?

• Product number: 96961054
• Model: CM 5-2 A-R-I-E-AQQE F-A-A-N
• Electrical supply: 3-phase 400V / 415V class
• Connection sizes: Rp 1 1/4 suction and Rp 1 discharge
• Required flow and head duty point
• Pumped liquid compatibility with stainless steel, EPDM and AQQE seal materials
• Maximum operating pressure and liquid temperature
• Motor protection / control panel requirements
• Whether a normal-suction pump is suitable for the installation

About Our Stock

Stock code: #4998
We specialise in supplying new and unused surplus commercial pump equipment. This pump is supplied in as new surplus condition and may show minor cosmetic marks from storage and handling.

This item is supplied with a 2-year guarantee. Please check the product number, voltage, connection sizes, duty point and liquid compatibility carefully before purchase.
