Grundfos CR / CRE / CRI / CRIE / CRN / CRNE 1/3/5 HQQV 12mm Shaft Seal – 96441878 / 96455087 #4940

Grundfos CR / CRE / CRI / CRIE / CRN / CRNE 1/3/5 HQQV 12mm Shaft Seal – 96441878 / 96455087 #4940

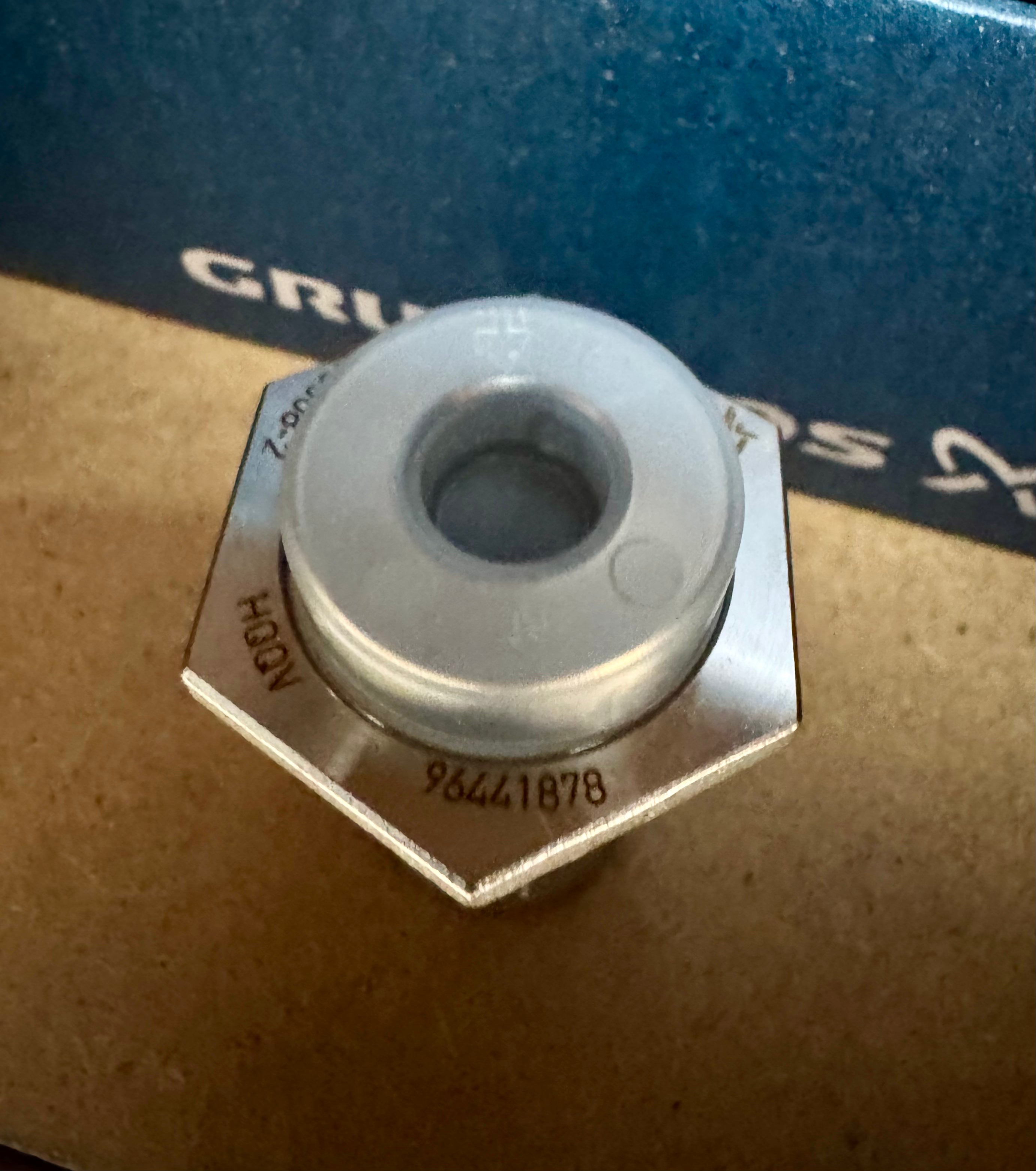

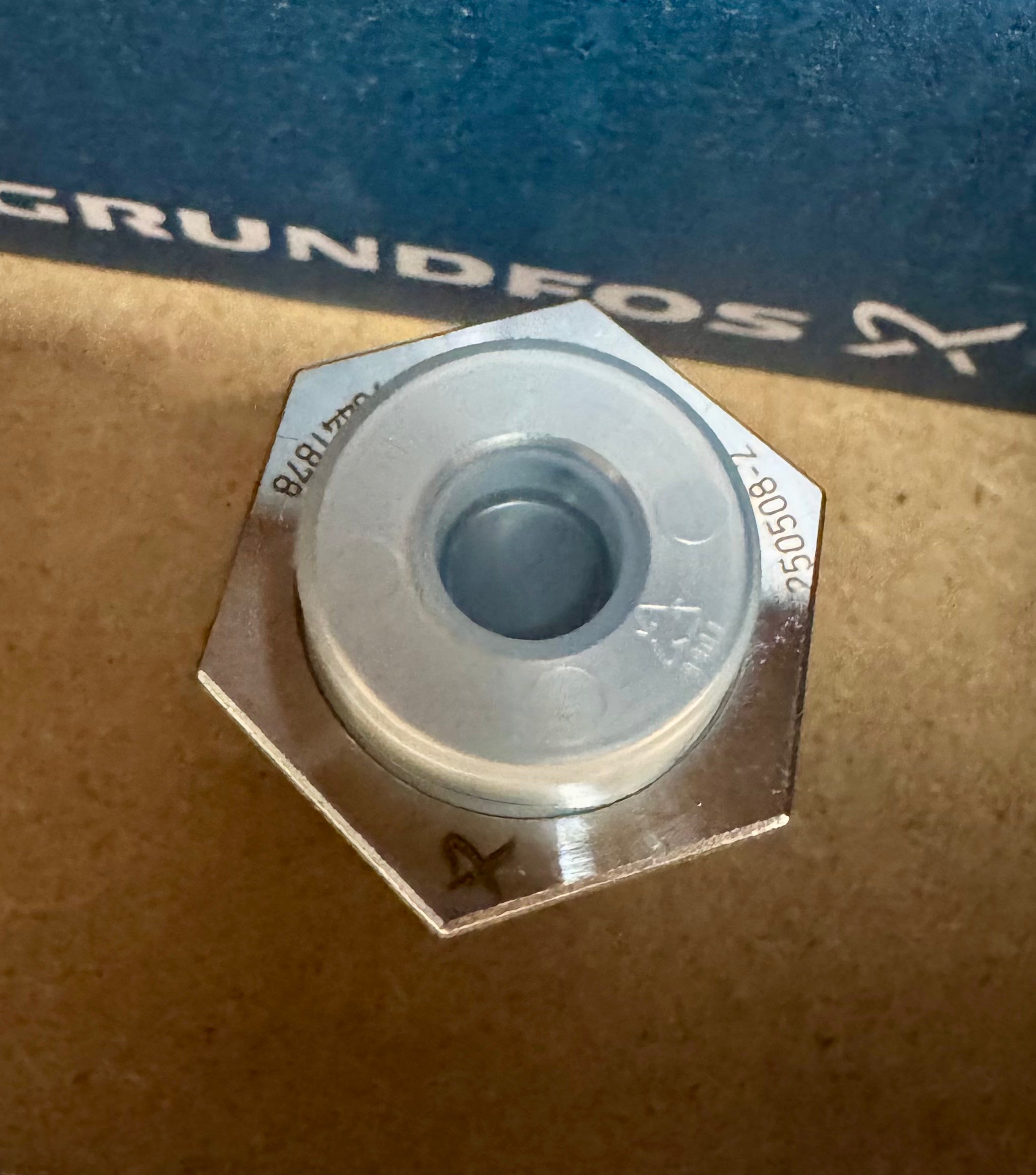

This listing is for a Grundfos HQQV 12mm mechanical shaft seal for selected CR, CRE, CRI, CRIE, CRN and CRNE vertical multistage pumps in the 1, 3 and 5 pump families. The individual / bulk-pack seal reference is 96441878, and the related Grundfos shaft seal kit reference is 96455087.

This is the HQQV version: a Type H balanced cartridge O-ring seal with silicon carbide / silicon carbide seal faces and FKM / Viton secondary seals. It should not be confused with the HQQE version, which uses EPDM secondary seals instead of FKM.

This is a shaft seal service part only. It is not a complete pump, pump head, motor, chamber stack, base or hydraulic assembly.

Condition: supplied in as new surplus condition – the item has not been installed or used but may show minor cosmetic markings from storage and handling. Guarantee: supplied with a 2-year guarantee.

• Product type: mechanical shaft seal / shaft seal service part
• Individual / bulk-pack seal reference: 96441878
• Related Grundfos shaft seal kit reference: 96455087

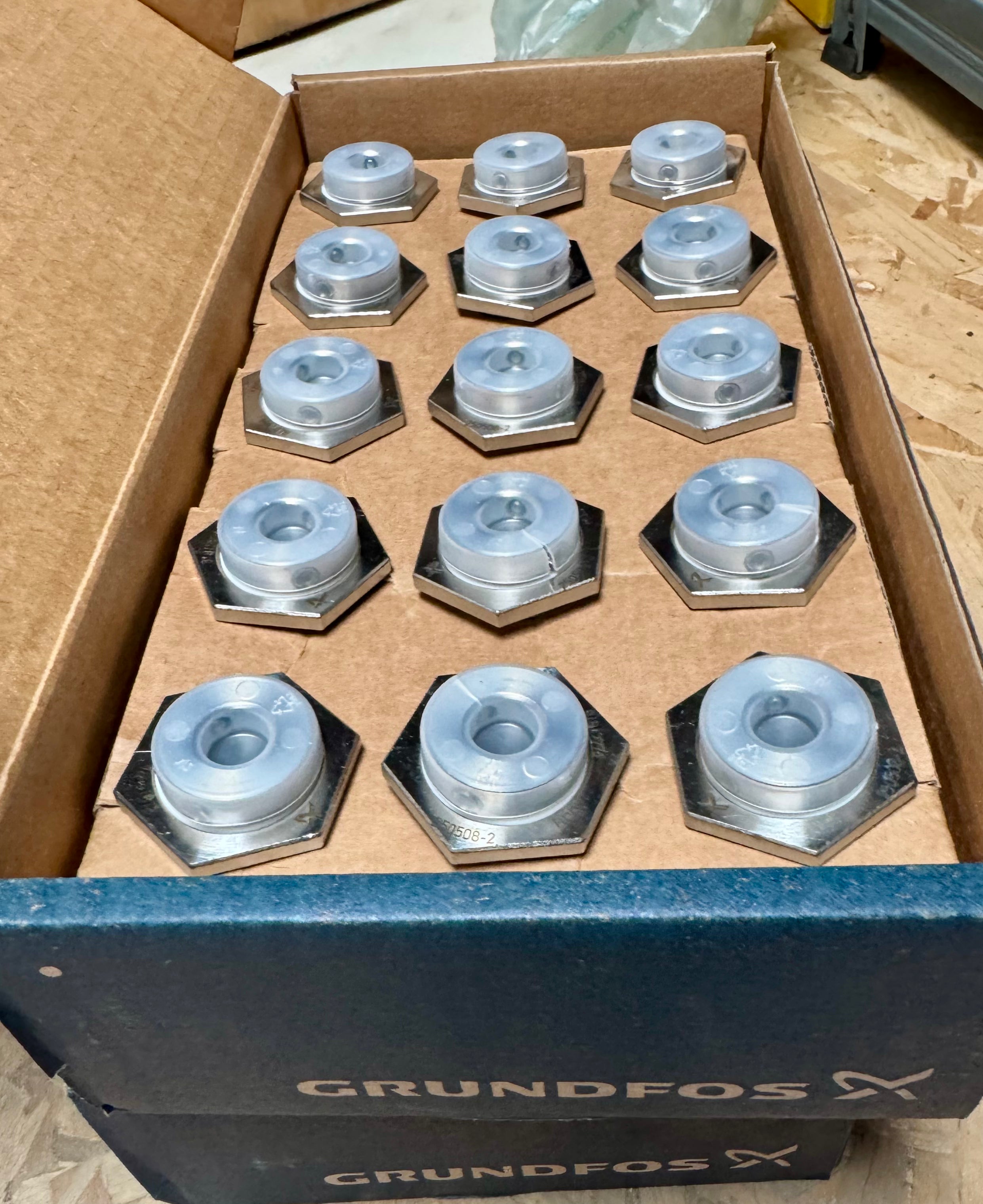

• Bulk pack reference: 96983416 = 15 x 96441878
• Seal code: HQQV
• Nominal shaft / seal size: 12 mm
• Suitable pump families: selected CR / CRE / CRI / CRIE / CRN / CRNE 1, 3 and 5 pumps, subject to exact pump version
• Seal type: Type H balanced cartridge O-ring seal unit
• Seal face pairing: silicon carbide / silicon carbide
• Secondary seal material: FKM / Viton
• FKM water temperature reference: up to 90°C
• FKM mineral oil temperature reference: up to 200°C
• FKM liquid compatibility: excellent for oils/fuels; poor for glycols and alkalis; conditional for acids, solvents and abrasive-particle duties
• Associated kit EAN: 5700394403290
• Associated kit net weight: approx. 0.3 kg
• Important compatibility note: match the existing seal code, pump model, shaft/seal size and service documentation before ordering
• Stock code: #4940

Need help confirming suitability?
Call us on 01803 220416 for technical advice.

Manufacturer product page

The related Grundfos shaft seal kit reference can be viewed on the official Grundfos product page:
View Grundfos Kit, shaft seal HQQV – 96455087

This listing also references 96441878, which is associated with the individual / bulk-pack HQQV seal reference. The bulk Grundfos reference 96983416 is listed as 15 x 96441878.

Technical documentation

General Grundfos CR / CRI / CRN service documentation can be viewed here:
View Grundfos CR / CRI / CRN 1, 3 and 5 service documentation

Grundfos mechanical shaft seal reference guide:
View Grundfos mechanical shaft seals for pumps guide

Typical applications

• Replacement HQQV shaft seal for compatible Grundfos CR 1 / CR 3 / CR 5 pumps
• Replacement HQQV shaft seal for compatible Grundfos CRE 1 / CRE 3 / CRE 5 pumps
• Replacement HQQV shaft seal for compatible Grundfos CRI 1 / CRI 3 / CRI 5 pumps
• Replacement HQQV shaft seal for compatible Grundfos CRIE 1 / CRIE 3 / CRIE 5 pumps
• Replacement HQQV shaft seal for compatible Grundfos CRN 1S / CRN 1 / CRN 3 / CRN 5 pumps
• Replacement HQQV shaft seal for compatible Grundfos CRNE 1 / CRNE 3 / CRNE 5 pumps
• Water, oil, fuel and selected process-liquid duties where FKM / Viton is suitable

Frequently Asked Questions

What is this part?

This is a Grundfos HQQV 12mm mechanical shaft seal for selected CR, CRE, CRI, CRIE, CRN and CRNE vertical multistage pumps in the 1, 3 and 5 pump families. It is a service part only and does not include any pump body, motor, chamber stack or pipework components.

What does HQQV mean?

• H – Type H balanced cartridge O-ring seal unit
• Q – silicon carbide rotating seal face
• Q – silicon carbide stationary seal face
• V – FKM / Viton secondary seal elastomers

In plain English, this is a balanced cartridge mechanical shaft seal with silicon carbide / silicon carbide seal faces and FKM / Viton elastomers.

What is the alternative part number for 96441878?

The related Grundfos shaft seal kit reference is 96455087. The individual / bulk-pack seal reference is 96441878. Grundfos also lists bulk reference 96983416 as 15 x 96441878.

What is the difference between HQQV and HQQE?

The final letter identifies the secondary seal material. HQQV uses FKM / Viton elastomers. HQQE uses EPDM elastomers. Both use silicon carbide / silicon carbide seal faces, but the elastomer material changes the liquid and temperature suitability.

What temperature and pressure is this suitable for?

This HQQV seal uses FKM / Viton secondary seals. Grundfos' shaft seal material guidance lists FKM with a maximum temperature of 90°C in water and 200°C in mineral oils.

The Type H balanced cartridge design is suitable for higher-pressure applications when correctly matched to the pump, but the final pressure limit is pump-specific. Always check the exact pump model, fitted seal code, shaft/seal size, pressure version and Grundfos service documentation before use.

Is HQQV suitable for hot water?

HQQV can be used in compatible water duties, but it is not the highest-temperature water option. Grundfos lists FKM / Viton at up to 90°C in water. For hotter clean-water duties, an HQQE seal with EPDM secondary seals may be more suitable, as EPDM is listed at up to 140°C in water.

What liquids is HQQV suitable for?

The FKM / Viton secondary seals make HQQV suitable for selected liquids where FKM is the correct elastomer. Grundfos lists FKM as excellent for oils and fuels, with a mineral-oil temperature reference of up to 200°C.

FKM is not a universal upgrade over EPDM. Grundfos rates FKM as poor for glycols and alkalis, and good only under certain conditions for acids, solvents and abrasive-particle duties.

Can this be used with glycol?

Based on Grundfos' shaft seal material guidance, FKM / Viton is not the preferred choice for glycol duties. FKM is rated poorly for glycols, while EPDM is rated excellent for glycols.

For water-glycol mixtures, do not assume HQQV is suitable just because the pump size matches. Check the existing fitted seal code and Grundfos documentation. In many water-glycol duties, an HQQE seal with EPDM secondary seals may be the more appropriate option, subject to the exact pump and operating conditions.

Can this be used instead of HQQE?

Not automatically. HQQV and HQQE may share the same silicon carbide / silicon carbide seal faces, but the secondary seal material is different. HQQV uses FKM / Viton; HQQE uses EPDM. The correct version depends on the pumped liquid, temperature and the original seal specification.

Can a mechanical shaft seal run dry?

No. Mechanical shaft seals rely on a thin lubricating film between the seal faces. Dry running or poor lubrication can quickly damage hard seal faces and burn the elastomeric secondary seals.

Individual pump models found with 96441878 / 96455087 / HQQV

The list below is based on publicly indexed Grundfos Product Center pages, service-parts pages, datasheets and supplier references where 96441878, 96455087 or HQQV appears against specific pump models. It should be treated as a reference list of models found, not a guaranteed complete Grundfos internal compatibility database.

Grundfos CR 1S models found

• CR 1S-2 A-A-A-V-HQQV – product no. 96080931
• CR 1S-3 A-A-A-V-HQQV – product no. 96080932
• CR 1S-4 A-A-A-V-HQQV – product no. 96080933
• CR 1S-5 A-A-A-V-HQQV – product no. 96080934
• CR 1S-6 A-A-A-V-HQQV – product no. 96080935
• CR 1S-2 A-FGJ-A-V-HQQV – product no. 96081096
• CR 1S-3 A-FGJ-A-V-HQQV – product no. 96081097
• CR 1S-4 A-FGJ-A-V-HQQV – product no. 96081098
• CR 1S-5 A-FGJ-A-V-HQQV – product no. 96081099
• CR 1S-6 A-FGJ-A-V-HQQV – product no. 96081100
• CR 1S-7 A-FGJ-A-V-HQQV – product no. 96081101
• CR 1S-8 A-FGJ-A-V-HQQV – product no. 96081102
• CR 1S-9 A-FGJ-A-V-HQQV – product no. 96081103
• CR 1S-10 A-FGJ-A-V-HQQV – product no. 96081104
• CR 1S-11 A-FGJ-A-V-HQQV – product no. 96081105
• CR 1S-6 A-FGJ-A-V-HQQV – product no. 96515747
• CR 1S-9 A-FGJ-A-V-HQQV – product no. 96515751
• CR 1S-12 A-FGJ-A-V-HQQV – product no. 93395749
• CR 1S-36 A-FGJ-A-V-HQQV – product no. 92900232
• CR 1S-2 A-FGJ-A-V-HQQV – product no. 99915302

Grundfos CR 1 models found

• CR 1-5 A-FGJ-A-V-HQQV – product no. 93043297
• CR 1-5 A-FGJ-A-V-HQQV – product no. 96556555
• CR 1-7 A-FGJ-A-V-HQQV – product no. 96516265
• CR 1-11 A-FGJ-A-V-HQQV – product no. 93395763
• CR 1-15 A-FGJ-A-V-HQQV – product no. 96082230
• CR 1-27 A-FGJ-A-V-HQQV – product no. 96082241
• CR 1-36 A-FGJ-A-V-HQQV – product no. 96558299

Grundfos CR 3 models found

• CR 3-2 EU-FGJ-A-V-HQQV – product no. 93058433
• CR 3-3 A-FGJ-A-V-HQQV – product no. 93043288
• CR 3-6 A-FGJ-A-V-HQQV – product no. 96497736
• CR 3-10 A-B-A-V-HQQV – product no. 96083141
• CR 3-11 A-FGJ-A-V-HQQV – product no. 96083308
• CR 3-21 A-FGJ-A-V-HQQV – product no. 96083286
• CR 3-23 A-FGJ-A-V-HQQV – product no. 96083287
• CR 3-25 A-FGJ-A-V-HQQV – product no. 92901570
• CR 3-25 A-FGJ-A-V-HQQV – product no. 96083288
• CR 3-25 A-FGJ-A-V-HQQV – product no. 96513357
• CR 3-36 A-FGJ-A-V-HQQV – product no. 98890913

Grundfos CR 5 models found

• CR 5-4 A-FGJ-A-V-HQQV – product no. 96084350
• CR 5-5 A-FGJ-A-V-HQQV – product no. 93043796
• CR 5-5 A-FGJ-A-V-HQQV – product no. 96556604
• CR 5-14 A-FGJ-A-V-HQQV – product no. 96455218
• CR 5-24 H-GA-A-V-HQQV – product no. 97570553

Grundfos CRI models found

• CRI 1-6 A-CA-A-V-HQQV – product no. 96532168
• CRI 1-21 A-FGJ-A-V-HQQV – product no. 98951394
• CRI 5-9 A-P-A-V-HQQV – product no. 96533044

Grundfos CRIE models found

• CRIE 3-5 A-FGJ-A-V-HQQV – product no. 98776882
• CRIE 3-21 A-P-A-V-HQQV – product no. 93152064
• CRIE 5-16 N-FGJ-A-V-HQQV – product no. 93152593

Grundfos CRN 1 / CRN 1S models found

• CRN 1S-2 A-P-A-V-HQQV – product no. 96081686
• CRN 1S-3 A-P-A-V-HQQV – product no. 96081688
• CRN 1S-6 A-P-A-V-HQQV – product no. 96081693
• CRN 1S-8 A-P-A-V-HQQV – product no. 92900075
• CRN 1-5 A-FGJ-A-V-HQQV – product no. 92901346
• CRN 1-5 A-FGJ-A-V-HQQV – product no. 93395314
• CRN 1-8 A-FGJ-A-V-HQQV – product no. 99916139
• CRN 1-11 A-FGJ-A-V-HQQV – product no. 93395330
• CRN 1-12 A-FGJ-A-V-HQQV – product no. 93395331

Grundfos CRN 3 models found

• CRN 3-2 A-CA-A-V-HQQV – product no. 96532545
• CRN 3-5 A-FGJ-A-V-HQQV – product no. 93395345
• CRN 3-10 A-FGJ-A-V-HQQV – product no. 96516892
• CRN 3-17 A-FGJ-A-V-HQQV – product no. 99916657
• CRN 3-19 A-FGJ-A-V-HQQV – product no. 97578188

Grundfos CRN 5 models found

• CRN 5-3 A-CA-A-V-HQQV – product no. 93396473
• CRN 5-7 A-FGJ-A-V-HQQV – product no. 97742678
• CRN 5-12 A-FGJ-A-V-HQQV – product no. 96514162
• CRN 5-13 A-FGJ-A-V-HQQV – product no. 96514163
• CRN 5-14 A-FGJ-A-V-HQQV – product no. 92902683
• CRN 5-16 A-FGJ-A-V-HQQV – product no. 96517216
• CRN 5-16 A-FGJ-A-V-HQQV – product no. 99917118

Grundfos CRNE models found

• CRNE 1-3 N-CA-A-V-HQQV – product no. 93148852

This seal family is also referenced in Grundfos service-parts documentation for CR / CRI / CRN 1S, 1, 3 and 5 pumps fitted with the matching HQQV 12mm shaft seal configuration. Always confirm the existing pump model, fitted seal code, shaft/seal size, pressure version and Grundfos service parts list before ordering.

About Our Stock

Stock code: #4940
We specialise in supplying new and unused surplus pump parts. This item is inspected prior to dispatch and supplied with a 2-year guarantee.
