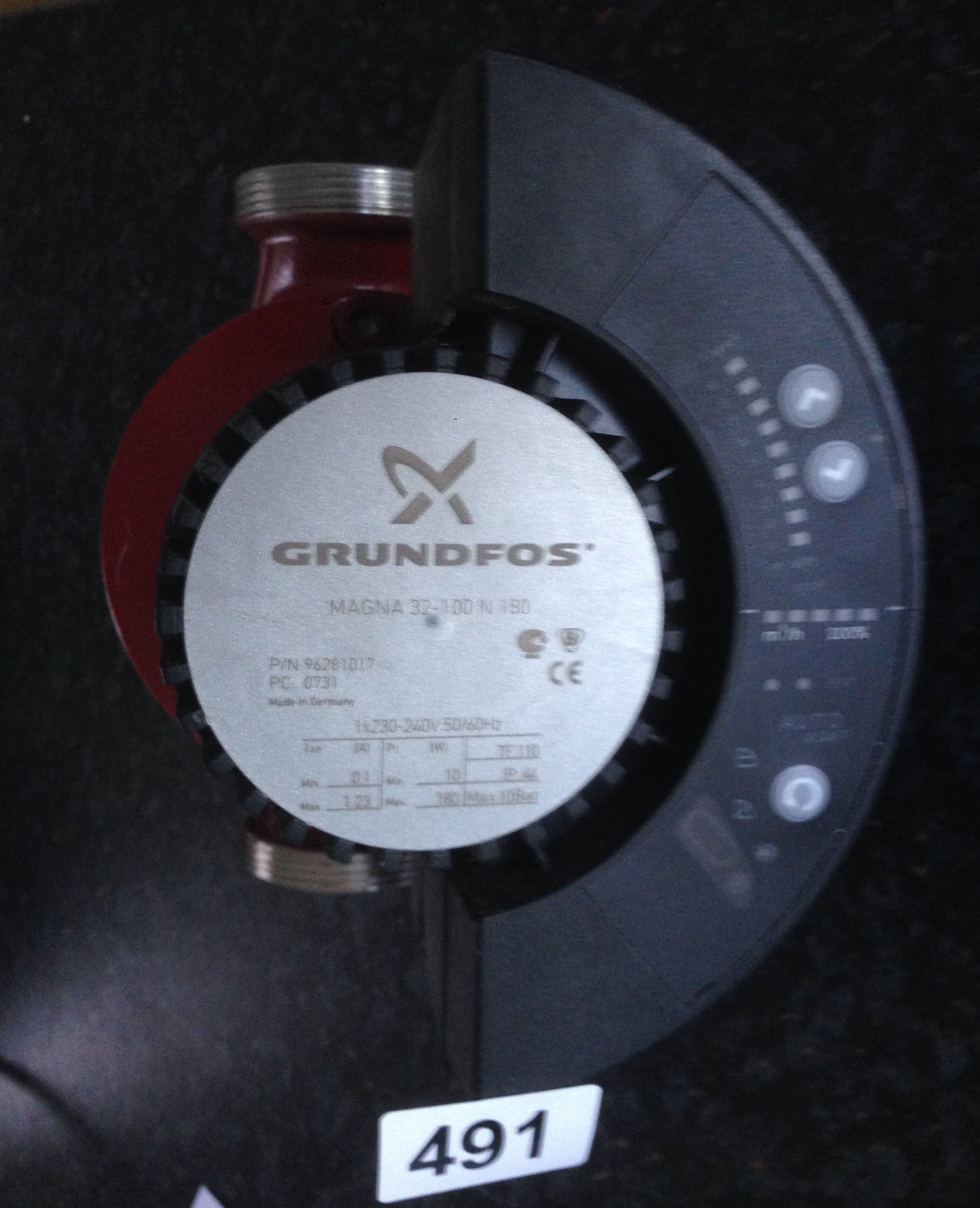

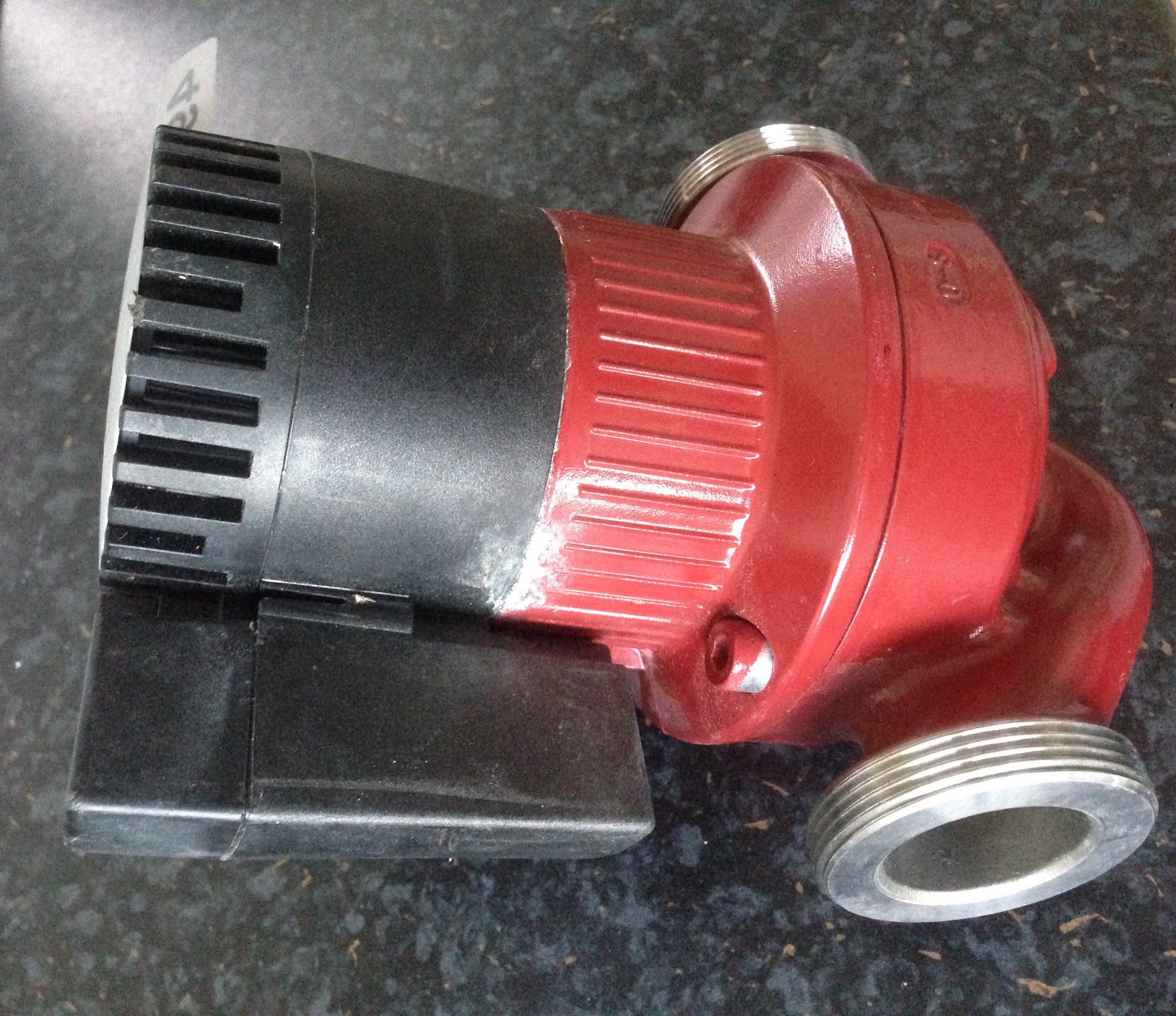

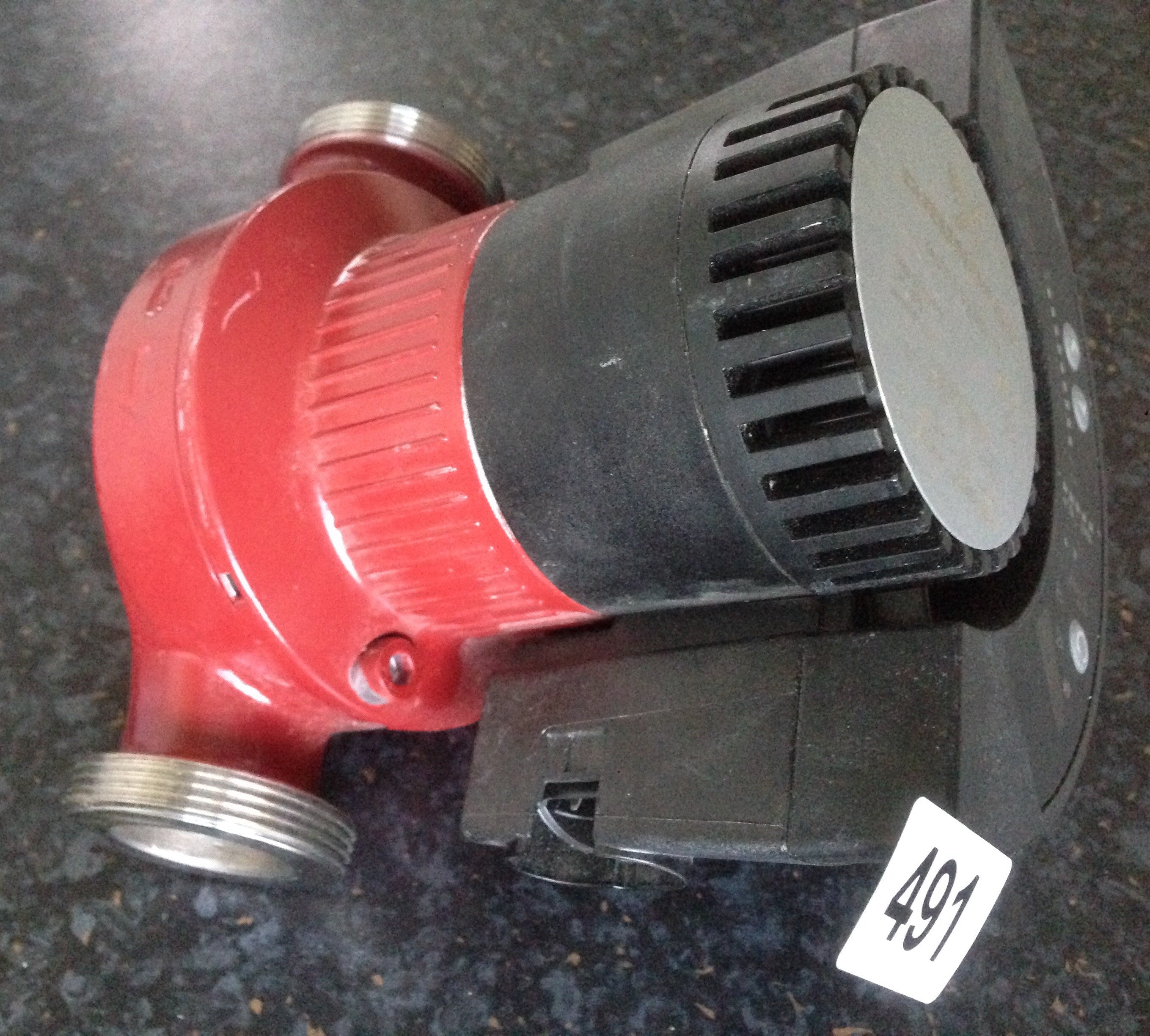

Grundfos MAGNA UPE 32-100 N Stainless Variable Speed Pump 240V 96281017 #491

Grundfos MAGNA UPE 32-100 N Stainless Variable Speed Pump 240V 96281017 #491

£495.00GBP

ThePumpDealer.co.uk

2 year guarantee on all of our pumps

Please call on +44 (0)1803 220416

No VAT

We also take card payment over the phone

We buy and sell new and unused pumps

GET IT FAST with our next day delivery service

ALL OF OUR PUMPS ARE NEW, UNUSED, NEVER BEEN FITTED SURPLUS STOCK





Not sure? email me at info@thepumpdealer.co.uk



Internationally we ship to:

Aland Islands, Armenia, Austria, Belarus, Belgium, Bosnia And Herzegovina, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Faroe Islands, Finland, France, Georgia, Germany, Greece, Guernsey, Hungary, Iceland, Ireland, Isle Of Man, Italy, Jersey, Latvia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Republic Of, Moldova, Republic of, Monaco, Montenegro, Netherlands, Norway, Poland, Portugal, Romania, San Marino, Serbia, Slovakia, Slovenia, Spain (50 of 52 provinces), Sweden, Switzerland

For Free under 30kg



Condition: new without original box, oxidation mark to side of pump, will not affect operation

 Please see product specs here

Specifications

Product name MAGNA 32-100 N

Product No 96281017

EAN number 5700830267912

Technical

Head max 100 dm

TF class 110

Approvals on nameplate CE,TSE,GOST2

Materials

Pump housing Stainless steel

Pump housing DIN W.-Nr. 1.4408

Pump housing AISI 316

Impeller Composite, PES

Installation

Range of ambient temperature 0 .. 40 °C

Maximum operating pressure 10 bar

Pipe connection G 2

Port-to-port length 180 mm

Liquid

Pumped liquid Water

Liquid temperature range 2 .. 60 °C

Liquid temperature during operation 60 °C

Density 983.2 kg/m³

Electrical data

Power input - P1 10 .. 180 W

Mains frequency 50 Hz

Rated voltage 1 x 230-240 V

Maximum current consumption 0.1 .. 1.23 A

Enclosure class (IEC 34-5) X4D

Insulation class (IEC 85) F

Controls

Pos term box 3H

Others

Energy (EEI) 0.22

Net weight 4.84 kg

Gross weight 6.02 kg
