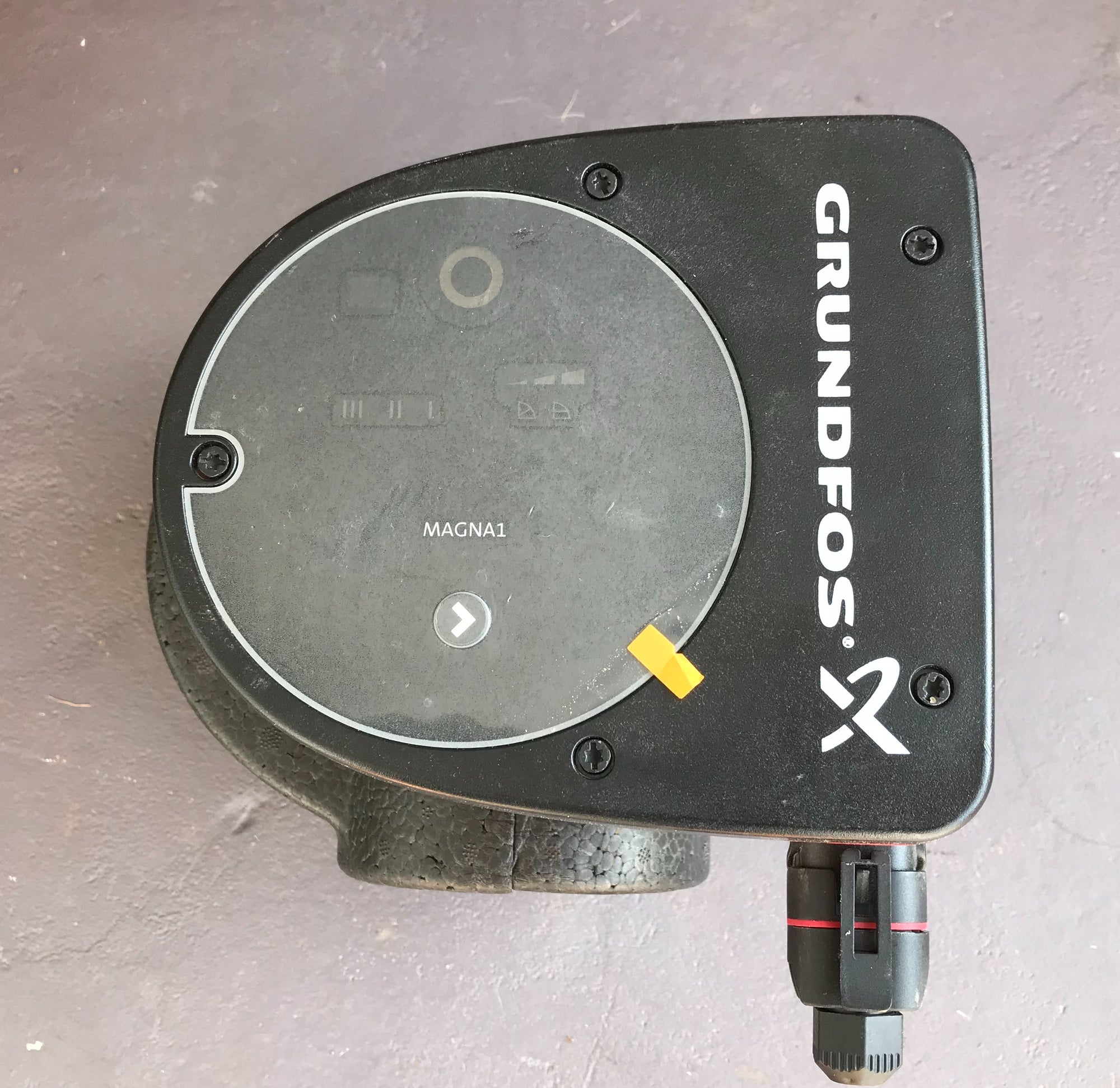

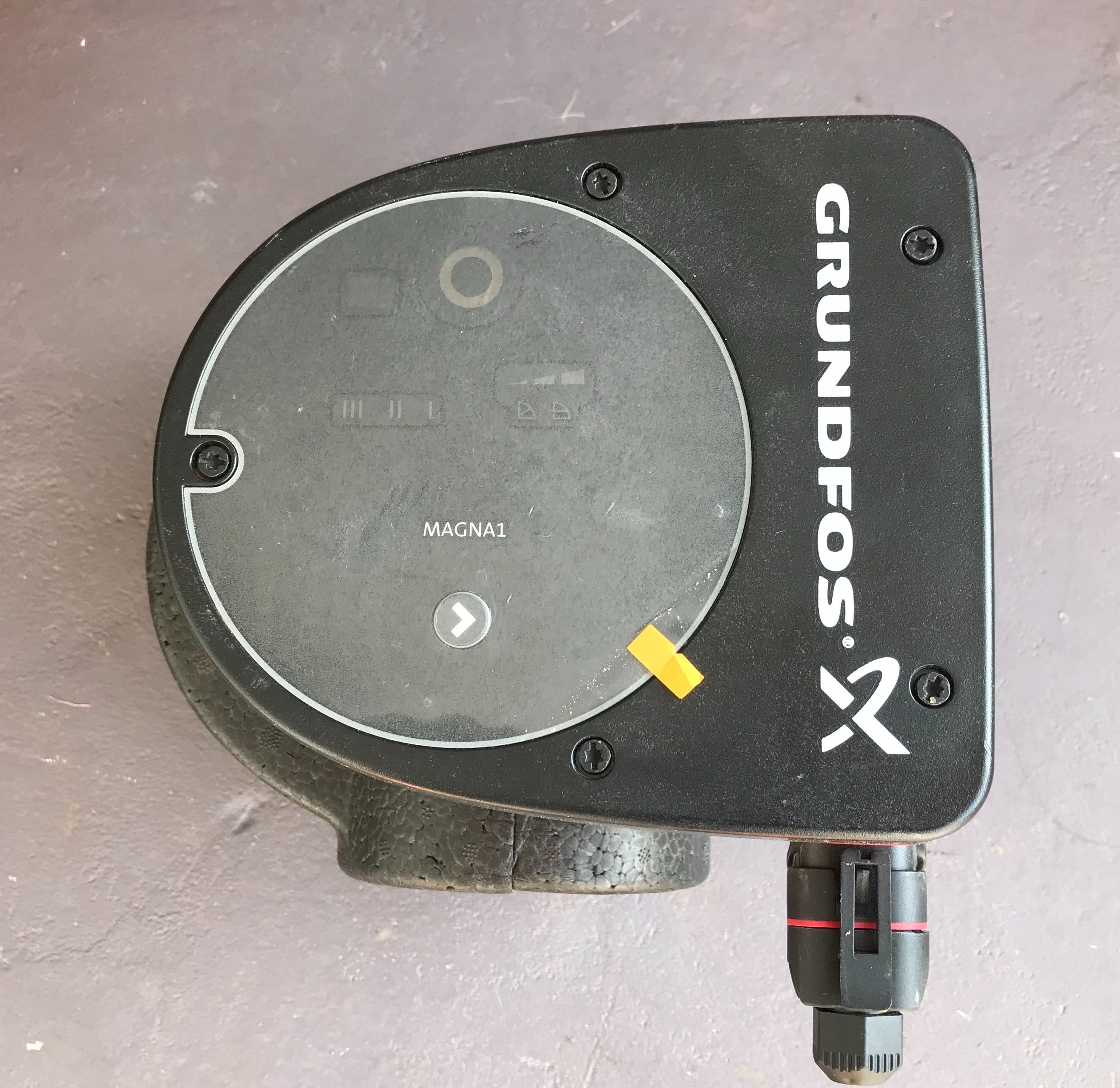

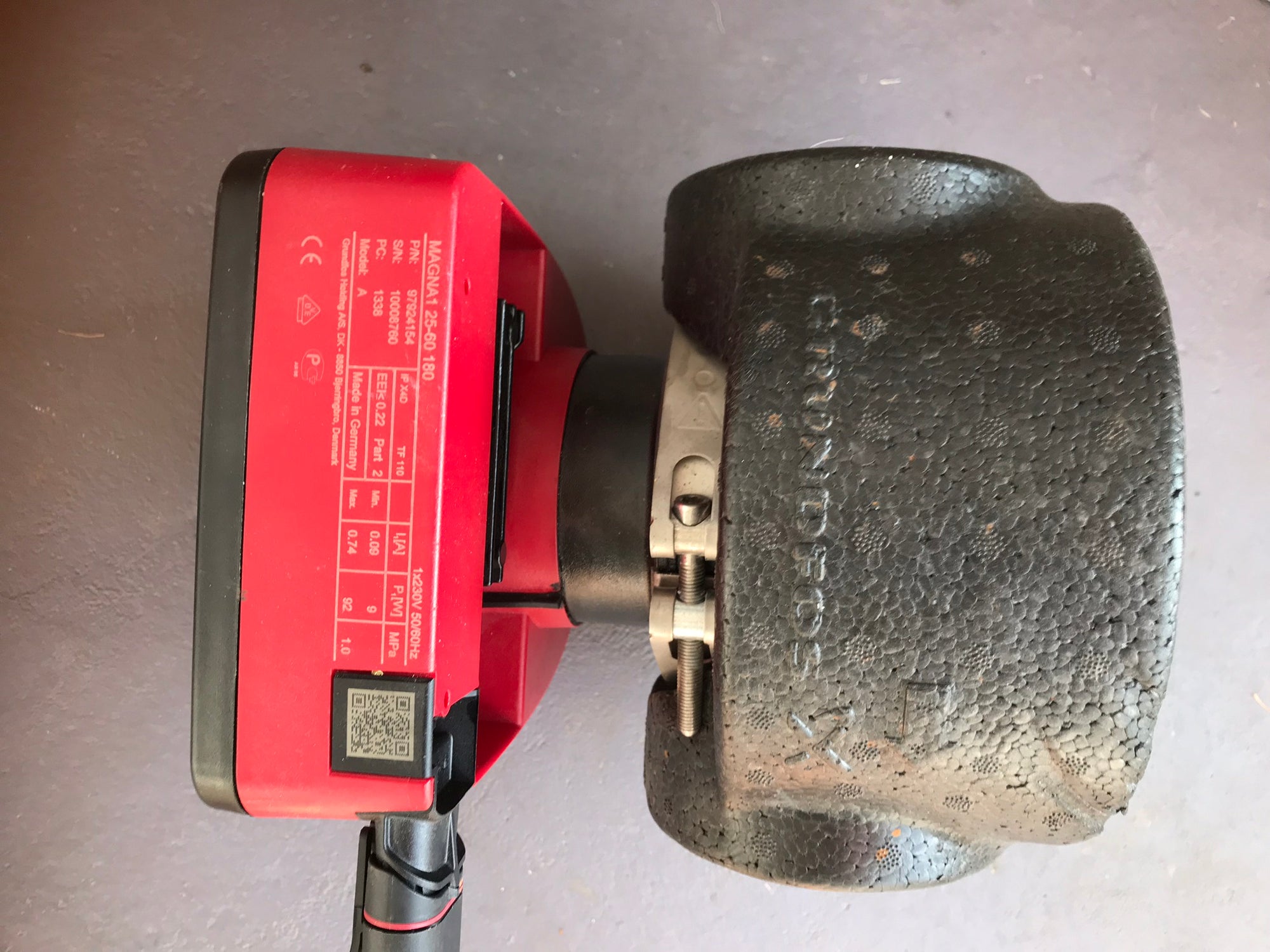

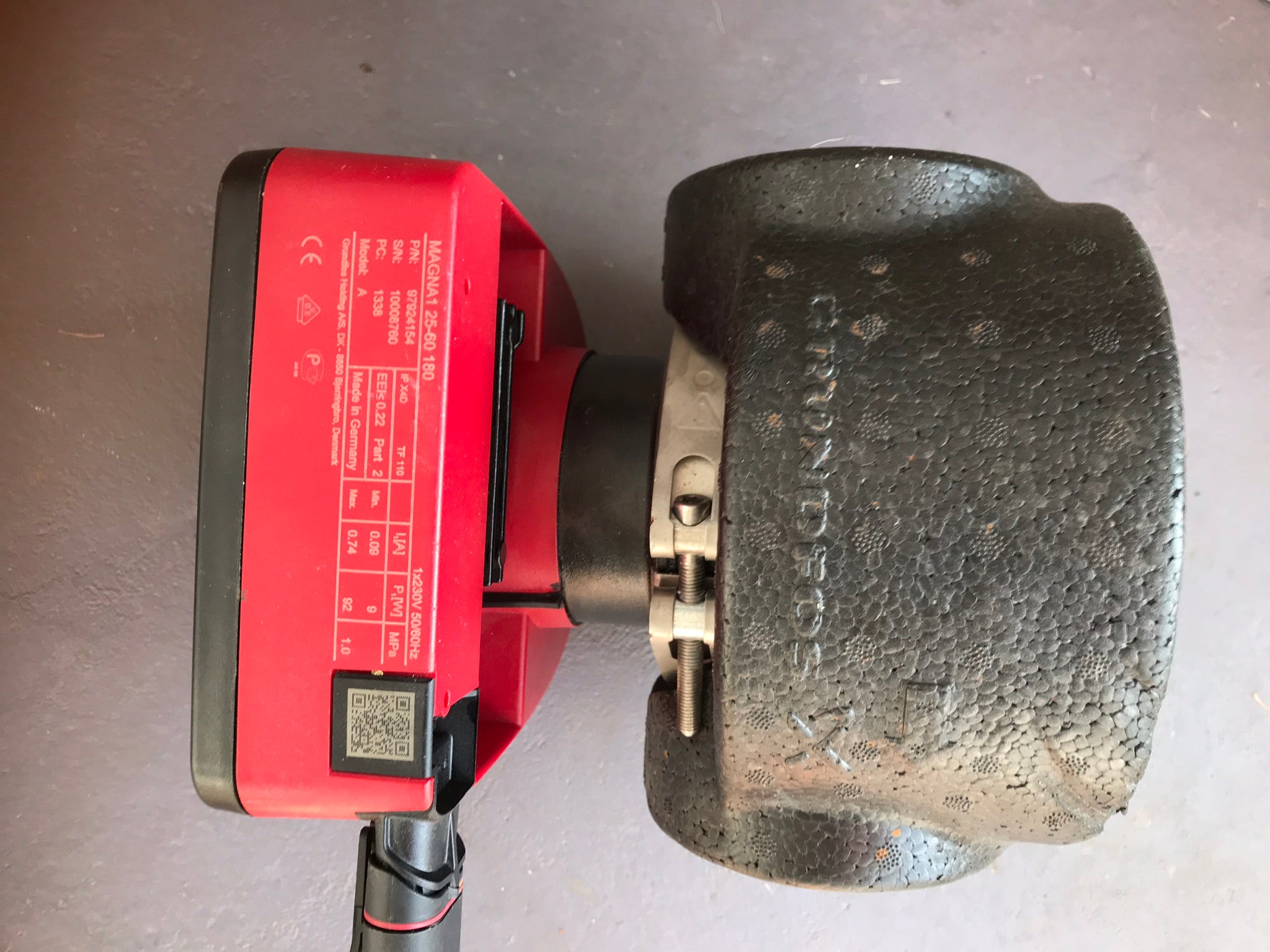

Grundfos Magna1 25-60 180mm Heating Circulator Threaded Pump USED #992
£165.83GBP
inc VAT
Technical Information
6 Month guarantee on all of our used pumps
Please call us for free advice on replacement
We also take card payment over the phone
We buy and sell new and unused pumps
Can deliver for next day if ordered before 4pm
Same day delivery possible please call for a quote
MAJORITY OF OUR PUMPS ARE NEW, UNUSED, NEVER BEEN FITTED SURPLUS STOCK
Please call us for free advice on replacement
We also take card payment over the phone
We buy and sell new and unused pumps
Can deliver for next day if ordered before 4pm
Same day delivery possible please call for a quote
MAJORITY OF OUR PUMPS ARE NEW, UNUSED, NEVER BEEN FITTED SURPLUS STOCK
WORLDWIDE DELIVERY AVAILABLE
Internationally for free we ship to:
Aland Islands, Armenia, Austria, Belarus, Belgium, Bosnia And Herzegovina, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Faroe Islands, Finland, France, Georgia, Germany, Greece, Guernsey, Hungary, Iceland, Ireland, Isle Of Man, Italy, Jersey, Latvia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Republic Of, Moldova, Republic of, Monaco, Montenegro, Netherlands, Norway, Poland, Portugal, Romania, San Marino, Serbia, Slovakia, Slovenia, Spain (50 of 52 provinces), Sweden, Switzerland
For Free under 30kg
2-3 Day shipping internationally
Condition: Used. 6 month guarantee
Specifications
| Product name | MAGNA1 25-60 |
| Product No | 97924154 |
| EAN number | 5710626492220 |
| Price | On request |
| Technical | |
|---|---|
| Head max | 60 dm |
| TF class | 110 |
| Approvals on nameplate | CE,VDE,EAC |
| Model | A |
| Materials | |
|---|---|
| Pump housing | Cast iron |
| Pump housing | EN-GJL-200 |
| Pump housing | ASTM A48-200B |
| Impeller | PES 30%GF |
| Installation | |
|---|---|
| Range of ambient temperature | 0 .. 40 °C |
| Maximum operating pressure | 10 bar |
| Pipe connection | G 1 1/2" |
| Pressure stage | PN10 |
| Port-to-port length | 180 mm |
| Liquid | |
|---|---|
| Pumped liquid | Water |
| Liquid temperature range | -10 .. 110 °C |
| Liquid temp | 60 °C |
| Density | 983.2 kg/m³ |
| Electrical data | |
|---|---|
| Power input - P1 | 9 .. 92 W |
| Mains frequency | 50 Hz |
| Rated voltage | 1 x 230 V |
| Maximum current consumption | 0.09 .. 0.74 A |
| Enclosure class (IEC 34-5) | X4D |
| Insulation class (IEC 85) | F |
| Others | |
|---|---|
| Label | Grundfos Blueflux |
| Energy (EEI) | 0.22 |
| Net weight | 4.38 kg |
| Gross weight | 4.78 kg |
| Shipping volume | 0.012 m³ |
