GRUNDFOS MG132SC2 38FF265 H3 5.5kW 415V 85U17417 IM V1/B5 Motor #4831

GRUNDFOS MG132SC2 38FF265 H3 – 5.5 kW 415V 2-Pole Electric Motor IM V1/B5 (85U17417) #4831

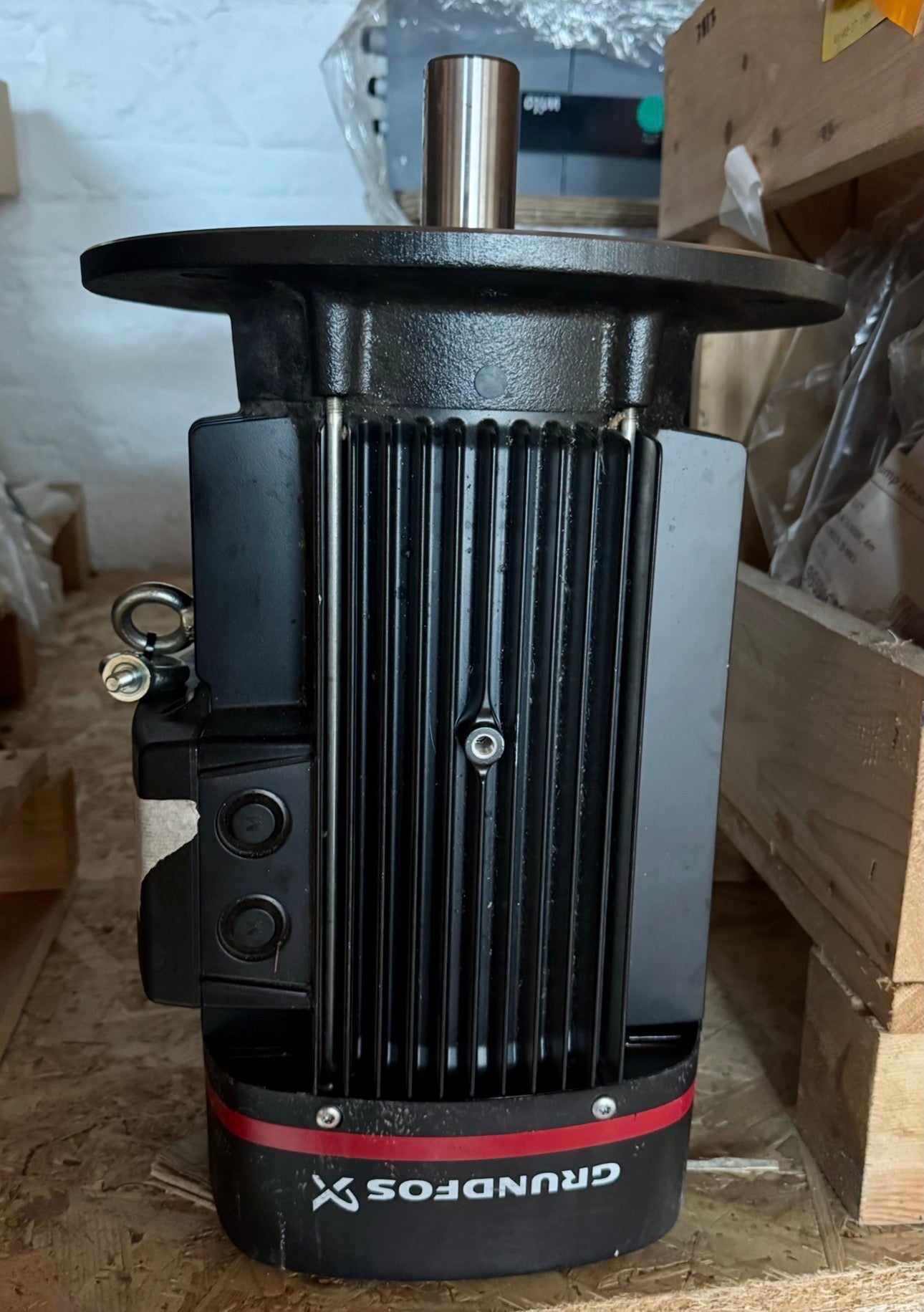

This listing is for a Grundfos MG132SC2 electric motor, product number 85U17417. It is a 5.5 kW, 3-phase 415V class, 2-pole motor with IM V1/B5 mounting and FF265 motor flange, intended for compatible Grundfos pump assemblies where the motor type, flange, shaft and mounting arrangement match.

Condition: supplied in as new surplus condition – the unit has not been installed or used but may show minor cosmetic markings from storage and handling. Guarantee: supplied with a 2-year guarantee.

• Motor type: Grundfos MG132SC2 electric motor
• Grundfos product number: 85U17417
• Motor code: 38FF265 H3
• Rated output: 5.5 kW
• Electrical supply: 3 × 380–415 V, 50 Hz
• Poles: 2-pole
• Rated speed: 2920–2940 RPM
• Efficiency class: IE3
• Frame / motor size: MG132SC
• Mounting arrangement: IM V1 / B5
• Motor flange size: FF265
• Use: replacement motor for compatible Grundfos pump units

Need help confirming compatibility?
Call us on 01803 220416 for technical advice before ordering.

Manufacturer product page

Full technical specifications and documentation can be viewed on the official Grundfos product page:
View Grundfos MG132SC motor (85U17417) – Variant specifications

Compatibility guidance

This motor should be selected by matching the Grundfos product number, motor type, mounting arrangement, flange, shaft dimensions and electrical specification against the existing motor or pump documentation.

This motor may fit the following Grundfos pump models

The motor number 85U17417 has been found against selected Grundfos CR, CRI, CRN and MTR pump variants. This is not a guaranteed complete compatibility list. Please match by full motor number, frame/interface, shaft, voltage, mounting and original pump product number before purchase.

CR pump variants

• CR 5-22 A-FGJ-A-V-HQQV
• CR 5-32 A-FGJ-A-E-HQQE
• CR 5-32 K-FGJ-A-E-HQQE
• CR 5-32 EX-FGJ-A-E-HQQE
• CR 10-14 E-FJ-A-E-HQQE
• CR 10-16 KX-FJ-A-E-HQQE
• CR 15-6 A-F-A-E-HQQE
• CR 20-4 A-F-A-E-HQQE
• CR 20-4 A-F-A-K-HQQK
• CR 20-5 A-F-A-E-HQQE
• CR 64-1 A-F-A-E-HQQE
• CR 64-1 A-F-A-V-HQQV
• CR 64-1 F-F-A-V-HQQV
• CR 95-1-1 A-F-A-E-HQQE
• CR 95-1-1 X-F-A-E-HQQE

CRI pump variants

• CRI 5-32 A-P-T-E-HQQE
• CRI 5-36 A-FGJ-A-E-HQQE
• CRI 10-14 X-FGJ-A-V-HQQV
• CRI 10-16 A-FGJ-A-E-HQQE
• CRI 15-5 BF-FGJ-A-F-HQQK
• CRI 15-6 A-FGJ-T-E-HQQE
• CRI 20-4 A-CA-A-E-HQQE
• CRI 20-5 A-FGJ-A-E-HQQE

CRN pump variants

• CRN 5-22 A-FGJ-A-E-HQQE
• CRN 5-22 A-FGJ-A-V-HQQV
• CRN 5-22 A-P-A-E-HQQE
• CRN 5-22 B-FGJ-A-V-HQQV
• CRN 5-36 A-FGJ-A-E-HQQE
• CRN 5-36 A-FGJ-A-V-HQQV
• CRN 5-36 A-P-A-E-HQQE
• CRN 5-36 A-P-A-V-HQQV
• CRN 10-14 A-FGJ-A-E-HQQE
• CRN 10-16 A-FGJ-A-V-HQQV
• CRN 15-7 E-P-A-V-HQBV
• CRN 20-4 A-CA-A-V-HQQV
• CRN 20-4 A-CA-T-E-HQQE
• CRN 20-4 A-FGJ-A-V-HQQV
• CRN 20-4 A-P-A-V-HQQV
• CRN 95-1-1 A-P-A-V-HQQV
• CRN 95-1-1 X-F-N-E-HQQE

MTR pump variants

• MTR 5-22/22 A-W-A-HQQV
• MTR 10-14/14 A-W-A-HUUV
• MTR 10-18/16 A-W-A-HUUV
• MTR 15-4/4 A-W-A-HUUV
• MTR 20-8/4 A-W-A-HUUV
• MTR 45-12/2-2 A-F-A-HUUV

Frequently Asked Questions

What does the motor code mean?

• MG – Grundfos MG motor range
• 132 – motor frame size class
• SC2 – 2-pole MG132SC motor configuration
• 38FF265 – manufacturer motor variant code including FF265 flange size reference
• H3 – manufacturer configuration code
• IM V1/B5 – vertical flange-mounted arrangement

Will this motor fit my pump?

It may fit if your existing unit uses the same Grundfos motor product number or an approved equivalent. Please compare the motor nameplate, product number, mounting arrangement, motor flange size, shaft and pump interface before ordering. If unsure, send us a photo of your existing motor nameplate and pump nameplate.

Is this a complete pump?

No. This listing is for the electric motor only, not a complete pump assembly.

Can this be used as a replacement motor?

Yes, provided the electrical and mechanical specification matches your existing Grundfos pump assembly. Compatibility should always be checked before purchase, as similar-looking motors may have different shafts, flanges, rated speeds or configuration codes.

Who should install this motor?

Installation should be carried out by a suitably qualified engineer or electrician. The motor must be wired and protected according to the motor nameplate, pump documentation and applicable electrical regulations.

About Our Stock

Stock code: #4831
We specialise in supplying new and unused surplus pumps, motors and pump spares. All units are inspected prior to dispatch and supplied with a 2-year guarantee.
