    • Grundfos NB NK TP TPD EPDM Pump Casing O-Ring 329.79 × 3.53mm 97757675 #5058

    Grundfos NB NK TP TPD EPDM Pump Casing O-Ring 329.79 × 3.53mm 97757675 #5058

    £39.00GBP inc VAT

    Technical overview

    About these figures

    These figures provide simplified information for searching, filtering and initial comparison. They are not a complete specification. Exact details depend on the model and configuration.

    Power rating: Usually the motor’s rated mechanical output (P2). Electrical input power (P1) is a different value. Check the product’s nameplate or manufacturer’s documentation to confirm which rating applies.

    Outlet size: The nominal size class is expressed on a millimetre basis: for example, DN40 denotes a nominal 40 mm size. It does not specify the exact measured opening, connection type, thread, flange drilling or pressure rating.

    Head and flow: Indicative figures describing the pump’s performance envelope, rather than a single operating duty point. Do not assume maximum flow is available at maximum head, or that every combination within the ranges is achievable. Minimum figures do not establish safe continuous operating limits. Consult the relevant performance curve.

    Check the product description, nameplate and manufacturer’s documentation before selection or installation. Please contact us before purchasing if you need help confirming suitability or connection details.

    Shipping Weight 0.5 kg
    Package Dimensions 20.0 × 20.0 × 10.0 cm

    In stock: 9

    Grundfos NB NK TP TPD EPDM Pump Casing O-Ring — 329.79 × 3.53mm — 97757675

    Genuine Grundfos replacement pump casing O-ring, part number 97757675. Manufactured from EPDM rubber and specified at 329.79 × 3.53mm, this seal is used on selected Grundfos end-suction and in-line pumps.

    Applications include specific NB, NK, TP and TPD models, together with selected NBE, NKE, NBG, NKG, TPE, TPED and other variants listed below. This is the static casing-joint seal, commonly identified as position 72a in the applicable Grundfos service drawings.

    Stock reference: #5058
    New, unused surplus stock.
    Supplied with our 2-year dealer guarantee.

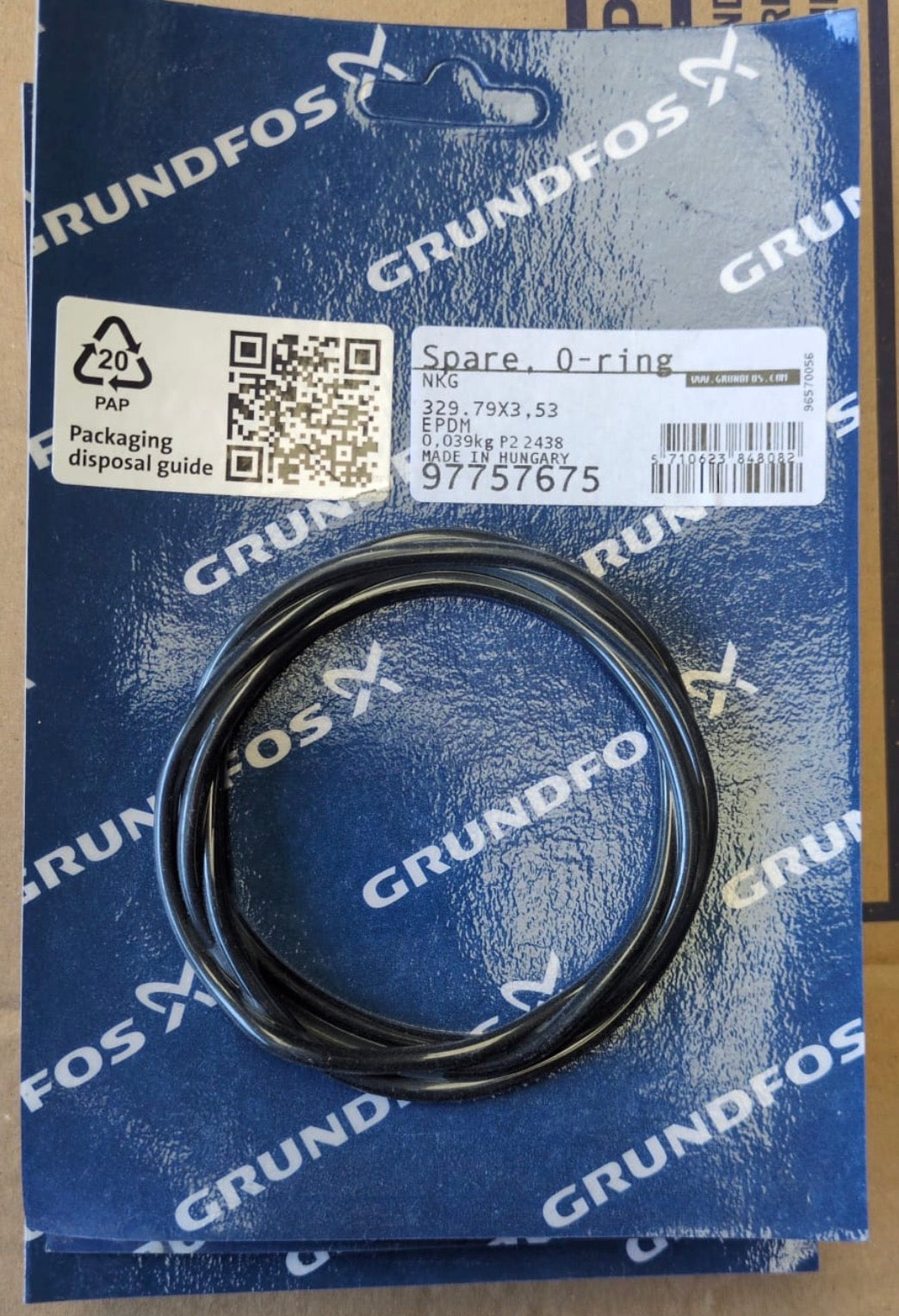

    Please refer to the listing photographs for the item and packaging supplied. Packaging may show storage or handling marks.

    Technical Specification

    Manufacturer Grundfos
    Part number 97757675
    Manufacturer description Spare, O-ring
    Application Pump casing / cover joint on specified Grundfos pumps
    Material EPDM rubber
    Nominal dimensions 329.79mm internal diameter × 3.53mm cross-section
    Calculated nominal outside diameter 336.85mm, uncompressed
    Grundfos dimension code 329.79X3,53
    Service drawing position Commonly 72a; check the drawing for the exact pump
    Quantity supplied One O-ring
    Manufacturer net weight 0.012kg
    EAN 5710623848082
    Our stock reference #5058

    What Is Included?

    One Grundfos 97757675 EPDM casing O-ring. A mechanical shaft seal, wear rings, additional gaskets, pump casing and other service components are not included.

    Technical Questions & Answers

    What do the dimensions 329.79 × 3.53mm mean?

    329.79mm is the nominal internal diameter of the O-ring. The 3.53mm dimension is the diameter of its circular rubber cross-section. Adding twice the cross-section gives a calculated nominal outside diameter of 336.85mm. These are nominal dimensions for an uncompressed ring.

    What does EPDM mean?

    EPDM stands for ethylene propylene diene rubber. It is an elastomer commonly used for water and hot-water sealing applications. Grundfos describes ethylene propylene rubber as having excellent water resistance but very poor resistance to mineral oil and fuel. Material suitability must therefore match the pumped liquid.

    Where does this O-ring fit?

    On the applicable pumps, it seals the stationary joint between the pump housing and its cover or motor-stool assembly. Grundfos commonly identifies this casing seal as position 72a. The exact assembly arrangement must be checked against the service drawing for your pump.

    Is this the mechanical shaft seal?

    No. The casing O-ring seals a stationary housing joint. The mechanical shaft seal seals around the rotating shaft and is a separate component. Replacing this O-ring will not repair a worn mechanical shaft seal.

    Does it fit every NB, NK, TP or TPD pump?

    No. These pump families use several casing sizes and seal materials. Match 97757675 against the service parts information for the complete eight-digit pump product number, taking account of its production code and configuration. Family name or flange size alone is insufficient.

    Why do the compatible pump names include BQQE, BAQE, GQQE or other seal codes?

    Those codes form part of the complete pump designation and describe its mechanical shaft-seal arrangement. They help identify the pump, but they do not independently establish the size of its casing O-ring. The references below were checked for the exact casing O-ring part number 97757675.

    Is EPDM interchangeable with FKM or a certified EPDM version?

    Do not select an alternative by dimensions alone. For this size, the Grundfos NB/NBE Range 6 catalogue distinguishes 97757675 — EPDM, 97757705 — FKM/Viton and 92526503 — EPDM-NSF. These are separate specifications. This listing is for standard EPDM part 97757675; it does not claim the certification of the separately listed EPDM-NSF version.

    Can it be used with heating water or glycol mixtures?

    EPDM is commonly selected for water-based systems, including suitable heating and cooling applications. For glycol mixtures, confirm compatibility with the actual glycol type, concentration, inhibitors and operating temperature. The pump manufacturer's requirements and the fluid supplier's compatibility guidance should both be followed.

    What are its maximum temperature and pressure ratings?

    The O-ring's material and dimensions do not establish a universal operating limit for every pump. Use the permitted temperature and pressure limits for the exact pump, liquid and seal configuration. General EPDM temperature information should not be treated as an operating rating for the assembled pump.

    How many are required for a twin-head TPD or TPED pump?

    This listing supplies one O-ring. The quantity required depends on which pump-head joints are being opened and the relevant service drawing. If both heads are being serviced, check the parts quantities before ordering.

    Should the old casing O-ring be reused?

    Grundfos service instructions call for replacement of gaskets and O-rings during servicing. A used ring may have taken a compression set or suffered damage during removal, even when it appears intact.

    What should be checked during installation?

    Isolate, depressurise and drain the pump, allowing hot equipment to cool before dismantling. Clean and inspect the seal groove and mating surfaces, fit the ring without twisting or pinching it, and use the lubricant and tightening procedure specified for the exact pump. Avoid assuming that a general-purpose oil or grease is compatible with EPDM.

    Will replacing this O-ring cure every pump leak?

    It can address leakage from the casing joint where this ring is the specified seal and the sealing surfaces remain serviceable. Leakage from the shaft seal, plugs, pipe flanges or a damaged casting requires separate diagnosis.

    Manufacturer Information

    Need Help Confirming Compatibility?

    Send us a clear photograph of the pump nameplate, including its complete product number and production code, together with the existing spare-part label if available.

    The Pump Dealer
    Telephone: 01803 220416
    Email: kirk@thepumpdealer.co.uk
    Please quote 97757675 / stock #5058.

    Delivery & Guarantee

    • Free UK shipping.
    • Orders received before 4pm are dispatched the next working day.
    • Same-day courier delivery can be quoted by telephone.
    • International shipping costs are confirmed after checkout.
    • Supplied with our 2-year dealer guarantee.

    Confirmed Grundfos Pump References

    Our research identified 596 manufacturer pump references whose recommended service-parts records include 97757675. The list below contains 578 published model designations, followed by 16 abbreviated manufacturer descriptions and two service-special references.

    The eight-digit number at the end of each entry identifies the pump. Full published type codes have been retained where available, including separate product numbers sharing the same model description.

    These are confirmed manufacturer references found during research, not a claim that every worldwide or historical variant has been identified. Check the pump's exact product number, production code and EPDM casing-seal specification before ordering. An unlisted pump may still use this part.

    NB — Published Model References

    • NB 40-315/273 AAF2NESBQQEQW1 — 98937530
    • NB 40-315/273 AASF2AESBQQEQW1 — 98976264
    • NB 40-315/273 AASF2LESBQQEQW1 — 98309070
    • NB 40-315/283 AAF2AESBQQEJW3 — 98979003
    • NB 40-315/283 AF2BBAQE — 96794445
    • NB 40-315/298 AAF2NESBQQERW1 — 98567289
    • NB 40-315/305 AAEF2AESBQQEKW3 — 92912795
    • NB 40-315/305 AAF2AESBQQEKW3 — 98503608
    • NB 40-315/305 AAF2BESBAQEKW3 — 97840311
    • NB 40-315/318 AASF2AESBQQESW1 — 93424836
    • NB 40-315/329 AAF2SESBAQESW1 — 99328211
    • NB 40-315/334 AAEF2BESBAQELW3 — 92564062
    • NB 40-315/334 AAF2AESBQQELW3 — 99535606
    • NB 40-315/334 AAF2KESBQQELW3 — 98094197
    • NB 40-315/336 AAF2BESBQQETW1 — 93411265
    • NB 40-315/344 AAF2KESBQQENW4 — 98310502
    • NB 40-315/344 AAF2SESBQQELW3 — 92500809
    • NB 50-315/267 AASF2BESBQQERW1 — 93424951
    • NB 50-315/277 AF2KBQQE — 98308711
    • NB 50-315/285 AAF2RESBQQESW1 — 98588083
    • NB 50-315/300 AAF2AESBQQETW1 — 99535976
    • NB 50-315/303 AAF2AESBQQELW3 — 98594413
    • NB 50-315/321 AAF2AESBAQEUW1 — 97836791
    • NB 50-315/321 AAF2RESBQQEUW1 — 98941172
    • NB 50-315/344 AAF2NESBQQENW3 — 98938270
    • NB 50-315/344 AF2KBQQE — 98308715
    • NB 50-315/344 ASF2KBQQE — 98309398
    • NB 65-315/277 AASF2KESBQQEUW1 — 99982591
    • NB 65-315/278 AF2BBAQE — 99279777
    • NB 65-315/282 AAF2BESBAQEMW3 — 99518140
    • NB 65-315/282 AAF2SESBBQEMW3 — 99440756
    • NB 65-315/292 AF2BBAQE — 98285524
    • NB 65-315/296 AF2ABAQE — 98374910
    • NB 65-315/306 AF2BBAQE — 98829568
    • NB 65-315/314 AAF2AESBQQENW3 — 98073808
    • NB 65-315/314 ACF2AESBAQEXW3 — 96530386
    • NB 65-315/317 AF2BBAQE — 98712136
    • NB 65-315/320 AAF2RESBQQEOW3 — 98585329
    • NB 65-315/320 AASF2KESBQQEOW3 — 99054875
    • NB 65-315/320 AF2BBQQE — 97644000
    • NB 80-315/275 AF2ABAQE — 96126555
    • NB 80-315/305 AAF2KESBQQEOW3 — 97979213
    • NB 80-315/310 AAF2JESBQQE2W1 — 98911658
    • NB 80-315/328 AAF2AESBQQEYW1 — 99536278
    • NB 80-315/334 AASF2AESBAQEQW3 — 98444110
    • NB 80-315/334 AASF2AESBQQEQW3 — 98868112
    • NB 80-315/334 AASF2AESBQQESW4 — 93442585
    • NB 80-315/334 AASF2KESBQQEQW3 — 98309405
    • NB 100-315/269 AASF2AESBAQE1W1 — 98302188
    • NB 100-315/279 AAF2BESBAQEOW3 — 93265663
    • NB 100-315/281 AAF2BESBAQEPW3 — 99421744
    • NB 100-315/282 AAF2BESBAQEPW3 — 92537783
    • NB 100-315/295 AAF2BESBAQEPW3 — 92567304
    • NB 100-315/310 AAF2BESBAQEQW3 — 99490600
    • NB 100-315/312 AASF2AESBQQEQW3 — 93015577
    • NB 100-315/320 AAF2AESBAQERW3 — 92695413
    • NB 100-315/321 AAF2BESBAQEQW3 — 99570196
    • NB 100-315/322 AAF2IESBAQEYW1 — 92838323
    • NB 100-315/334 AAF2AESBAQENW5 — 98305378
    • NB 100-315/334 AAF2AESDAQFRW3 — 99269599
    • NB 100-315/334 AASF2AESBQQERW3 — 93137075
    • NB 100-315/334 AF2BBAQE — 98457004
    • NB 100-315/334 AHAF2AESBQQERW3 — 92500949
    • NB 125-315/280 AAF2BESBAQEQW3 — 93216715
    • NB 125-315/290 AAF2SESBQQEQW3 — 98933963
    • NB 125-315/290 AASF2AESBQQEQW3 — 99873375
    • NB 125-315/303 AAF2AESBQQERW3 — 93263882
    • NB 125-315/321 AAF2BESBAQERW3 — 93048596
    • NB 125-315/336 AAF2AESBQQESW3 — 98843529
    • NB 125-315/336 AF2ABAQE — 98731922
    • NB 125-315/338 AAF2AESBAQETW3 — 99535592
    • NB 125-315/338 AAF2RESBQQETW3 — 98940510
    • NB 150-315.2/320 AASF1AESBAQETW3 — 93039913
    • NB 150-315.2/334 AIASF1AESBQQEUW3 — 99793867
    • NB 150-315.2/342 AAF1SESBQQEPW5 — 99651982
    • NB 150-315.2/342 AASF1TESBQQEPW5 — 99382477
    • NB 150-315/291 AF1BBAQE — 98871025
    • NB 150-315/301 AAF1AESBAQEUW3 — 98997459
    • NB 150-315/305 AF1BBAQE — 99021583
    • NB 150-315/310 ACF1AESBAQEXW3 — 92689241
    • NB 150-315/310 AIAF1AESBQQEUW3 — 99014715
    • NB 150-315/337 AHASF1AESBQQEQW5 — 99998947

    NBE — Published Model References

    • NBE 50-315/344 ASF2BBAQE — 98837576
    • NBE 65-315/261 AAF2AESBQQELWA — 99101972
    • NBE 80-315/278 AASF2KESBQQEWW1 — 93033453
    • NBE 80-315/280 AAF2NESBQQENWA — 97773241
    • NBE 80-315/280 AASF2AESBQQENWA — 98976087
    • NBE 80-315/305 AASF2AESBQQEOWA — 98976055
    • NBE 80-315/305 AASF2KESBQQEOWA — 99583814
    • NBE 80-315/320 AASF2KESBQQEPWA — 92968916
    • NBE 80-315/320 AHAF2AESBAQEPW3 — 96539056
    • NBE 80-315/334 AHAF2AESBQQEQW3 — 92686620
    • NBE 80-315/334 AHAF2KESBQQEQW3 — 92686616
    • NBE 100-315/264 AASF2LESBQQEQWA — 92969021
    • NBE 100-315/279 AAF2AESBAQEOWA — 95108706
    • NBE 100-315/279 AAF2KESBQQEOWA — 97746604
    • NBE 100-315/279 AAF2LESBQQEOWA — 97746605
    • NBE 100-315/279 AASF2AESBAQEOWA — 98140373
    • NBE 100-315/279 AF2SBQQE — 98829584
    • NBE 100-315/295 AASF2KESBQQEPWA — 92968917
    • NBE 100-315/295 AHAF2KESBQQEPW3 — 97746606
    • NBE 100-315/312 AASF2AESBQQEQWA — 92968892
    • NBE 100-315/334 AIAF2AESBQQERW3 — 92930194
    • NBE 100-315/334 AIASF2KESBQQERW3 — 92942339
    • NBE 125-315/275 AHASF2KESBQQEPW3 — 99742863
    • NBE 125-315/336 AIASF2KESBQQESW3 — 92942443

    NBS and NBSE — Published Model References

    • NBS 030-135/11.73 AASG6SMESBQQEMY6 — 92560136
    • NBS 040-135/10.94 AASG6SMESBQQEQX4 — 92559796
    • NBS 040-135/11.81 AASG7SVESDQQERX4 — 92559815
    • NBS 050-135/11.30 AGASG6SPESBQQESX4 — 93434181
    • NBS 060-135/10.75 AASG6SMESBQQEOY6 — 92560663
    • NBS 060-135/11.22 AGASG6SPESBQQEUX4 — 92900742
    • NBSE 020-135/1339-1323 ASASG6SMESBQQEOCA — 93185027
    • NBSE 030-135/9.76 AASG6SMESBQQEOBD — 93306837
    • NBSE 030-135/11.06 ASASG6SMESBQQEQBD — 93307146
    • NBSE 030-135/11.77 AASG6SMESBQQEPCA — 93184896
    • NBSE 030-135/11.77 ASASG6SMESBQQEPCA — 93185042
    • NBSE 040-135/12.64 AASG6SMESBQQESBD — 93306865
    • NBSE 080-135/9.84 AASG6SMESBQQETBD — 93306923
    • NBSE 080-135/9.84 AASG6SMESBQQETDD — 93293521

    NBG — Published Model References

    • NBG 80-50-315/256 AAF2LESBQQELW4 — 98312058
    • NBG 80-50-315/267 AAF2AESBAQERW1 — 99116949
    • NBG 80-50-315/267 AASF2BESBAQERW1 — 98343704
    • NBG 80-50-315/267 AASF2LESBQQERW1 — 98341039
    • NBG 80-50-315/277 AE2ASBQQE — 96770656
    • NBG 80-50-315/300 AASF2KESBQQETW1 — 98340738
    • NBG 80-50-315/321 AASF2AESBQQEUW1 — 93417929
    • NBG 80-50-315/326 AF2BBAQE — 98122319
    • NBG 80-50-315/344 AASF2AESBQQENW3 — 93411718
    • NBG 80-50-315/344 ASF2BBAQE — 98302567
    • NBG 100-65-315/261 AAF2LESBQQELW3 — 93422096
    • NBG 100-65-315/274 AF2ABAQE — 98803862
    • NBG 100-65-315/282 AAF2BESBAQEMW3 — 99117411
    • NBG 100-65-315/288 AF2BBAQE — 97508621
    • NBG 100-65-315/292 AF2BBAQE — 96763426
    • NBG 100-65-315/303 AF2ABAQE — 98715399
    • NBG 100-65-315/306 AF2ABAQE — 96809987
    • NBG 100-65-315/314 AE2DBQQE — 96883275
    • NBG 100-65-315/320 AAF2BESBAQE1W1 — 97838199
    • NBG 100-65-315/320 AF2SBQQE — 98904411
    • NBG 125-80-315/299 AF2BBAQE — 96760028
    • NBG 125-80-315/313 AF2ABAQE — 97506663
    • NBG 125-80-315/331 AF2ABQQE — 98779444
    • NBG 125-100-315/295 AAF2AESBQQEPW3 — 93351057
    • NBG 125-100-315/295 AF2BBAQE — 99292830
    • NBG 125-100-315/301 AF2BBAQE — 99315701
    • NBG 125-100-315/310 AF2ABAQE — 99081426
    • NBG 125-100-315/326 AAF2AESBAQEMW5 — 99117077
    • NBG 125-100-315/334 AASF2BESBAQERW3 — 98068156
    • NBG 150-125-315/290 AF2ABAQE — 97631845
    • NBG 150-125-315/326 AF2ABQQE — 97895762
    • NBG 200-150-315/294 AAF2AESBAQETW3 — 99336829

    NBGE — Published Model References

    • NBGE 100-65-315/320 AAF2AESBAQEOWA — 93610992
    • NBGE 125-100-315/295 AAF2AESBQQEPWA — 92968831
    • NBGE 150-125-315/290 AAF2KESBQQEQWA — 92968941
    • NBGE 150-125-315/336 AIASF2KESBQQESW3 — 92943612
    • NBGE 150-125-315/338 AAF2AESBQQETW3 — 93033615
    • NBGE 200-150-315.2/314 AIASF2AESBQQETW3 — 92943393
    • NBGE 200-150-315.2/334 AAF2AESBQQEUW3 — 93033640
    • NBGE 200-150-315/310 AIAF2KESBQQEUW3 — 92943555

    NK — Published Model References

    • NK 40-315/273 AA1F2KESBQQEQW1 — 98294810
    • NK 40-315/273 AA2F2AESBQQEQW1 — 98972743
    • NK 40-315/283 AA1F2AESBQQEJW3 — 98970589
    • NK 40-315/305 AA2F2LESBQQEKW3 — 98325761
    • NK 40-315/306 A2F2LE-SBQQE — 98085618
    • NK 40-315/318 AA2F2BESBQQESW1 — 93407886
    • NK 40-315/318 AAEF2KESBQQESW1 — 92855080
    • NK 40-315/334 A1F2AE-SBQQE — 98970595
    • NK 40-315/334 AA1F2AESBAQELW3 — 97829347
    • NK 40-315/334 AA1F2BESBQQELW3 — 93407345
    • NK 40-315/336 AA1F2AESBQQETW1 — 98970383
    • NK 40-315/336 AA1F2KESBQQETW1 — 98947090
    • NK 40-315/336 AA1F2NESBQQETW1 — 98939135
    • NK 40-315/344 AY1F2AESBAQEXW3 — 99033331
    • NK 50-315/269 AA2F2SESBQQERW1 — 92504295
    • NK 50-315/277 AY1F2BESBAQEXW1 — 99920012
    • NK 50-315/299 Y1F2AE-SBQQE — 98718718
    • NK 50-315/304 AY1F2SESBAQEXW3 — 99153005
    • NK 50-315/311 AA1F2BESBAQEMW3 — 92536723
    • NK 50-315/322 Y1F2BE-SBAQE — 98610178
    • NK 50-315/323 AA1F2BESBAQENW3 — 92625981
    • NK 50-315/332 AY1F2SESBAQEXW3 — 99944025
    • NK 50-315/344 AA1F2BESBAQENW3 — 99386245
    • NK 50-315/344 AA2F2AESBQQENW3 — 93112219
    • NK 50-350/301 AA1F1S3ESBQQELW3 — 93310502
    • NK 50-350/323-319 AA1F2S3ESBQQENW3 — 93482667
    • NK 65-315/272 Y1F2AE-SBAQE — 98782885
    • NK 65-315/278 Y1F2BE-SBAQE — 98186876
    • NK 65-315/280 Y1F2BE-SBAQE — 98717847
    • NK 65-315/289 Y1F2AE-SBAQE — 96797745
    • NK 65-315/300 AY1F2AESBQQEXW1 — 99233373
    • NK 65-315/301 Y1F2BE-SBAQE — 98889785
    • NK 65-315/307 AY1F2BESBQQEXW1 — 99945389
    • NK 65-315/313 A1F2AE-SBAQE — 98711575
    • NK 65-315/314 A2F2BE-SBQQE — 99001797
    • NK 65-315/314 Y1F2AE-SBQQE — 98872234
    • NK 65-315/317 Y1F2BE-SBAQE — 97930560
    • NK 65-315/320 AA2F2BESBQQE1W1 — 99282585
    • NK 65-315/320 Y1F2BE-SBAQE — 98761572
    • NK 80-315/278 A1F2BE-SBAQE — 96788429
    • NK 80-315/299 Y1F2BE-SBAQE — 97576907
    • NK 80-315/300 Y1F2BE-SBAQE — 97794528
    • NK 80-315/314 Y1F2BE-SBAQE — 98990304
    • NK 80-315/319 AY1F2AESBQQEXW3 — 99322013
    • NK 80-315/326 Y1F2BE-SBAQE — 98957317
    • NK 80-315/328 AY1F2SESBAQEXW1 — 98853935
    • NK 80-315/334 Y1F2AE-SBAQE — 98721930
    • NK 80-315/334 Y1F2AE-SBAQE — 98764156
    • NK 80-315/334 Y1F2BE-SBAQE — 98840113
    • NK 80-350/296 AA1F1S3ESBQQEOW3 — 93355626
    • NK 100-315/280 AHAEF2AESBQQEOW3 — 93162963
    • NK 100-315/281 AA2F2BESBAQEPW3 — 93096937
    • NK 100-315/283 Y1F2AE-SBAQE — 98725841
    • NK 100-315/287 A1F2KE-SBAQE — 98847345
    • NK 100-315/290 Y1F2BE-SBAQE — 98990358
    • NK 100-315/305 Y1F2BE-SBAQE — 99014887
    • NK 100-315/318 A2F2AE-SBAQE — 98678641
    • NK 100-315/327 AY1F2AESBQQEXW3 — 92795248
    • NK 100-315/328 A1F2AE-SBAQE — 98718722
    • NK 100-315/334 AY1F2AESBAQEXW3 — 99648565
    • NK 100-315/334 AY1F2BESBAQEXW3 — 99394044
    • NK 100-350/285 AA1F2S3ESBQQEOW3 — 93491837
    • NK 100-350/307 AA1F2S3ESBQQEQW3 — 93118172
    • NK 100-350/318 AA1F2S3ESBQQEQW3 — 93241561
    • NK 125-315/285 AA1F2BESBAQEQW3 — 99559864
    • NK 125-315/303 Y1F2AE-SBAQE — 98879616
    • NK 125-315/306 AY1F2AESBQQEXW3 — 99619125
    • NK 125-315/310 Y1F2BE-SBAQE — 98828834
    • NK 125-315/312 Y1F2AE-SBAQE — 97750010
    • NK 125-315/330 Y1F2AE-SBQQE — 98895485
    • NK 125-315/332 Y1F2BE-SBAQE — 98990335
    • NK 125-315/338 AY1F2AESBAQEXW3 — 92568937
    • NK 125-320/271 AA1F1S4ESBQQEQW3 — 93334961
    • NK 125-320/271 AY1F2S3ESBQQEXW3 — 93544330
    • NK 125-320/288 AA1F2S3ESBQQERW3 — 93633395
    • NK 125-350/313 AA1F1S3ESBQQERW3 — 93631581
    • NK 150-315.1/342 Y1F1AE-SBQQE — 98875630
    • NK 150-315.2/319 AIXEF1AESBBQEUW3 — 92576452
    • NK 150-315.2/336 AA2F1AESBQQEPW5 — 92575753
    • NK 150-315/281 AA1F1SESBAQETW3 — 98767501
    • NK 150-315/288 AY1F1BESBAQEXW3 — 99815569
    • NK 150-315/315 AY1F1AESBAQEXW3 — 99336761
    • NK 150-315/330 AY1F1BESBAQEXW3 — 92613034
    • NK 150-315/338 AIEF1BESBAQEXW5 — 99528469
    • NK 150-350/326-322 AA1F1S3ESBQQEOW5 — 93084358
    • NK 200-350/333 AA1F2SBESBQQEWW3 — 93294466

    NKE — Published Model References

    • NKE 40-315/305 ASA1F2AESBQQEKWA — 99539529
    • NKE 65-315/317 AA1F2BESBAQENWA — 92503385
    • NKE 80-315/316 AA1F2SESBAQEPWA — 93512710
    • NKE 80-315/334 AHA2F2AESBQQEPW3 — 92543245
    • NKE 100-315/304 AHA1F2AESBBQEPW3 — 99094529
    • NKE 125-315/275 AHA1F2AESBQQEPW3 — 99289251
    • NKE 150-315.2/300 AA2F1AESBQQERW3 — 93538753

    NKG — Published Model References

    • NKG 65-40-315/273 AA2F2BESBQQEQW1 — 93408102
    • NKG 65-40-315/283 AA1F2KESBAQEJW3 — 98805720
    • NKG 65-40-315/283 AA1F2KESBQQEJW3 — 98292052
    • NKG 65-40-315/283 AA2F2AESBQQEJW3 — 93407685
    • NKG 65-40-315/298 AA1F2LESBQQERW1 — 93409839
    • NKG 65-40-315/334 AA1F2SESBQQELW3 — 97653979
    • NKG 65-40-315/336 AA1F2BESBQQETW1 — 93407150
    • NKG 65-40-315/336 AA2F2AESBQQETW1 — 93407274
    • NKG 65-40-315/344 AA1F2KESBQQEMW3 — 98291767
    • NKG 65-40-315/344 AY1E2CESBQQEXW1 — 99788269
    • NKG 80-50-315/267 AA1F2KESBQQERW1 — 98291872
    • NKG 80-50-315/277 AA1F2KESBQQEKW3 — 93354418
    • NKG 80-50-315/303 AA1F2LESBQQELW3 — 98292350
    • NKG 80-50-315/303 AY1E2CESBQQEXW3 — 93454099
    • NKG 80-50-315/321 AA1F2AESBQQEUW1 — 93351531
    • NKG 80-50-315/321 AA1F2BESBAQEUW1 — 99118722
    • NKG 80-50-315/321 AA1F2LESBQQEUW1 — 99120694
    • NKG 80-50-315/344 A1F2AE-SBAQE — 98317397
    • NKG 80-50-315/344 A2F2AE-SBAQE — 98319712
    • NKG 80-50-315/344 AA1F2SESBQQENW3 — 97530532
    • NKG 80-50-315/344 AA2F2KESBQQENW3 — 93408282
    • NKG 100-65-315/261 AA1F2BESBAQELW3 — 97835420
    • NKG 100-65-315/261 AA1F2KESBQQELW3 — 93405691
    • NKG 100-65-315/272 AA1F2BESBAQEUW1 — 98319250
    • NKG 100-65-315/272 AA1F2BESBQQEUW1 — 93407238
    • NKG 100-65-315/282 AY1E2SESBQQEXW3 — 98496175
    • NKG 100-65-315/314 A1F2BE-SBAQE — 98319334
    • NKG 100-65-315/314 AA1F2KESBQQENW3 — 99120047
    • NKG 100-65-315/314 AH1F2CESBQQEOW3 — 99318441
    • NKG 100-65-315/315 AA1F2KESBQQE1W1 — 92722814
    • NKG 100-65-315/320 A2F2BE-SBAQE — 98320614
    • NKG 125-80-315/305 AA1F2AESBAQEOW3 — 97828317
    • NKG 125-100-315/269 A1F2BE-SBAQE — 98123812
    • NKG 125-100-315/269 AA1F2LESBQQE1W1 — 99120456
    • NKG 125-100-315/279 AA2F2AESBQQEOW3 — 93407815
    • NKG 125-100-315/301 AA1F2KESBQQELW5 — 93703185
    • NKG 125-100-315/312 A1F2BE-SBAQE — 98803840
    • NKG 125-100-315/326 AA1F2AESBAQEMW5 — 98317550
    • NKG 125-100-315/334 AA1F2BESBAQERW3 — 98319370
    • NKG 125-100-315/334 AA1F2LESBQQERW3 — 98292408
    • NKG 125-100-315/334 AA2F2AESBAQENW5 — 98319866
    • NKG 125-100-315/334 AA2F2AESBQQERW3 — 99010968
    • NKG 125-100-315/334 AW1E2CESBQQEXW3 — 98755595
    • NKG 150-125-315/262 AA1F2AESBAQE2W1 — 99118228
    • NKG 150-125-315/275 A1F2BE-SBAQE — 97895799
    • NKG 150-125-315/277 AA1F2SESBQQEYW1 — 97640376
    • NKG 150-125-315/280 AA1F2AESBAQEPW3 — 99209113
    • NKG 150-125-315/297 AA2F2AESBAQEYW1 — 97830344
    • NKG 150-125-315/302 A1F2BE-SBAQE — 99101452
    • NKG 150-125-315/308 AA1F2AESBAQESW3 — 99382813
    • NKG 150-125-315/313 A1F2BE-SBQQE — 98820083
    • NKG 150-125-315/317 A1F2BE-SBAQE — 98279707
    • NKG 150-125-315/336 A1F2BE-SBQQE — 99283305
    • NKG 200-150-315/288 Y1F2BE-SBAQE — 98667741
    • NKG 200-150-315/305 AHA2F2AESBQQEOW5 — 93671147
    • NKG 200-150-315/320 A1F2BE-SBQQE — 99295945

    NKGE — Published Model References

    • NKGE 65-40-315/283 AA1F2AESBAQEJWA — 99097030
    • NKGE 65-40-315/318 AA2F2LESBQQESW1 — 93037832
    • NKGE 80-50-315/277 AA2F2LESBQQEKWA — 99099565
    • NKGE 80-50-315/285 AA1F2AESBQQESW1 — 93036175
    • NKGE 100-65-315/282 AA1F2LESBQQEMWA — 99099135
    • NKGE 100-65-315/295 AA1F2KESBQQEVW1 — 93036326
    • NKGE 125-100-315/334 AIA1F2LESBQQERW3 — 92947016
    • NKGE 150-125-315/275 AA2F2KESBQQEPWA — 92970275
    • NKGE 200-150-315.2/294 AA2F2AESBQQESW3 — 93036284
    • NKGE 200-150-315/310 AIA1F2KESBQQEUW3 — 92946758

    TP — Published Model References

    • TP 80-240/4 A-F-A-BQQE-LW3 — 99123788
    • TP 80-240/4 A-F-B-BAQE-LW3 — 96108864
    • TP 80-240/4 A-F-B-BQQE-LW3 — 96108638
    • TP 80-240/4 A-F-B-BQQE-LW3 — 99123790
    • TP 80-240/4 A-F-S-BQQE-LW3 — 93454443
    • TP 80-240/4 A-F-S-BQQE-LW3 — 99966912
    • TP 80-240/4 A-J-A-BQQE-LW3 — 92566859
    • TP 80-240/4 B-F-A-BQQE-MW3 — 93094430
    • TP 80-270/4 A-F-A-BQQE-MW3 — 92648066
    • TP 80-270/4 A-F-A-DAQF-MW3 — 99408414
    • TP 80-280/4 A-F-A-BQQE-MW4 — 99595720
    • TP 80-340/4 A-F-A-BQQE-NW3 — 99697935
    • TP 80-340/4 A-J-A-BQQE-NW4 — 92505040
    • TP 80-340/4 AE-F-A-BQQE-NW3 — 99648442
    • TP 80-340/4 AE-F-B-BQQE-NW4 — 99221195
    • TP 100-140/4 A3-F-O-DAQF-LW3 — 99124174
    • TP 100-250/4 A-F-A-BQQE-NW3 — 93349673
    • TP 100-250/4 A-F-B-BQQE-NW3 — 96109344
    • TP 100-250/4 A-F-S-BQQE-NW3 — 99057683
    • TP 100-250/4 A-F-S-BQQE-NW3 — 99205750
    • TP 100-250/4 B-F-B-BQQE-OW3 — 99944034
    • TP 100-285/4 A-F-R-BQQE-OW3 — 93348805
    • TP 100-330/4 A-F-A-BAQE-OW3 — 96109040
    • TP 100-330/4 B-F-A-BQQE-PW3 — 99775685
    • TP 100-365/4 A-F-R-BQQE-QW3 — 93280275
    • TP 100-375/4 A-F-R-BQQE-QW3 — 93280288
    • TP 100-410/4 A3-J-O-DQQE-QW3 — 99087678
    • TP 100-410/4 AE-F-B-BQQE-QW3 — 92619329
    • TP 100-470/4 A-F-A-BAQE-RW4 — 92698450
    • TP 100-470/4 A-F-A-BQQE-RW4 — 96111086
    • TP 100-650/2 A3-F-O-DAQF-UW1 — 92534886
    • TP 100-800/2 A3-F-O-DQQE-VW1 — 99798013
    • TP 100-1040/2 A3-F-Y-DQQE-1W1 — 99123290
    • TP 125-100/6 A-F-A-DAQF-KX5 — 99173377
    • TP 125-150/4 A3-F-O-DQQE-MW3 — 99087300
    • TP 125-190/4 A-F-A-BAQE-NW3 — 99123873
    • TP 125-190/4 A-F-A-BQQE-NW3 — 93395061
    • TP 125-230/4 A-F-A-BQQE-OW3 — 98743685
    • TP 125-230/4 A-F-A-BQQE-OX3 — 99599167
    • TP 125-230/4 A-J-A-BQQE-OW3 — 98840425
    • TP 125-300/4 A3-F-O-DQQE-PW3 — 98736529
    • TP 125-300/4 A3-F-Y-DAQF-PW3 — 98736655
    • TP 125-300/4 A3-F-Y-DAQF-PW3 — 99720955
    • TP 125-300/4 A3-F-Y-DQQE-PW3 — 99124231
    • TP 125-300/4 A3-J-Y-DQQE-PW3 — 98934626
    • TP 125-300/4 A-F-A-BAQE-PW3 — 98742583
    • TP 125-300/4 A-F-A-BAQE-PW3 — 98742586
    • TP 125-300/4 A-F-A-BQQE-PW3 — 93349731
    • TP 125-300/4 A-F-A-BQQE-PW3 — 98742584
    • TP 125-300/4 A-F-B-BAQE-PW3 — 99406079
    • TP 125-320/4 A-J-A-BQQE — 98993940
    • TP 125-340/4 A3-F-O-DAQF-QW3 — 98736587
    • TP 125-340/4 A-F-B-BQQE-QW3 — 98742566
    • TP 125-340/4 A-F-S-BQQE-QW3 — 93125541
    • TP 125-400/4 A3-F-O-DAQF-RW3 — 98736586
    • TP 125-400/4 A3-F-Y-DAQF-RW3 — 98736628
    • TP 125-400/4 A3-F-Y-DQQE-RW3 — 98736544
    • TP 125-400/4 A3-F-Y-DQQE-RW3 — 98736569
    • TP 125-400/4 A3-F-Y-DQQE-RW3 — 99124239
    • TP 125-400/4 A3-J-O-DAQF-RW3 — 98934592
    • TP 125-400/4 A-F-A-BQQE-RW3 — 98742536
    • TP 125-400/4 A-F-A-BQQE-RW3 — 99889494
    • TP 125-400/4 A-F-B-BAQE-RW3 — 98742541
    • TP 125-400/4 A-F-B-BAQE-RW3 — 99123891
    • TP 125-400/4 A-F-S-BQQE-RW3 — 92984954
    • TP 125-400/4 A-J-B-BQQE-RW3 — 98840695
    • TP 125-580/4 A3-F-O-DQQE-UW4 — 99087097
    • TP 150-260/4 A3-F-O-DQQE-PW3 — 98736537
    • TP 150-260/4 A-F-A-BAQE-PW3 — 96306003
    • TP 150-260/4 AE-F-B-BAQE-PW3 — 92515935
    • TP 150-280/4 A-F-A-BAQE-QW3 — 96306082
    • TP 150-280/4 A-F-A-BAQE-QW3 — 98858521
    • TP 150-280/4 A-F-A-BQQE-QW3 — 92515423
    • TP 150-280/4 A-F-A-BQQE-QW3 — 93426798
    • TP 150-280/4 A-F-A-DAQF-QW3 — 98070464
    • TP 150-340/4 A-F-A-BBQE-RW3 — 99414013
    • TP 150-340/4 A-F-S-BAQE-RW3 — 99342261
    • TP 150-340/4 AE-F-A-DAQF-RW3 — 93464389
    • TP 150-360/4 A3-F-O-DQQE-RW4 — 99596014
    • TP 150-390/4 A3-F-O-DAQF-SW3 — 98736594
    • TP 150-390/4 A-F-A-BAQE-SW3 — 99724877
    • TP 150-390/4 A-F-S-BAQE-SW3 — 99167008
    • TP 150-400/4 AE-F-A-BAQE-SW4 — 98409074
    • TP 200-270/4 A3-F-Y-DAQF-TW3 — 98736650
    • TP 200-270/4 A3-F-Y-DQQE-TW3 — 99124397
    • TP 200-270/4 A-F-S-BAQE-TW3 — 99342262
    • TP 200-270/4 A-F-S-BQQE-TW3 — 98643928
    • TP 200-320/4 A-F-A-BQQE-UW3 — 98858539
    • TP 200-320/4 AE-F-A-BAQE-UW3 — 98795967
    • TP 200-410/4 A-F-A-BQQE-VW3 — 92567910
    • TP 200-410/4 A-F-S-BAQE-VW3 — 98401400
    • TP 200-440/4 A-F-A-GQQE — 96306965
    • TP 200-500/4 A-F-A-BQQE-1W4 — 93448158

    TPE — Published Model References

    • TPE 80-230/4 A-F-B-BAQE-LWA — 99113837
    • TPE 80-230/4 A-F-B-BQQE-LWA — 99113869
    • TPE 80-240/4 A-F-A-DAQF-LWA — 99278913
    • TPE 80-240/4 S-A-F-S-BQQE-LWA — 92631717
    • TPE 80-270/4 A-F-A-BQQE-MWA — 99113701
    • TPE 80-270/4 A-F-B-BQQE-MWA — 99113747
    • TPE 80-270/4 S-AE-F-A-BQQE-MWA — 92504337
    • TPE 80-280/4 A-F-A-BAQE — 96898999
    • TPE 80-280/4 A-F-A-BAQE-MWA — 99113794
    • TPE 80-340/4 A-F-A-BAQE-NWA — 92952423
    • TPE 80-340/4 A-F-A-BQQE-NW3 — 96110190
    • TPE 80-340/4 A-F-B-BQQE-NWA — 92952056
    • TPE 80-410/4 A-F-B-BAQE-OWA — 92952433
    • TPE 100-140/4 A3-F-O-DAQF-LWA — 93149691
    • TPE 100-140/4 A3-F-Y-DQQE-LWA — 99114263
    • TPE 100-200/4 S-A-F-A-BQQE-MWA — 99114808
    • TPE 100-250/4 A-F-A-BQQE-NWA — 93110303
    • TPE 100-330/4 A3-F-Y-DQQE-OWA — 92952147
    • TPE 100-370/4 AE-F-A-BQQE-PWA — 93029726
    • TPE 100-370/4 NC-A-F-A-BQQE-PW3 — 92600361
    • TPE 100-370/4 NC-A-F-A-BQQE-PW3 — 92600490
    • TPE 100-370/4 S-A-F-A-BQQE-PX3 — 96276058
    • TPE 100-370/4 SC-A-F-A-BAQE-PW3 — 92600553
    • TPE 100-370/4 SC-A-F-A-BQQE-PW3 — 92600457
    • TPE 100-370/4 SC-A-F-A-BQQE-PW3 — 92600554
    • TPE 100-410/4 A-F-A-BQQE-QWA — 93110306
    • TPE 100-410/4 A-F-B-BQQE-QWA — 92952616
    • TPE 100-410/4 NC-A-F-A-BQQE-QW3 — 99473964
    • TPE 100-410/4 SC-A-F-A-BAQE-QW3 — 99474581
    • TPE 100-410/4 SC-A-F-A-BQQE-QW3 — 99474543
    • TPE 100-530/2 NC-A3-F-O-DAQF-TW1 — 99473967
    • TPE 100-530/2 NC-A3-F-Y-DQQE-TW1 — 99474435
    • TPE 100-650/2 NC-A3-F-O-DQQE-UW1 — 99474369
    • TPE 100-800/2 NC-A3-F-Y-DAQF-VW1 — 93375257
    • TPE 125-150/4 A3-F-O-DAQF — 99087363
    • TPE 125-150/4 A3-F-O-DQQE-MWA — 99114260
    • TPE 125-150/4 A3-F-Y-DAQF — 99087373
    • TPE 125-150/4 A3-F-Y-DAQF-MWA — 99114276
    • TPE 125-190/4 A3-F-Y-DAQF-NWA — 92952268
    • TPE 125-190/4 A-F-B-BQQE-NWA — 92952263
    • TPE 125-230/4 A-F-B-BAQE-OWA — 92952274
    • TPE 125-300/4 NC-A-F-B-BQQE-PW3 — 92600367
    • TPE 125-300/4 S-A-F-B-BQQE-PX3 — 99583114
    • TPE 125-300/4 SC-A-F-A-BAQE-PW3 — 92600459
    • TPE 125-300/4 SC-A-F-A-BQQE-PW3 — 92600556
    • TPE 125-340/4 A-F-A-BAQE-QWA — 92952608
    • TPE 125-340/4 NC-A-F-B-BAQE-QW3 — 99474304
    • TPE 125-340/4 NC-A-F-B-BQQE-QW3 — 99474053
    • TPE 125-340/4 NC-A-F-B-BQQE-QW3 — 99474344
    • TPE 125-340/4 SC-A-F-A-BQQE-QW3 — 99474588
    • TPE 125-400/4 NC-A-F-A-BQQE-RW3 — 92843559
    • TPE 125-400/4 NC-A-F-B-BAQE-RW3 — 99474305
    • TPE 125-400/4 NC-A-F-B-BQQE-RW3 — 92843633
    • TPE 125-400/4 SC-A-F-A-BAQE-RW3 — 99474552
    • TPE 125-480/4 SC-A-F-A-BQQE-SW4 — 93643112
    • TPE 150-260/4 A-F-A-BAQE — 98301727
    • TPE 150-260/4 NC-A3-F-O-DQQE-PW3 — 92600530
    • TPE 150-260/4 NC-A3-F-Y-DQQE-PW3 — 92600430
    • TPE 150-260/4 NC-A-F-B-BQQE-PW3 — 92600408
    • TPE 150-260/4 SC-A-F-A-BAQE-PW3 — 92600570
    • TPE 150-280/4 A3-F-O-DAQF-QWA — 92958348
    • TPE 150-280/4 A-F-A-BAQE-QWA — 92953056
    • TPE 150-280/4 AE-F-B-BQQE-QWA — 93208285
    • TPE 150-280/4 NC-A3-F-O-DQQE-QW3 — 99474373
    • TPE 150-280/4 S-A-F-S-BQQE-QWA — 93631032
    • TPE 150-340/4 NC-A-F-B-BAQE-RW3 — 92843610
    • TPE 150-340/4 NC-A-F-B-BAQE-RW3 — 99474308
    • TPE 150-340/4 NC-A-F-B-BQQE-RW3 — 92843635
    • TPE 150-340/4 NC-A-F-B-BQQE-RW3 — 99474056
    • TPE 150-390/4 NC-A3-F-O-DAQF-SW3 — 92843585
    • TPE 200-180/4 A-F-A-BAQE — 96306130
    • TPE 200-270/4 NC-A3-F-O-DAQF-TW3 — 92843590
    • TPE 200-270/4 NC-A-F-A-BQQE-TW3 — 99473955
    • TPE 200-270/4 NC-A-F-B-BAQE-TW3 — 92843616
    • TPE 200-320/4 NC-A3-F-Y-DQQE-UW3 — 92843685
    • TPE 200-320/4 NC-A3-F-Y-DQQE-UW3 — 99474450
    • TPE 200-320/4 NC-A-F-A-BAQE-UW3 — 92843511
    • TPE 200-320/4 NC-A-F-A-BAQE-UW3 — 99474244
    • TPE 200-320/4 SC-A-F-A-BQQE-UW3 — 92843840
    • TPE 200-410/4 NC-A3-F-O-DQQE-VW3 — 93375355

    TPD — Published Model References

    • TPD 80-230/4 A-F-B-BAQE-LW4 — 96111465
    • TPD 80-240/4 A-F-A-BQQE-LW3 — 96108894
    • TPD 80-240/4 A-F-B-BQQE-LW3 — 96108694
    • TPD 80-240/4 A-F-B-BQQE-LW3 — 96108918
    • TPD 80-270/4 A-F-A-BQQE-MW3 — 96108663
    • TPD 80-270/4 A-F-A-GQQE — 96108655
    • TPD 80-270/4 A-F-B-BQQE-MW3 — 96108919
    • TPD 80-280/4 A-F-B-BQQE-MW4 — 96111376
    • TPD 80-340/4 A-F-A-BAQE-NW3 — 96108884
    • TPD 80-340/4 A-F-A-BQQE-NW3 — 93426310
    • TPD 80-340/4 A-F-A-BQQE-NW3 — 96108664
    • TPD 80-340/4 A-F-B-BAQE-NW3 — 96108908
    • TPD 80-340/4 A-F-B-BQQE-NW3 — 96108696
    • TPD 80-340/4 A-F-B-BQQE-NW3 — 96108920
    • TPD 80-460/4 A-F-A-BQQE-PW4 — 96111460
    • TPD 100-200/4 A-F-A-BQQE-MW3 — 93426654
    • TPD 100-200/4 A-F-B-BQQE-MW3 — 96109168
    • TPD 100-200/4 AE-F-B-BAQE-MW3 — 92614040
    • TPD 100-240/4 A-F-A-BQQE-NW4 — 96111562
    • TPD 100-250/4 A-F-A-BAQE-NW3 — 96109353
    • TPD 100-250/4 A-F-A-BQQE-NW3 — 93425951
    • TPD 100-250/4 A-F-B-BAQE-NW3 — 96109389
    • TPD 100-250/4 A-F-B-BQQE-NW3 — 96109169
    • TPD 100-250/4 A-F-B-BQQE-NW3 — 96109407
    • TPD 100-330/4 A-F-B-BQQE-OW3 — 96109408
    • TPD 100-370/4 A-F-A-BAQE-PW3 — 96109111
    • TPD 100-370/4 A-F-B-BQQE-PW3 — 96109171
    • TPD 100-390/4 A-F-B-BQQE-QW4 — 96111703
    • TPD 100-410/4 A-F-A-BQQE-QW3 — 96109374
    • TPD 100-410/4 A-F-B-BQQE-QW3 — 96109172
    • TPD 100-470/4 A-F-B-BAQE-RW4 — 96111576
    • TPD 125-80/6 A-F-A-GQQE — 98743806
    • TPD 125-80/6 A-F-B-BQQE-JW5 — 98743814
    • TPD 125-100/6 A-F-A-BQQE-KW5 — 98743781
    • TPD 125-130/6 A-F-A-BAQE-LW5 — 98742661
    • TPD 125-190/4 A-F-A-BQQE-NW3 — 98858683
    • TPD 125-190/4 A-F-B-BAQE-NW3 — 98743744
    • TPD 125-300/4 A-F-B-BQQE-PW3 — 98742605
    • TPD 125-330/4 A-F-B-BQQE — 98742767
    • TPD 125-330/4 A-F-B-GQQE — 98742768
    • TPD 125-340/4 A-F-A-BAQE-QW3 — 98858626
    • TPD 125-340/4 A-F-A-BQQE-QW3 — 93426620
    • TPD 125-400/4 A-F-A-BAQE-RW3 — 98742547
    • TPD 125-400/4 A-F-A-BAQE-RW3 — 98858620
    • TPD 125-400/4 A-F-A-BQQE-RW3 — 98858621
    • TPD 125-480/4 A-F-A-BQQE-SW4 — 98742689
    • TPD 125-480/4 A-F-B-BAQE-SW4 — 98742694
    • TPD 125-480/4 A-F-B-GQQE — 98742696

    TPED — Published Model References

    • TPED 80-240/4 A-F-A-BAQE-LWA — 99114552
    • TPED 80-240/4 A-F-B-BQQE-LWA — 99114794
    • TPED 80-240/4 S-A-F-A-BAQE-LWA — 99114738
    • TPED 80-240/4 S-A-F-A-BQQE-LWA — 99132856
    • TPED 80-270/4 A-F-A-BAQE-MWA — 99114553
    • TPED 80-270/4 A-F-A-BQQE-MWA — 99114629
    • TPED 80-270/4 A-F-A-GQQE — 96898994
    • TPED 80-270/4 S-A-F-A-BQQE-MWA — 99132857
    • TPED 80-340/4 A-F-A-BQQE-NWA — 92958042
    • TPED 100-200/4 A-F-A-BQQE — 96899013
    • TPED 100-200/4 A-F-A-BQQE-MWA — 99114635
    • TPED 100-200/4 AE-F-A-BQQE-MWA — 92820285
    • TPED 100-200/4 S-A-F-A-BQQE-MWA — 99132863
    • TPED 100-250/4 A-F-A-BAQE-NWA — 92958943
    • TPED 100-330/4 A-F-A-BQQE-OWA — 92958955
    • TPED 100-330/4 S-A-F-A-BQQE-OWA — 92958959
    • TPED 100-370/4 A-F-A-BAQE-PWA — 92959058
    • TPED 100-370/4 A-F-A-BQQE-PWA — 92959059
    • TPED 100-410/4 A-F-A-BAQE — 96110456
    • TPED 100-410/4 A-F-A-BAQE-QWA — 92959106
    • TPED 125-190/4 A-F-A-BAQE-NW3 — 98743759
    • TPED 125-190/4 A-F-A-BAQE-NWA — 92958974
    • TPED 125-190/4 S-A-F-A-BAQE-NWA — 92958994
    • TPED 125-230/4 A-F-A-BAQE-OWA — 92958998
    • TPED 125-230/4 A-F-A-BQQE-OWA — 92959000
    • TPED 125-230/4 A-F-B-BQQE-OWA — 92959003
    • TPED 125-230/4 S-A-F-A-BAQE-OWA — 92959005
    • TPED 125-300/4 A-F-A-BQQE-PWA — 92959081
    • TPED 125-300/4 A-F-B-BQQE-PWA — 92959086
    • TPED 125-300/4 S-A-F-A-BQQE-PWA — 92959093
    • TPED 125-340/4 A-F-A-BAQE-QWA — 92959200
    • TPED 125-340/4 A-F-B-BAQE-QWA — 92959205

    TPE2 and TPE3 — Published Model References

    • TPE2 100-370 N-A3-F-O-DAQF-PWA — 93338795
    • TPE2 100-370 N-A3-F-O-DQQE-PWA — 93338778
    • TPE2 125-150 N-A3-F-O-DQQE-MWA — 93338763
    • TPE2 125-300 N-A3-F-O-DQQE-PWA — 93338766
    • TPE2 150-280 N-A-F-S-BQQE-QWA — 93338953
    • TPE3 150-280 S-A-F-A-BQQE-QWA — 93338947

    Additional Confirmed References — Abbreviated Manufacturer Descriptions

    Grundfos publishes abbreviated model names for the following references. Their separate technical records confirm the shaft-seal codes shown in brackets, and their recommended-parts records include 97757675. Missing full type-code suffixes have not been inferred.

    • NB 40-315/283 (BAQE shaft seal) — 95109732
    • NB 40-315/344 (GQQE shaft seal) — 98305910
    • NB 50-315/285 (GQQE shaft seal) — 98343565
    • NB 50-315/321 (GQQE shaft seal) — 98341300
    • NB 50-315/331 (GQQE shaft seal) — 98306265
    • NB 80-315/295 (GQQE shaft seal) — 98302946
    • NB 80-315/334 (BAQE shaft seal) — 97991525
    • NB 125-315/335 (GQQE shaft seal) — 98306089
    • NBE 65-315/290 (GQQE shaft seal) — 96539991
    • NK 40-315/318 (GQQE shaft seal) — 98322864
    • NK 40-315/334 (BAQE shaft seal) — 98084329
    • NK 40-315/334 (GQQE shaft seal) — 98323735
    • NK 40-315/336 (BAQE shaft seal) — 95108127
    • NK 40-315/336 (GQQE shaft seal) — 98324026
    • NK 150-315/336 (GQQE shaft seal) — 98323453
    • NKG 80-50-315/303 (BAQE shaft seal) — 98051721

    Additional Confirmed NBS Service-Special References

    The following manufacturer service-special records also list 97757675. Their public records do not publish a complete model designation, so identification must be by the exact product number.

    • NBS service special — 93438128
    • NBS service special — 93628562

    Compatibility research checked against Grundfos manufacturer records on 21 October 2026. Every pump product number listed above was checked for the exact replacement part 97757675. Confirm suitability for the individual pump and application before fitting.

    Specification & guidance notice: Technical information and FAQ content are provided in good faith based on manufacturer literature and industry experience. Descriptions of hydraulic types and application suitability represent general guidance only and do not constitute a guarantee of performance. Actual results will depend on system design, pipework losses, media characteristics, and installation conditions. Please consult the manufacturer & thier documentation and satisfy yourself that the equipment is suitable for your specific application prior to purchase.

    You may also like
