Grundfos SLV 80.80.13.4.50D.C 98624692 1.3 kW 415v Submersible Waste Pump Dn80 #3663

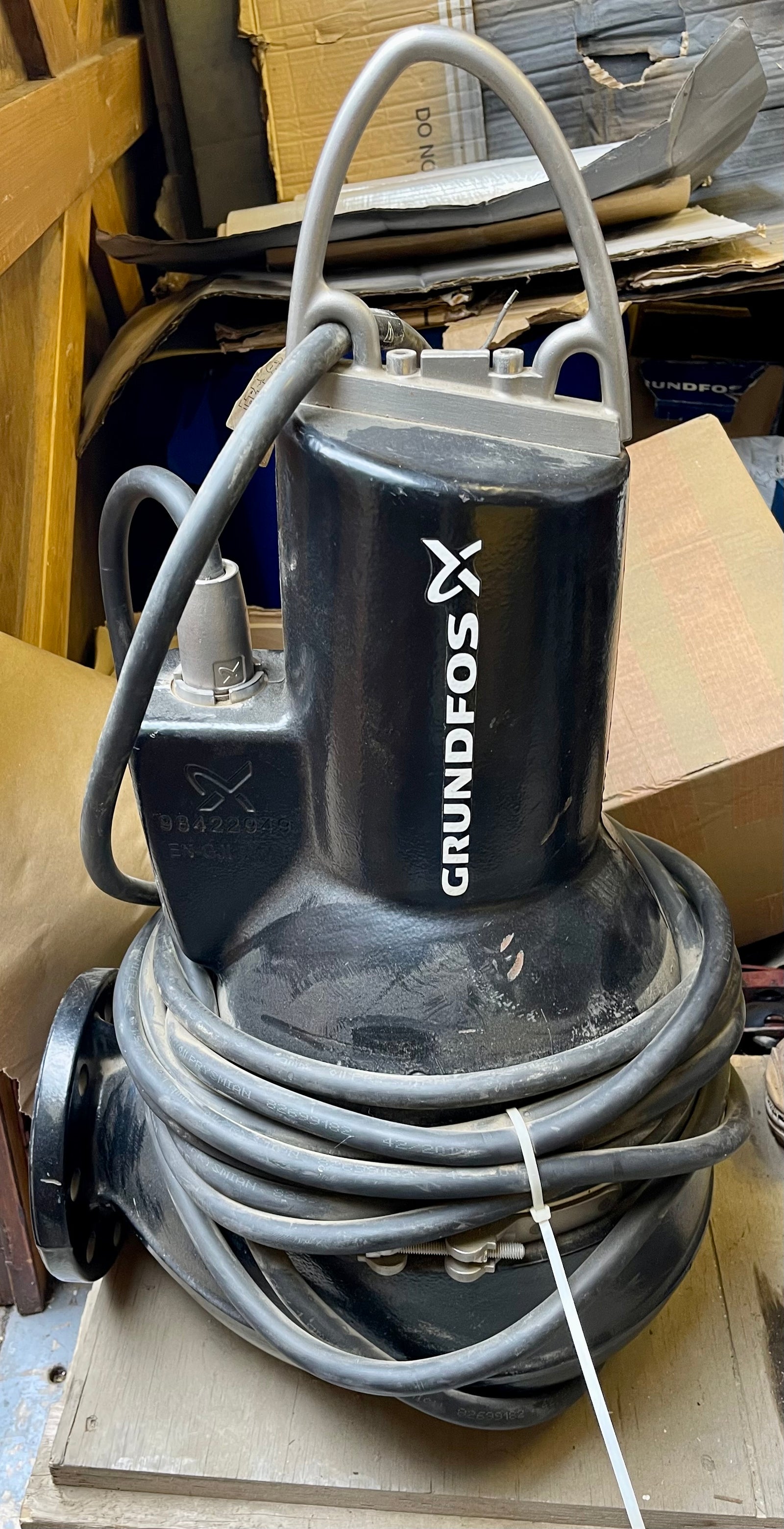

Grundfos SLV.80.80.13.4.50D.C (98624692) – 1.3kW 415V Submersible Wastewater Pump (DN80) #3663

This listing is for a Grundfos SLV sewage / wastewater pump with a SuperVortex (free-flow) impeller and a DN80 flanged outlet. The SLV (SuperVortex) design is typically selected for wastewater duties where clog resistance and handling of fibres, stringy material or higher solids loads are priorities.

• Impeller type: SLV with SuperVortex (free-flow) hydraulic
• Discharge connection: DN80 flanged outlet (standard flange interface for compatible fittings and pipework)
• Protection & monitoring: thermal switches in the motor windings
• Variant: standard non-EX version

Need help confirming suitability?
Call us on 01803 220416 for technical advice.

Manufacturer product page

Full technical details can be found on the official Grundfos product page:
View Grundfos SLV.80.80.13.4.50D.C (98624692) – Performance curves

Key specifications (summary)

• Model: SLV.80.80.13.4.50D.C
• Grundfos product number: 98624692
• Rated motor output (P2): 1.3 kW
• Electrical supply / starting: 3 × 380–415 V, 50 Hz, direct-on-line (DOL)
• Motor: 4-pole
• Outlet: DN80
• Maximum installation depth: 17 m
• Generation: C

Operating limits (summary)

• Operating mode: intended for submerged wastewater duty
• Liquid temperature: 0–40 °C
• pH range: 6.5–14 for standard materials; for fluctuating pH values, 4–14 is stated as acceptable guidance

Applications & selection guidance (SLV vs SL1)

Grundfos provides guidance when choosing between SLV (SuperVortex) and SL1 (S tube®). In general, SLV is typically preferred where clog tolerance is the priority — especially in wastewater with higher solids, fibres or stringy material.

• High solids / fibre content duties where clog resistance is needed
• Suitability for stringy, gassy or abrasive wastewater

Construction & protection features

• Cartridge seal concept: service-oriented seal arrangement designed for practical maintenance
• Thermal protection: thermal switches in the stator windings
• Corrosion protection: protective coating on cast iron components
• Accessories: supplied separately and are not factory-fitted

Delivery & Shipping

• UK and international delivery available
• Next working day dispatch is often possible
• If delivery is time-critical, please call to confirm availability

Frequently Asked Questions

What does the model number mean?

• SL – sewage / wastewater pump range
• V – SuperVortex (free-flow) impeller version (SLV)
• 80 – solids/fibre handling class
• 80 – DN80 outlet
• 13 – 1.3 kW motor output
• 4 – 4-pole motor
• 5 – 50 Hz
• 0D – 3 × 380–415 V direct-on-line starting
• C – generation

What discharge connection does this pump have?

This pump is supplied with a standard DIN DN80 flange. Because it follows the DIN standard, compatible fittings, guide claws or accessories from Grundfos or other manufacturers can be connected to the outlet. This often allows connection into existing systems originally using pumps from brands such as Flygt, Lowara, Sulzer, Wilo, KSB and other manufacturers, subject to site configuration.

Can model numbers be interchanged?

Occasionally it is possible to swap different model or part codes for alternative versions within the SL range, depending on the duty point, installation type and electrical configuration. Please call us for a recommendation before ordering if you are looking to replace a different code.

Why choose SuperVortex (SLV) instead of S tube® (SL1)?

The SuperVortex (free-flow) hydraulic is typically selected where clog resistance and handling of fibres or stringy material is needed — a good choice in wastewater with higher solids/fibre loading.

What is the maximum installation depth?

Maximum installation depth is 17 m.

Do accessories come fitted?

No. Accessories are supplied separately and are not factory-fitted.

About Our Stock

Stock code: #3663
We specialise in supplying new and unused surplus pumps. All units are inspected prior to dispatch and supplied with guarantee.
