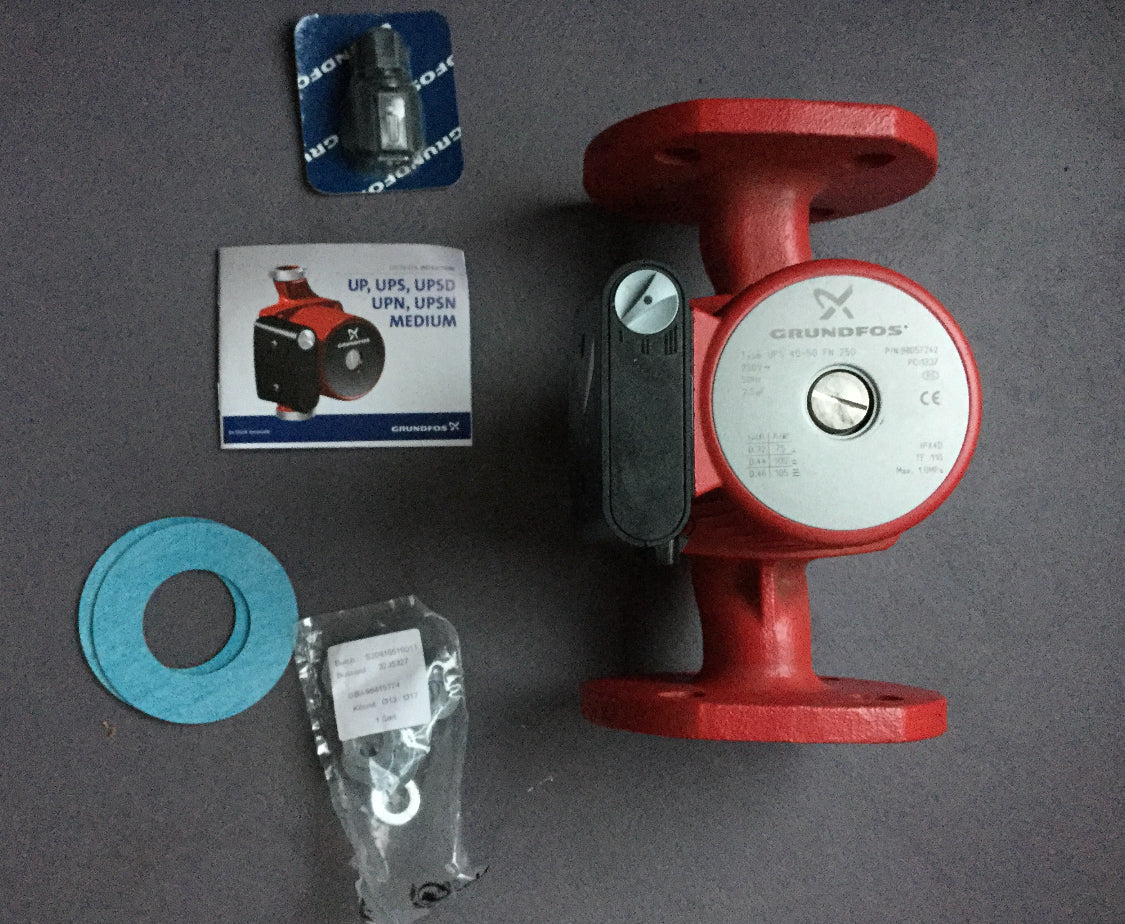

Grundfos UPS 40-80FN (250) Hot Water Service Circulator 240V FN #34
6 Month guarantee on all of our used pumps
Please call us for free advice on replacement
We also take card payment over the phone
We buy and sell new and unused pumps
Can deliver for next day if ordered before 4pm
Same day delivery possible please call for a quote
MAJORITY OF OUR PUMPS ARE NEW, UNUSED, NEVER BEEN FITTED SURPLUS STOCK
Please call us for free advice on replacement
We also take card payment over the phone
We buy and sell new and unused pumps
Can deliver for next day if ordered before 4pm
Same day delivery possible please call for a quote
MAJORITY OF OUR PUMPS ARE NEW, UNUSED, NEVER BEEN FITTED SURPLUS STOCK
WORLDWIDE DELIVERY AVAILABLE
Internationally for free we ship to:
Aland Islands, Armenia, Austria, Belarus, Belgium, Bosnia And Herzegovina, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Faroe Islands, Finland, France, Georgia, Germany, Greece, Guernsey, Hungary, Iceland, Ireland, Isle Of Man, Italy, Jersey, Latvia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Republic Of, Moldova, Republic of, Monaco, Montenegro, Netherlands, Norway, Poland, Portugal, Romania, San Marino, Serbia, Slovakia, Slovenia, Spain (50 of 52 provinces), Sweden, Switzerland
For Free under 30kg
2-3 Day shipping internationally
Condition: Brand new in box, box may be marked from storage
Specifications
| Product name: | UPS 40-80 F B 250 |
| Product No: | 52022404 |
| EAN number: | 5700390847333 |
| Price: | On request |
| Technical | |
|---|---|
| Speed no: | 3 |
| Head max: | 80 dm |
| TF class: | 110 |
| Approvals on nameplate: | CE,WRC |
| Materials | |
|---|---|
| Pump housing: | Bronze |
| Pump housing: | DIN W.-Nr. 2.1176.01 |
| Impeller: | Composite, PES/PP |
| Installation | |
|---|---|
| Amb. max at 80 dgr C liquid: | 80 °C |
| Maximum operating pressure: | 10 bar |
| Flange standard: | DIN |
| Pipe connection: | DN 40 |
| Pressure stage: | PN 6 / PN 10 |
| Port-to-port length: | 250 mm |
| Fittings: | Y |
| Liquid | |
|---|---|
| Pumped liquid: | Water |
| Liquid temperature range: | -25 .. 110 °C |
| Liquid temp: | 60 °C |
| Density: | 983.2 kg/m³ |
| Electrical data | |
|---|---|
| C run: | 5 µF |
| Power input in speed 1: | 145 W |
| Power input in speed 2: | 215 W |
| Max. power input: | 245 W |
| Mains frequency: | 50 Hz |
| Rated voltage: | 1 x 240 V |
| Current in speed 1: | 0.64 A |
| Current in speed 2: | 0.92 A |
| Current in speed 3: | 1.02 A |
| Capacitor size - run: | 5 µF |
| Enclosure class (IEC 34-5): | IP42 |
| Insulation class (IEC 85): | F |
| Motor protec: | CONTACT |
| Thermal protec: | internal |
| Controls | |
|---|---|
| Pos term box: | 9H |
| Others | |
|---|---|
| Net weight: | 8.1 kg |
| Gross weight: | 8.5 kg |
| Shipping volume: | 0.012 m³ |
