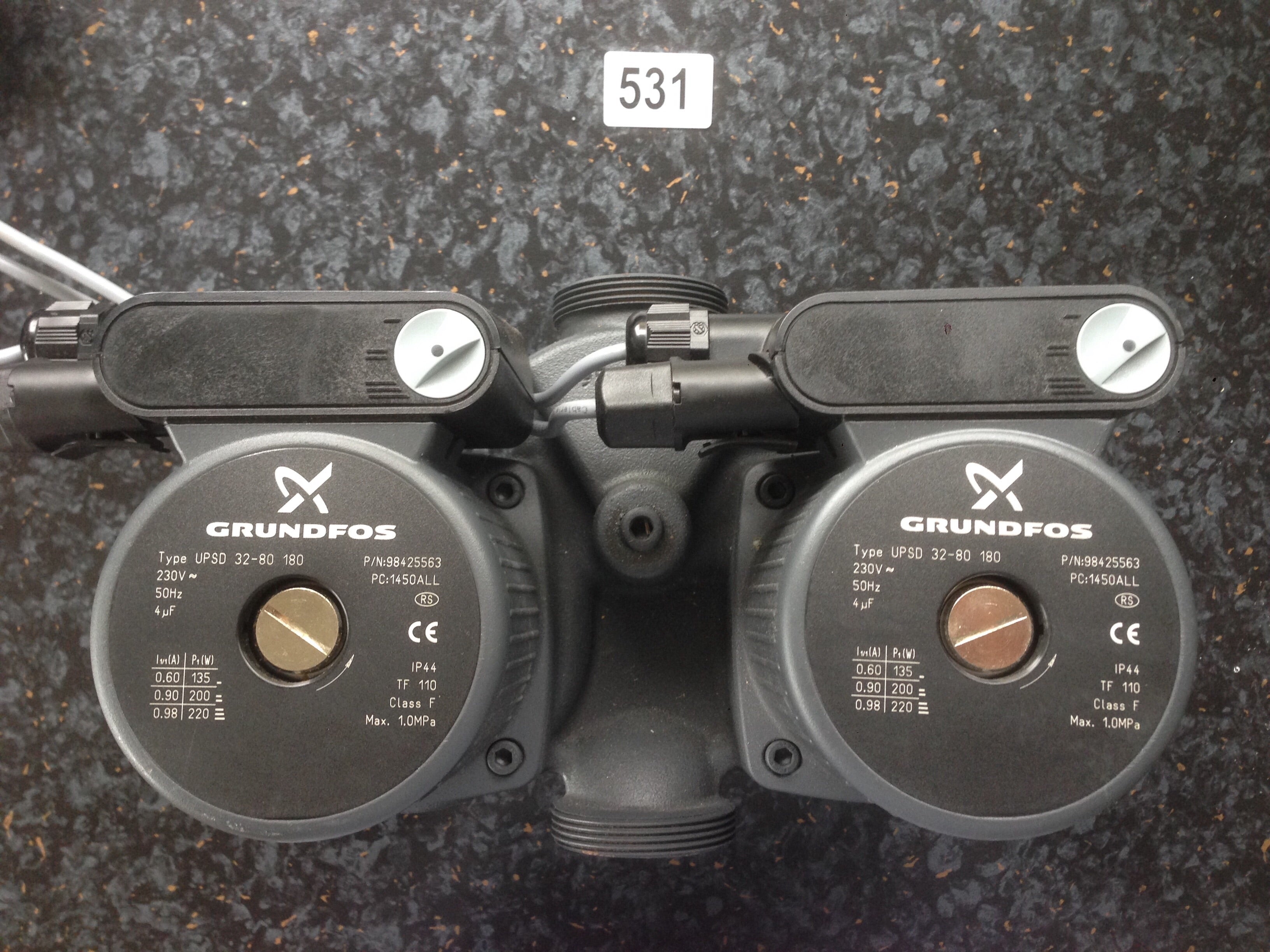

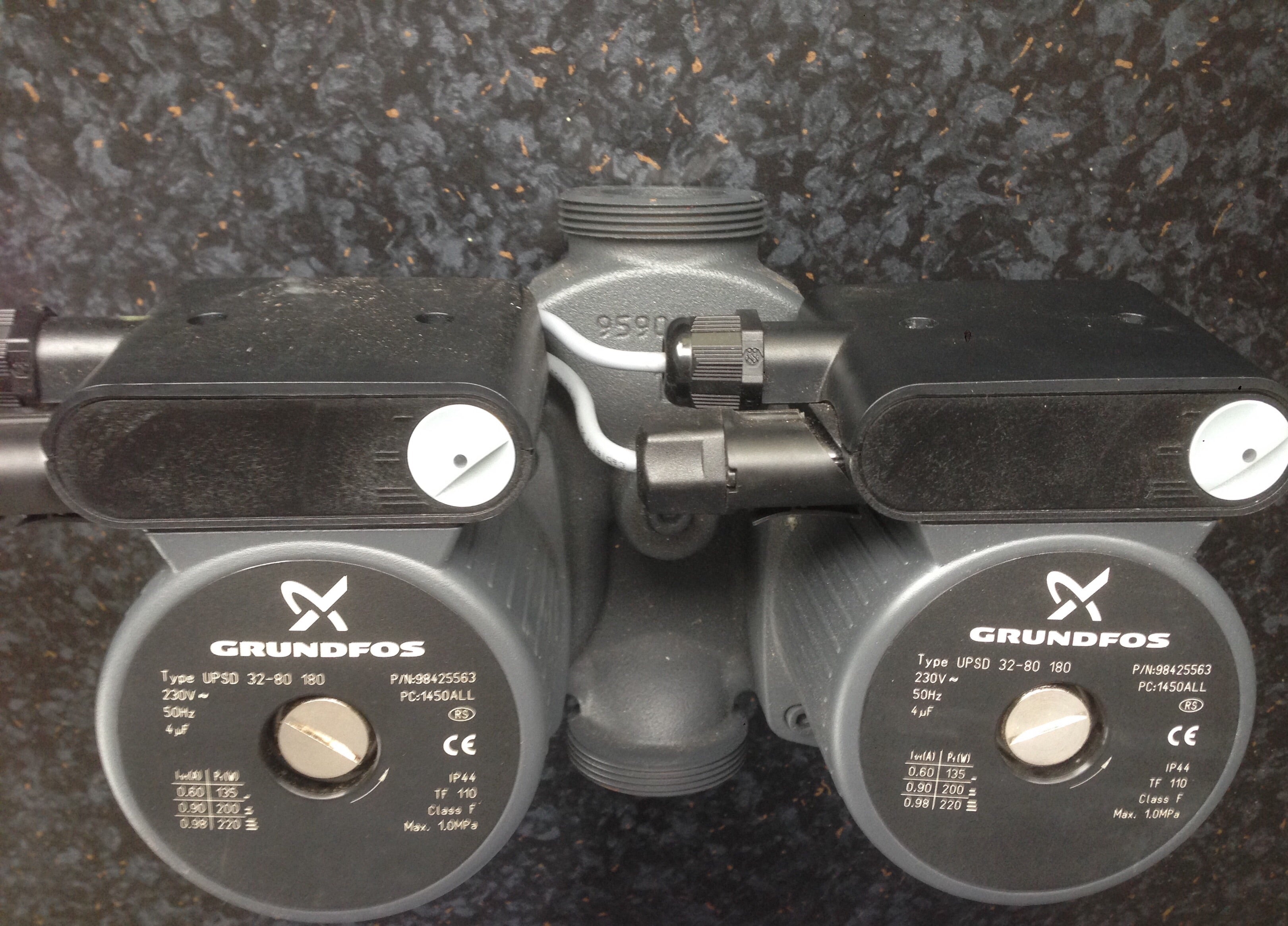

Grundfos UPSD 32-80 Commercial Circulator Pump 98425563/95906455 #531
£662.50GBP
inc VAT
Technical Information
| Shipping Weight | 10.0 kg |
6 Month guarantee on all of our used pumps
Please call us for free advice on replacement
We also take card payment over the phone
We buy and sell new and unused pumps
Can deliver for next day if ordered before 4pm
Same day delivery possible please call for a quote
MAJORITY OF OUR PUMPS ARE NEW, UNUSED, NEVER BEEN FITTED SURPLUS STOCK
Please call us for free advice on replacement
We also take card payment over the phone
We buy and sell new and unused pumps
Can deliver for next day if ordered before 4pm
Same day delivery possible please call for a quote
MAJORITY OF OUR PUMPS ARE NEW, UNUSED, NEVER BEEN FITTED SURPLUS STOCK
WORLDWIDE DELIVERY AVAILABLE
Internationally for free we ship to:
Aland Islands, Armenia, Austria, Belarus, Belgium, Bosnia And Herzegovina, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Faroe Islands, Finland, France, Georgia, Germany, Greece, Guernsey, Hungary, Iceland, Ireland, Isle Of Man, Italy, Jersey, Latvia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Republic Of, Moldova, Republic of, Monaco, Montenegro, Netherlands, Norway, Poland, Portugal, Romania, San Marino, Serbia, Slovakia, Slovenia, Spain (50 of 52 provinces), Sweden, Switzerland
For Free under 30kg
2-3 Day shipping internationally
Condition: Brand New in original box.
Two Year Guarantee on this item
Condition: Brand new, not in original box. Marked from storage.

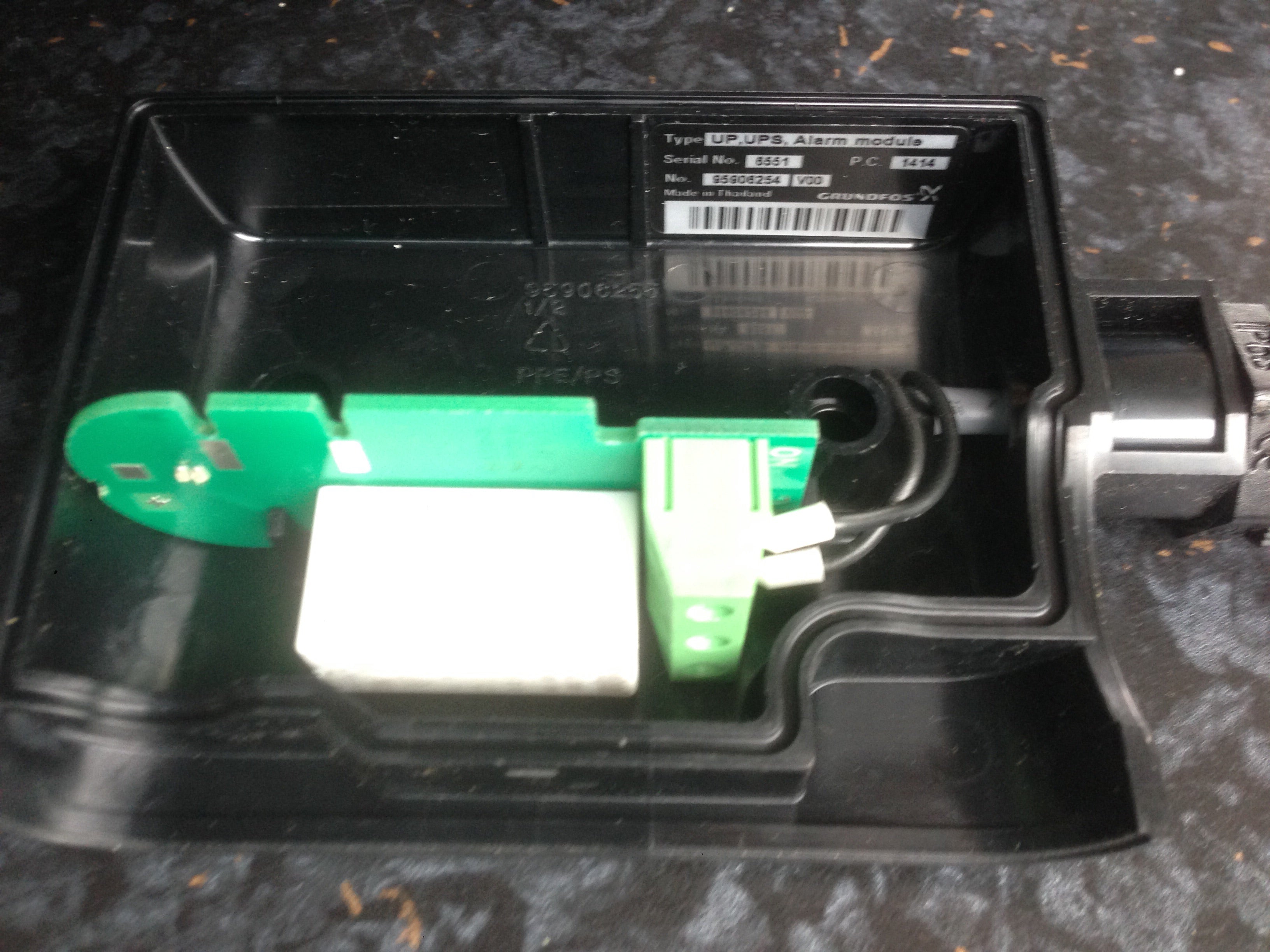

Pump is fitted with alarm relay modules, part number 95906254 which are easily removed
Specifications
Product name UPSD 32-80 180
Product No 95906455
EAN number 5700310353951
Technical
Speed no 3
Head max 80 dm
TF class 110
Materials
Pump housing Cast iron
Pump housing EN-JL1030
Pump housing ASTM 30 B
Impeller Composite, PES/PP
Installation
Amb. max at 80 dgr C liquid 40 °C
Maximum operating pressure 10 bar
Pipe connection G 2
Pressure stage PN 10
Port-to-port length 180 mm
Liquid
Pumped liquid Water
Liquid temperature range -25 .. 110 °C
Liquid temperature during operation 60 °C
Density 983.2 kg/m³
Electrical data
C run 4 µF
Power input in speed 1 135 W
Power input in speed 2 200 W
Max. power input 220 W
Mains frequency 50 Hz
Rated voltage 1 x 230 V
Current in speed 1 0.6 A
Current in speed 2 0.9 A
Current in speed 3 0.98 A
Capacitor size - run 4 µF
Enclosure class (IEC 34-5) X2D
Insulation class (IEC 85) F
Motor protec CONTACT
Thermal protec internal
Controls
Pos term box 12H
Others
Net weight 10.8 kg
Gross weight 11.3 kg
Shipping volume 0.015 m³
