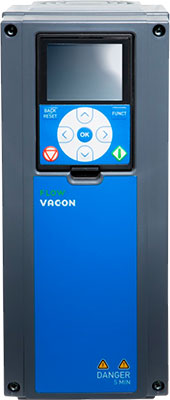

Vacon 100 Flow IP54 11kW 400V 3ph - Fan/Pump AC Inverter Drive Speed Controller VACON0100-3L-0023-5-FLOW+IP54 11Kw/23Amp 3 Phase Input / 3 Phase Output IP54
£995.00GBP
6 Month guarantee on all of our used pumps
Please call us for free advice on replacement
We also take card payment over the phone
We buy and sell new and unused pumps
Can deliver for next day if ordered before 4pm
Same day delivery possible please call for a quote
MAJORITY OF OUR PUMPS ARE NEW, UNUSED, NEVER BEEN FITTED SURPLUS STOCK
Please call us for free advice on replacement
We also take card payment over the phone
We buy and sell new and unused pumps
Can deliver for next day if ordered before 4pm
Same day delivery possible please call for a quote
MAJORITY OF OUR PUMPS ARE NEW, UNUSED, NEVER BEEN FITTED SURPLUS STOCK
WORLDWIDE DELIVERY AVAILABLE
Internationally for free we ship to:
Aland Islands, Armenia, Austria, Belarus, Belgium, Bosnia And Herzegovina, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Faroe Islands, Finland, France, Georgia, Germany, Greece, Guernsey, Hungary, Iceland, Ireland, Isle Of Man, Italy, Jersey, Latvia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Republic Of, Moldova, Republic of, Monaco, Montenegro, Netherlands, Norway, Poland, Portugal, Romania, San Marino, Serbia, Slovakia, Slovenia, Spain (50 of 52 provinces), Sweden, Switzerland
For Free under 30kg
2-3 Day shipping internationally
Two year guarantee
Please see manual here
Vacon 100 Series AC Inverter for 7.5kW (10HP) 400V 3 Ph motor in VxF or Sensorless Vector control to 16A at high overload, or 11kW (15Hp) to 23A when Fan/Pump rated. Converts fixed frequency three phase 400V input to variable frequency three phase 400V to control the speed of a standard AC Induction motor or permanent magnet synchronous motor.
Size MR5: 144mm Wide x 214mm Deep x 419mm High. IP54/NEMA Type 12
Weight: 10kg.
Overload: 150% x 60 seconds every 10 minutes, 200% x 2 seconds every 20 seconds
Speed Control Range: 0-320Hz.
Braking: Minimum 41 Ohm external resistor (not supplied) - See the Resistor options linked below or use the 'Which Resistor' button on this page.
Graphical keypad.
2 x Analogue Inputs, 6 x Digital Inputs, 1 x Analogue Output, 2 x Relay Contact set, RS485.
Input Current: [as output current]A
Input Voltage: 380-500V -10%/+10% Three Phase at 50-60Hz (± 10%)
EMC Filters: IEC EN61800-3 Category C2 1st Environment (Industrial and Domestic).
Wall mount..
Rated 40°C Ambient.
Ventilation space in above: 120mm
Ventilation space below: 60mm
Ventilation space at sides: 20mm
Heat Loss at max output: [not specified]
Mounting via 4 x 7mm diameter holes at rear on 115mm x 406mm centres.

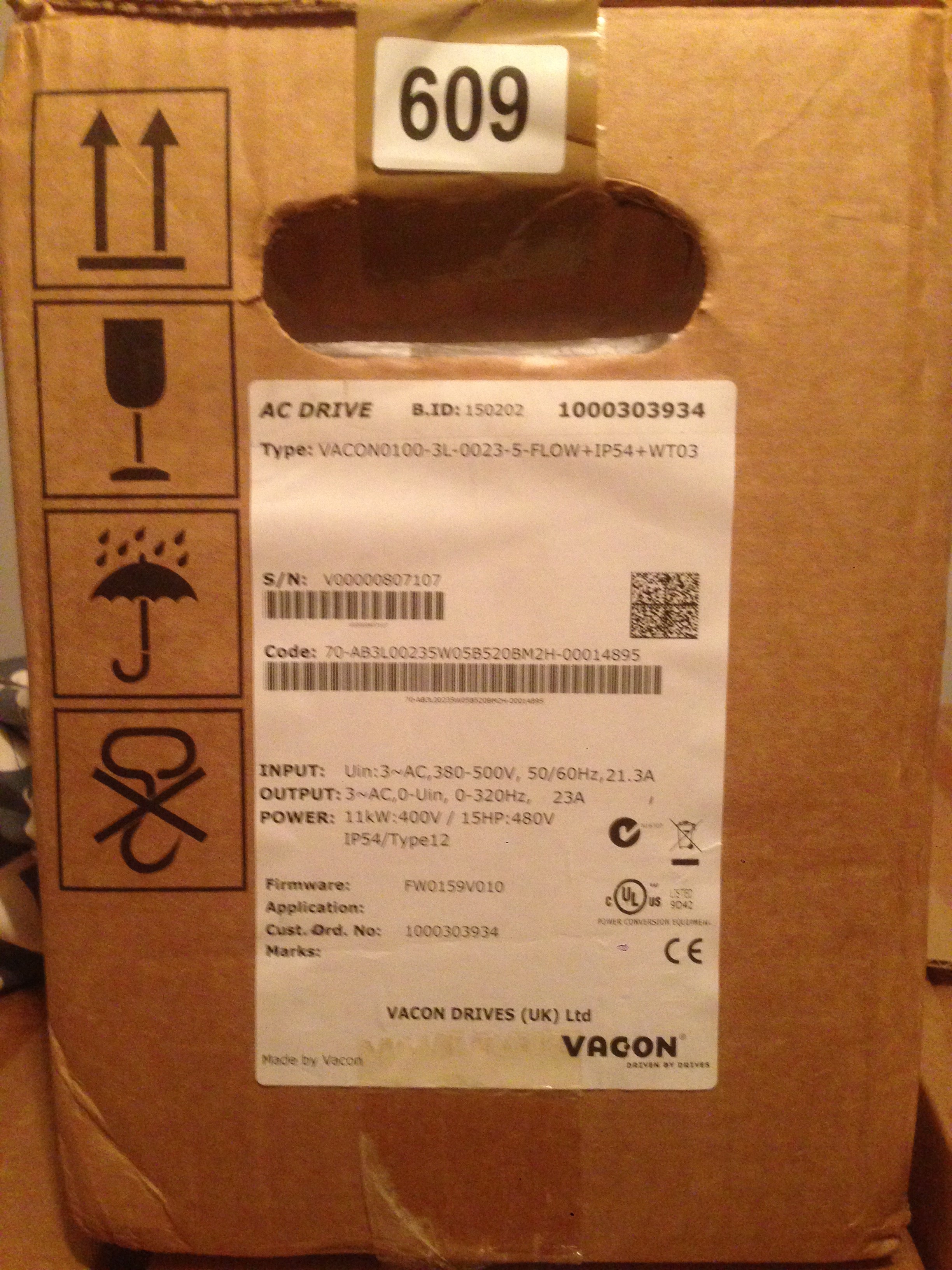

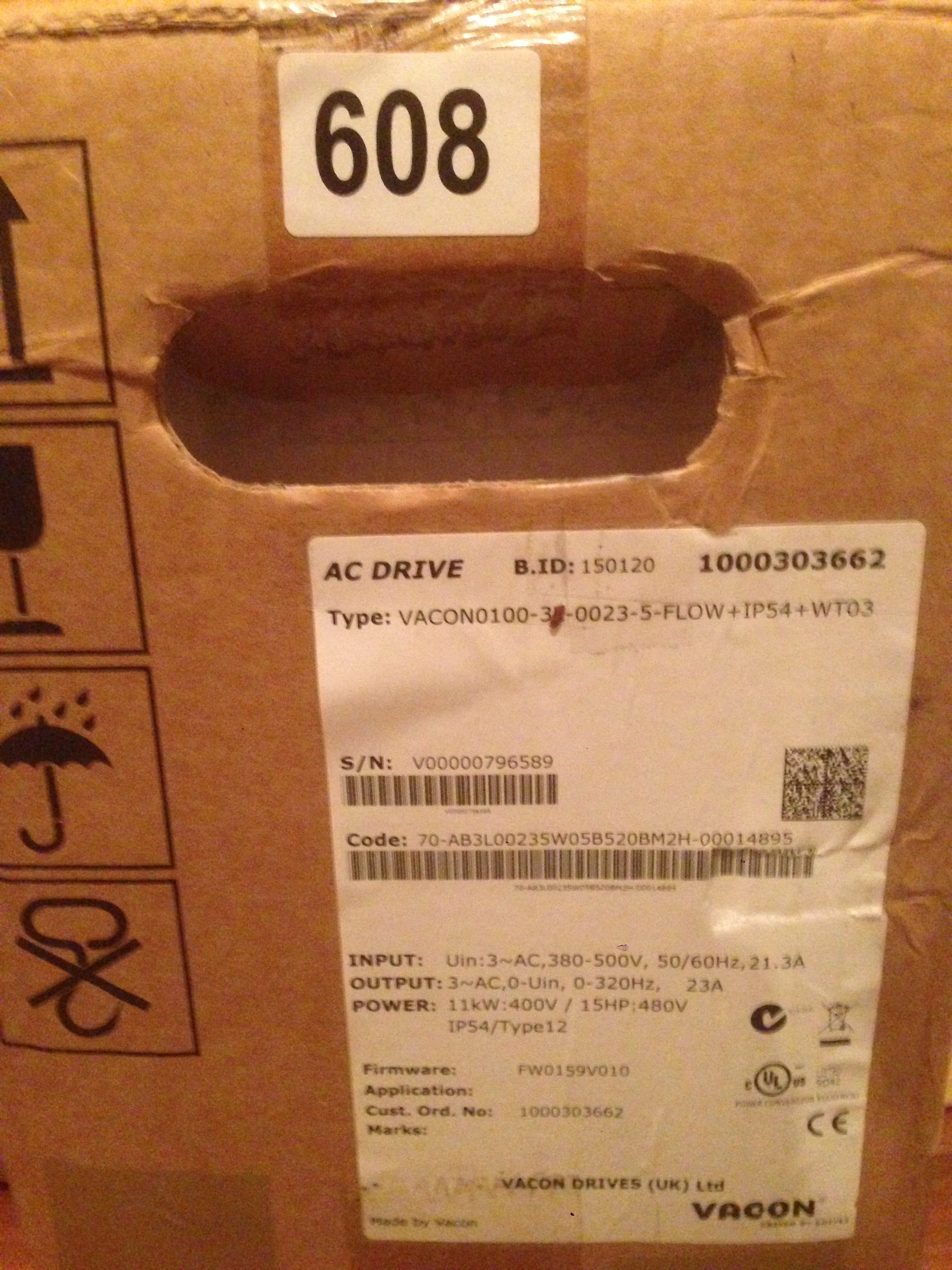

Manufacturer part number is VACON0100-3L-0023-5+IP54
Vacon 100 replaces NXS Series.
