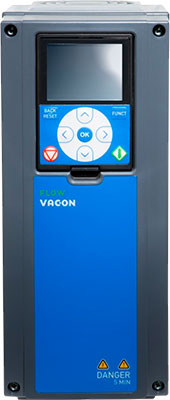

Vacon 100 Flow IP54 3kW 400V 3ph - Fan/Pump AC Inverter Drive Speed Controller VACON0100-3L-0008-5-FLOW+IP54

Vacon 100 Flow IP54 3kW 400V 3ph - Fan/Pump AC Inverter Drive Speed Controller VACON0100-3L-0008-5-FLOW+IP54


01803 220416
2 year guarantee on all of our new pumps
6 Month guarantee on all of our used pumps
Please call us for free advice on replacement
We also take card payment over the phone
We buy and sell new and unused pumps

Can deliver for next day if ordered before 4pm
Same day delivery possible please call for a quote


Internationally for free we ship to:
Aland Islands, Armenia, Austria, Belarus, Belgium, Bosnia And Herzegovina, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Faroe Islands, Finland, France, Georgia, Germany, Greece, Guernsey, Hungary, Iceland, Ireland, Isle Of Man, Italy, Jersey, Latvia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Republic Of, Moldova, Republic of, Monaco, Montenegro, Netherlands, Norway, Poland, Portugal, Romania, San Marino, Serbia, Slovakia, Slovenia, Spain (50 of 52 provinces), Sweden, Switzerland
For Free under 30kg

2-3 Day shipping internationally
Two year guarantee
Please see manual here

Vacon 100 Flow Series AC Inverter for 3kW (4HP) 400V 3 Ph Centrifugal Fan or Pump in VxF or Sensorless Vector control to 8A. Converts fixed frequency three phase 400V input to variable frequency three phase 400V to control the speed of a standard AC Induction motor or permanent magnet synchronous motor.

Pump Control Features:-
Multipump: single drive, Multifollower, Multimaster, interlocking of pumps, Anti-blocking, overpressure protection. Second PID controller, 2-Zone PID Control, Frost Protection for pump, Pressure loss compensation, Start Boost, Sleep Boosting, No demand detection, Soft filling of pipe, Dry Pump supervision, Priming pump, Jockey pump, Auto-Cleaning / Anti-ragging, Real time clock based multi-pump alternation

Fan Control Features:-
Fire Mode, PID Control, real time clock with calendar.

Size MR4: 128mm Wide x 190mm Deep x 328mm High. IP54/UL Type 12.
Weight: 6kg.

Overload: 110% x 60 seconds every 10 minutes
Speed Control Range: 0-320Hz
Braking: None

Graphical Keypad, 2 x Analogue Inputs, 6 x Digital Inputs, 1 x Analogue Output, 3 x Relay Contact set, Modbus RTU (RS485), Modbus TCP (Ethernet).
Input Current: [as output current]
Input Voltage: 380-500V ±10% Three Phase at 50-60Hz -5% +10%
EMC Filters to IEC EN61800-3 Category C2 1st and 2nd Environment (Industrial and Domestic). EMC filters can be disabled if required.

Wall mount.
Rated 40°C Ambient.
Ventilation space in above: 100mm
Ventilation space below: 50mm
Ventilation space at sides: 20mm
Heat Loss at max output: [not specified]
Mounting via 4 x 7mm diameter holes at rear on 100mm x 313mm centres.

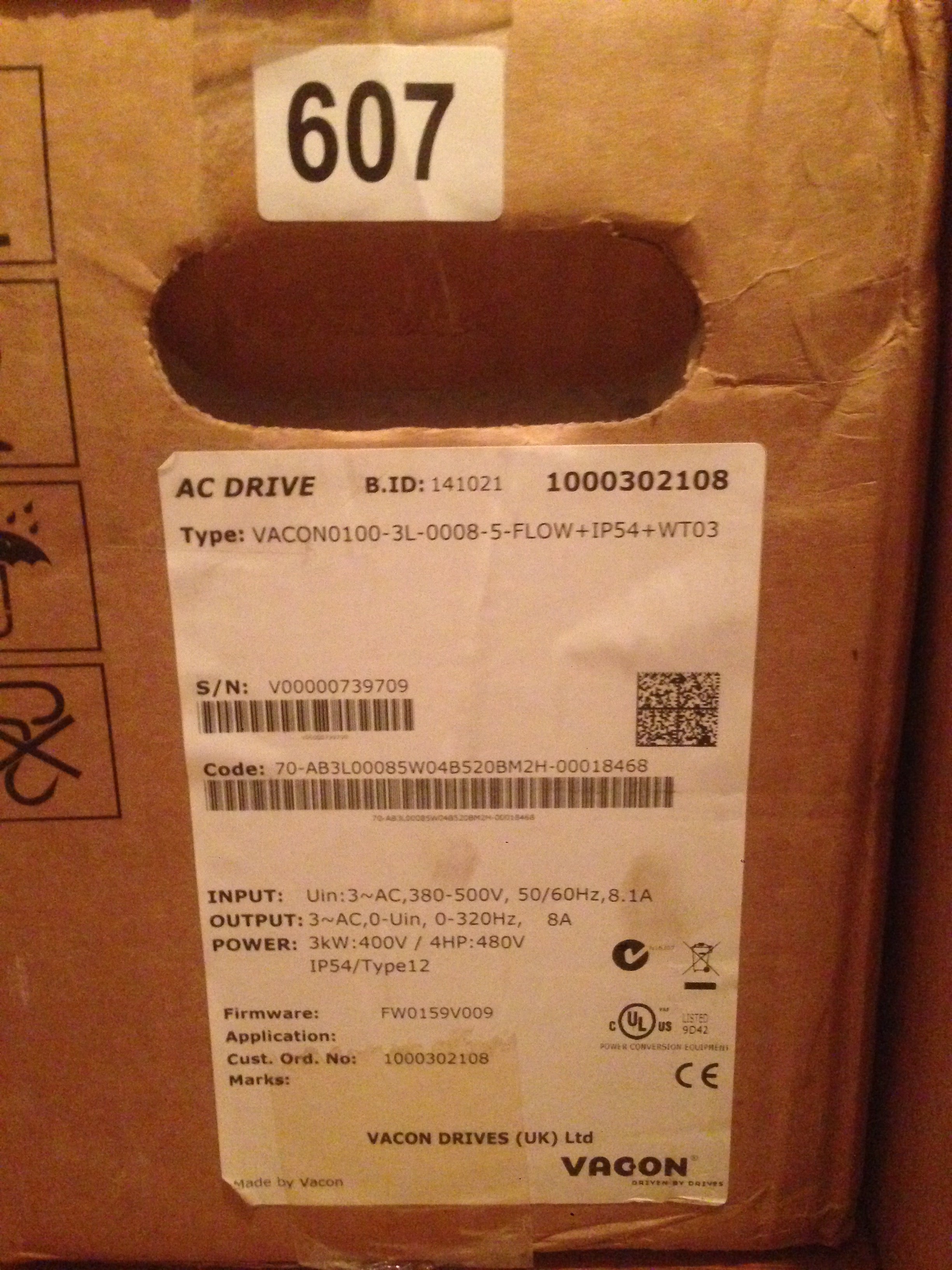

Manufacturer part number is VACON0100-3L-0008-5-FLOW+IP54
